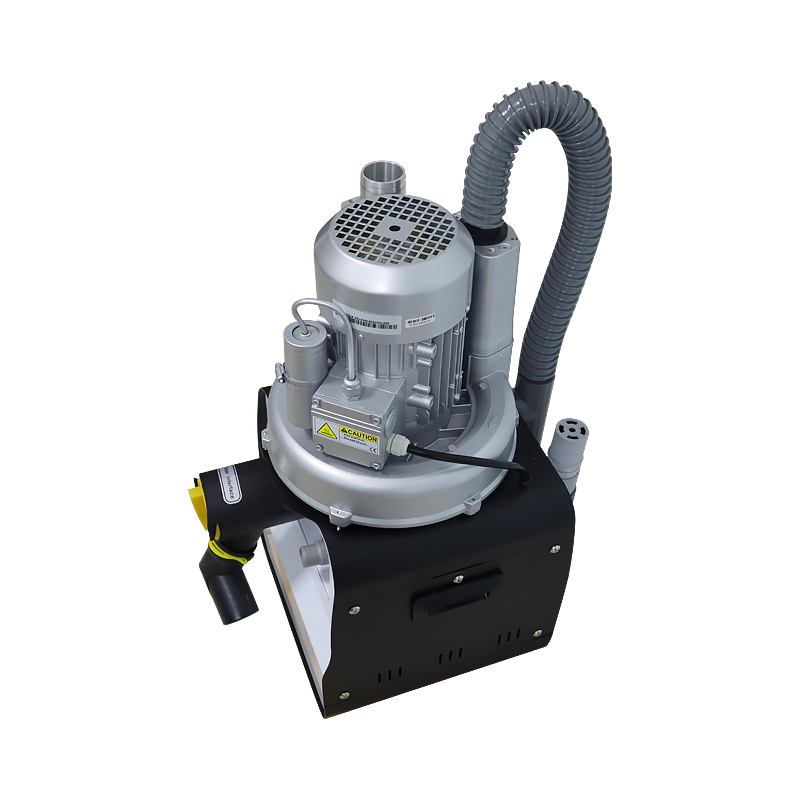

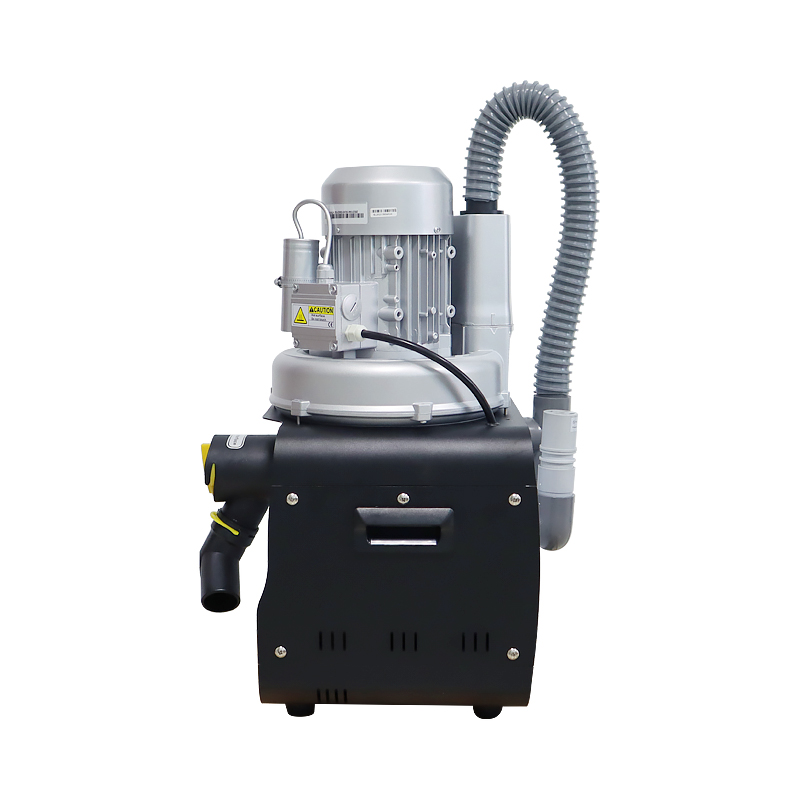

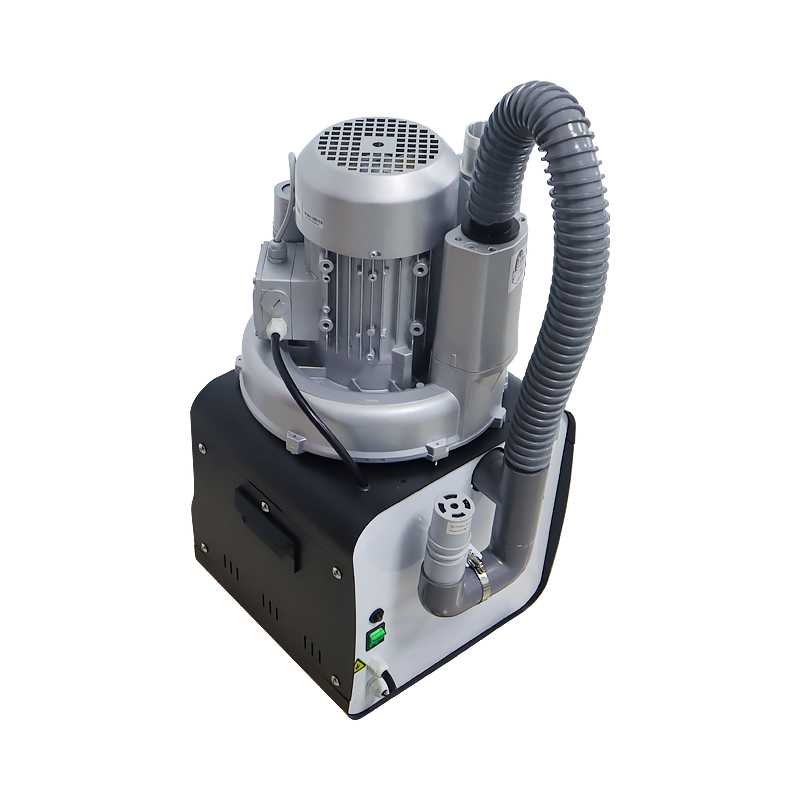

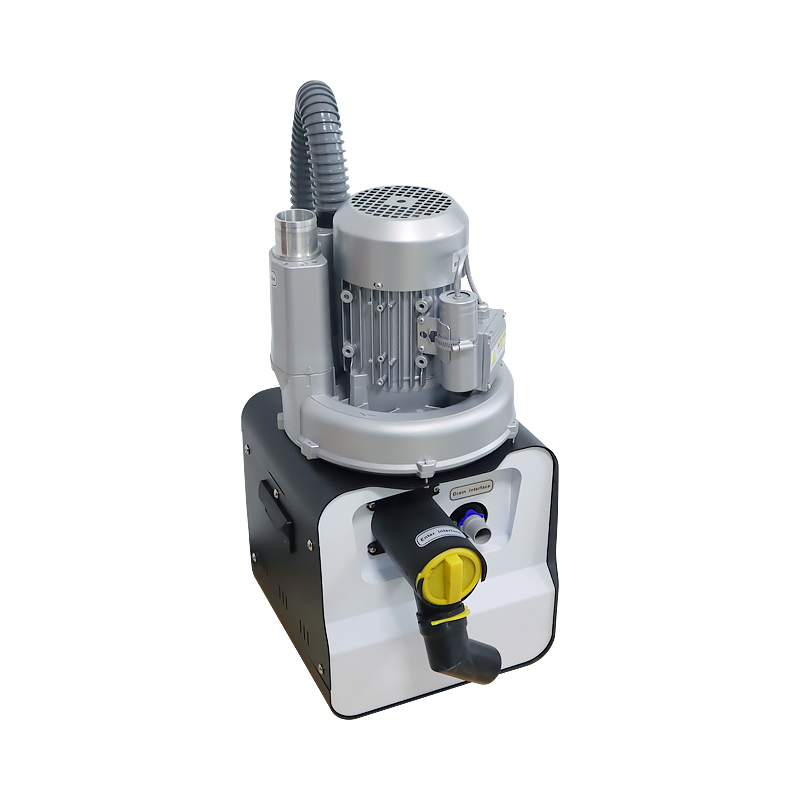

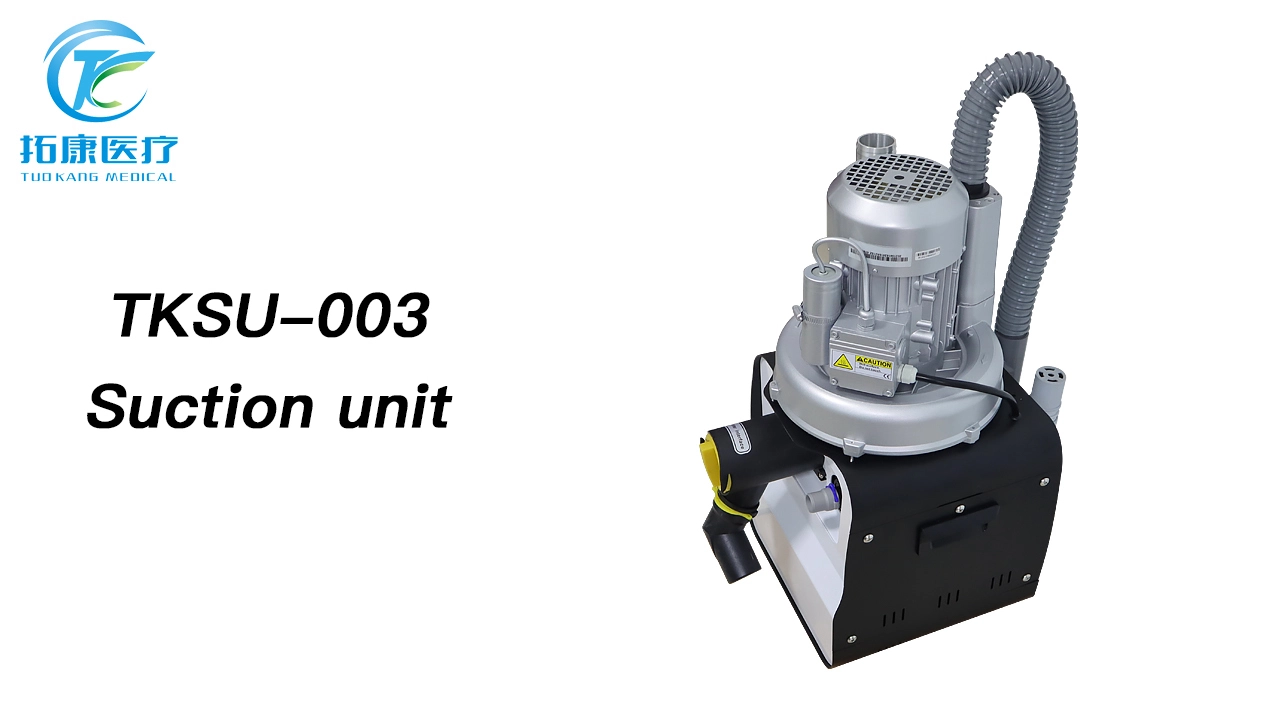

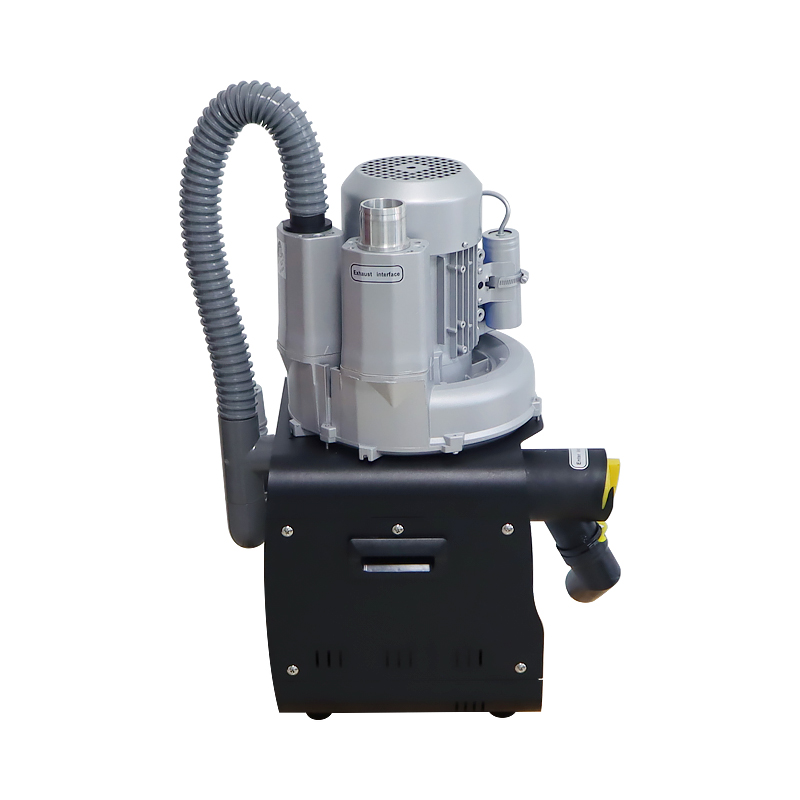

Tuo Kang TKSU-003 Efficient Separation Suction Unit System China Manufacturer
1. Efficient separation,Compact structure,Low use-cost
Let air and liquid separate in the small room.Separation system and vacuum pump is connected in the same central driving sharft,don’t need instal separation system in the dental unit,don’t need any other traditional system’s working cost---as water pump
2. Strong Power
Adopt width voltage and double frequence,motor with protection leve IP55(insulation grade F) as drive,accomplish turbine circulation suction power,lower noise, higher pressure,larger flowing. Offer the constant suction power for treatment
3. Regulation and cooling
Bulit-in auxiliary air valve,not only regulate suction power of system,but also ensure inside cooling of pump.
4. Corrosion resistance
Separation system adopt high grade engineering plastics,corrosion resistance,long use-life time

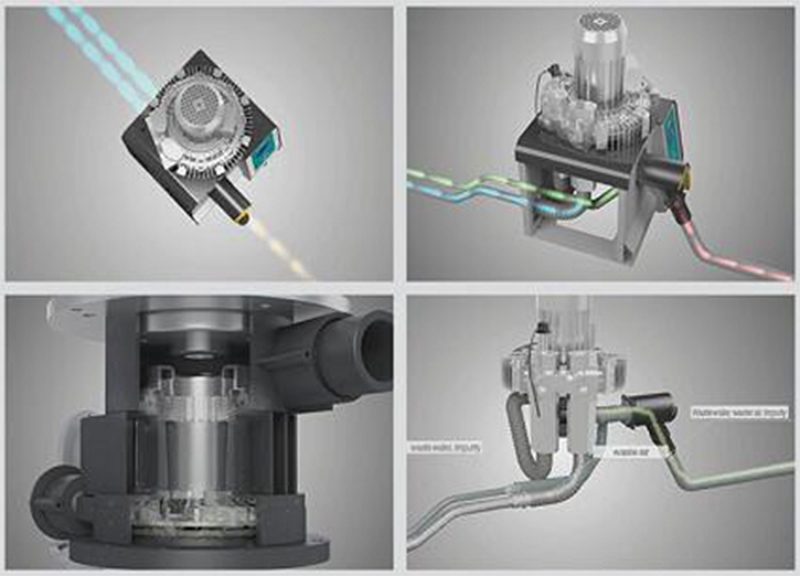

5. Two stage separation system
Innovative two stage separation system,have higher foam tolerance,ensure out-air without any water,avoid pump damage.
| Model: TKSU-003 | Air Flow（L/min): ≧800 |
| Voltage(V): 220V/50Hz | Connect dental unit quantity(simultaneous use 60%) 4 |
| Current: 7.5A | Connect dental unit quantity(simultaneous use 100%) 3 |
| Power(W): 1100W | Product weight (kg): 32 |
| Revolution: 2800r/min | Package Weight (kg): 42 |
| Noise(dB): 69 | Product size (cm): 48*32*69 |
| Max Vacuum(Kpa): ≦-18Kpa | Package size (cm): 61*43*82 |
Features
1. Sensitive response: quick action, powerful suction, can reach the high vacuum suction working condition very quickly.

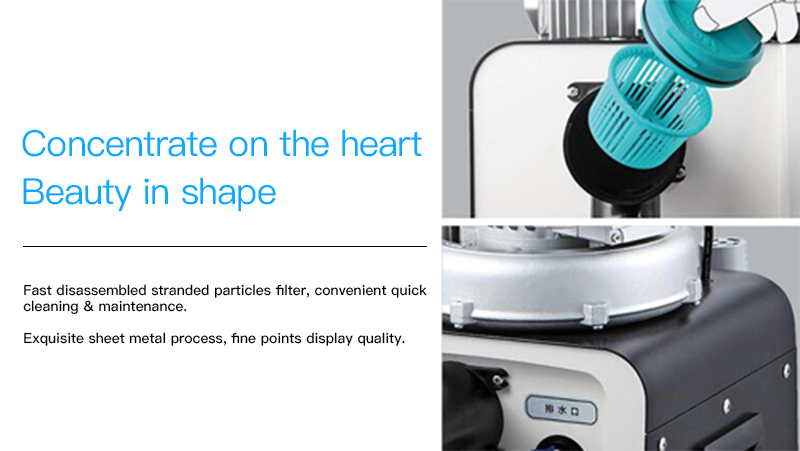

2. Easy operation: compact structure, separator and drainage system can be disassembled and reinstalled easily, convenient to clean and re-fix.
3. Fashion appearance: fashion colors, human body engineering design, showing fashion and vitality.
4. High vacuum: with dentistry top technology, very strong suction, stable power supply during operation to provide efficient negative pressure.
5. Stable working performance: with the worldwide newest technology, service life can reach to 10000 hours, and during the daily use, almost maintenance free.
6. Easy maintenance: fully automatic induction design, automatic start-stop control, automatic drainage.
7. Quiet & Clean: low working noise, new design, brings you a health life from science and technology.
