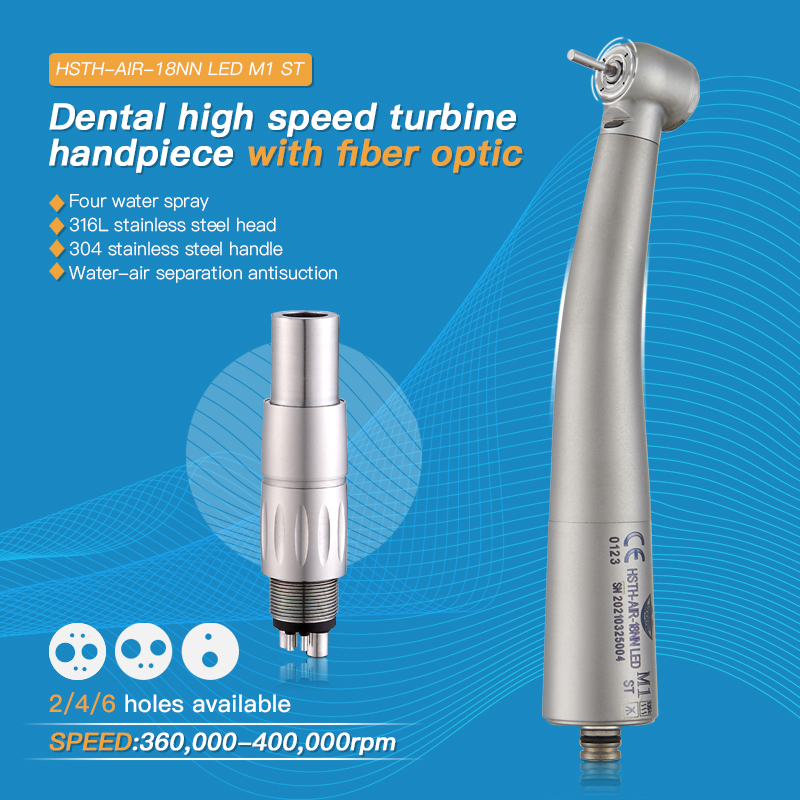

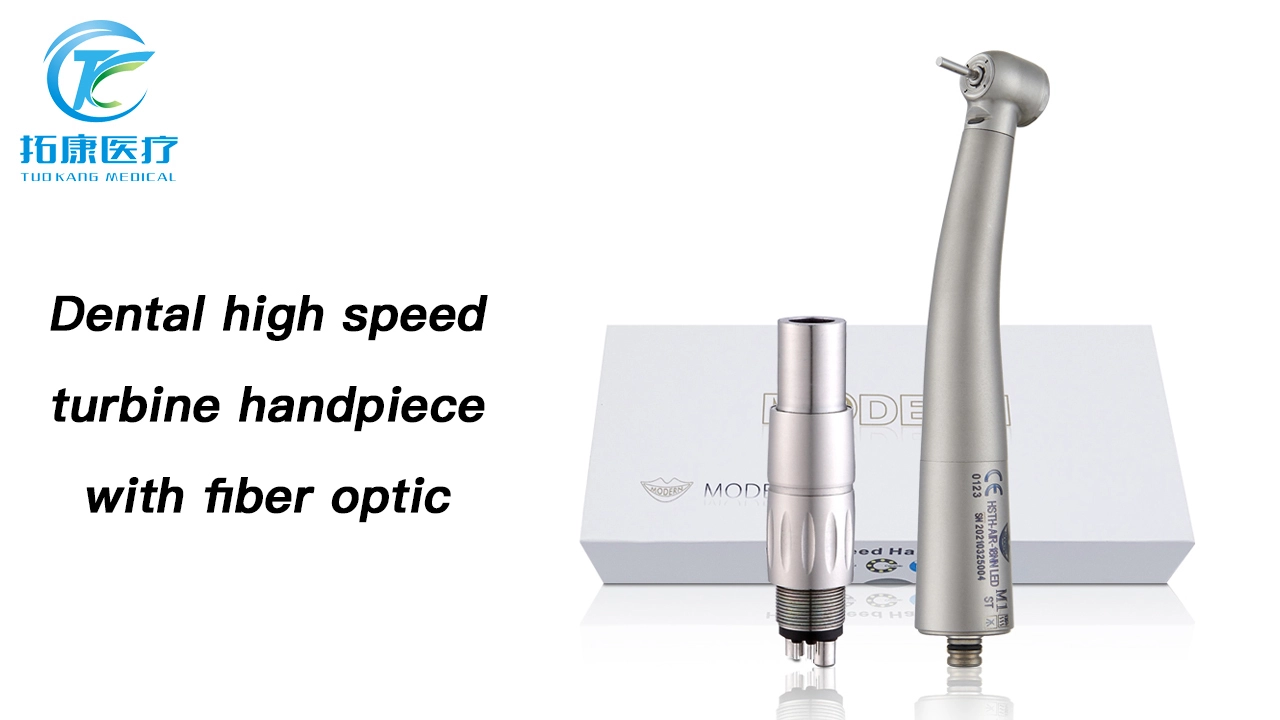

Dental High Speed Turbine LED Fiber Optic Handpieces with N Type Quick Coupling
NSK type quick coupling is convenient to replace the handpiece after treatment, which can improve work efficiency.
LED fiber optic lighting can provide high quality illumination to ensure the clear vision field, which is beneficial to increase the preparation precision control and reduce fatigue during treatment.

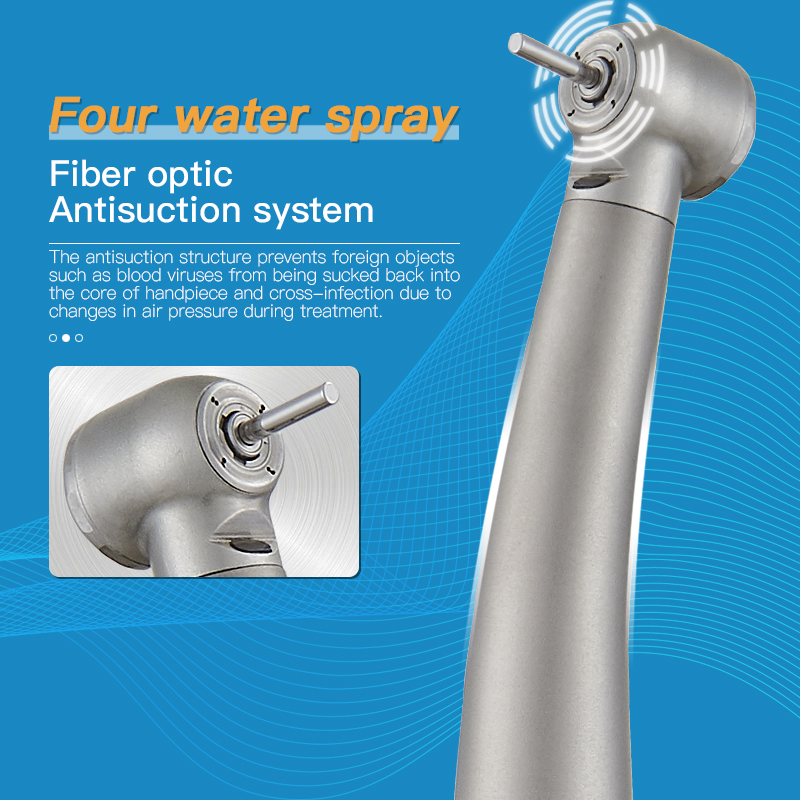

Four water spray can accurately cool down the affected part from 4 angles, so that the teeth will not be affected by the heat generated during cutting to better protect the teeth.
Airflow stabilization device keeps stable speed to provide constant-pressure airflow for the dental handpiece, reducing bearing damage caused by instantaneous high air pressure.

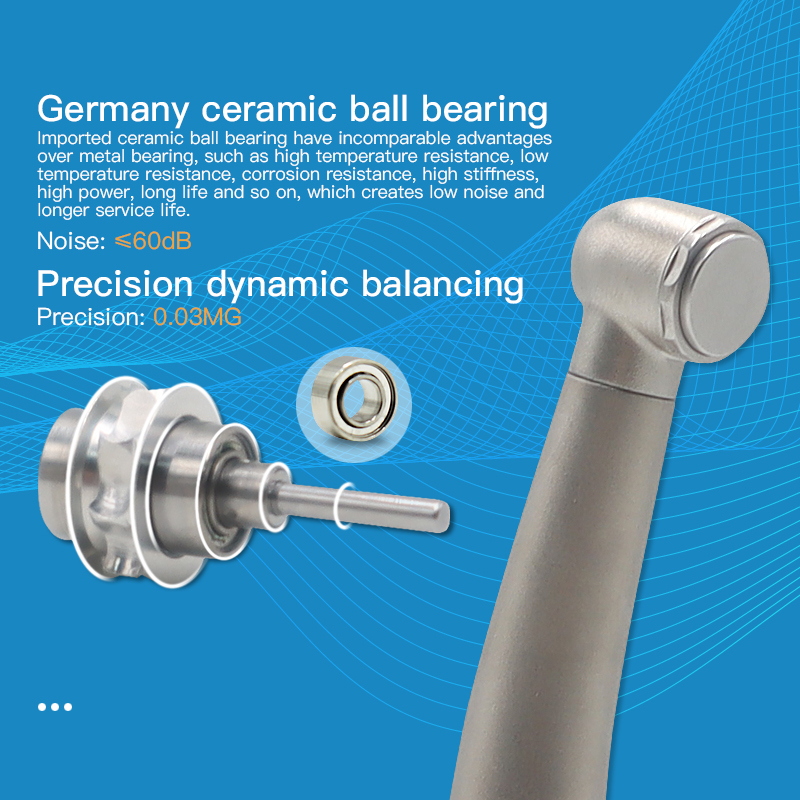

Germany ceramic ball bearing creates low noise and longer service life.

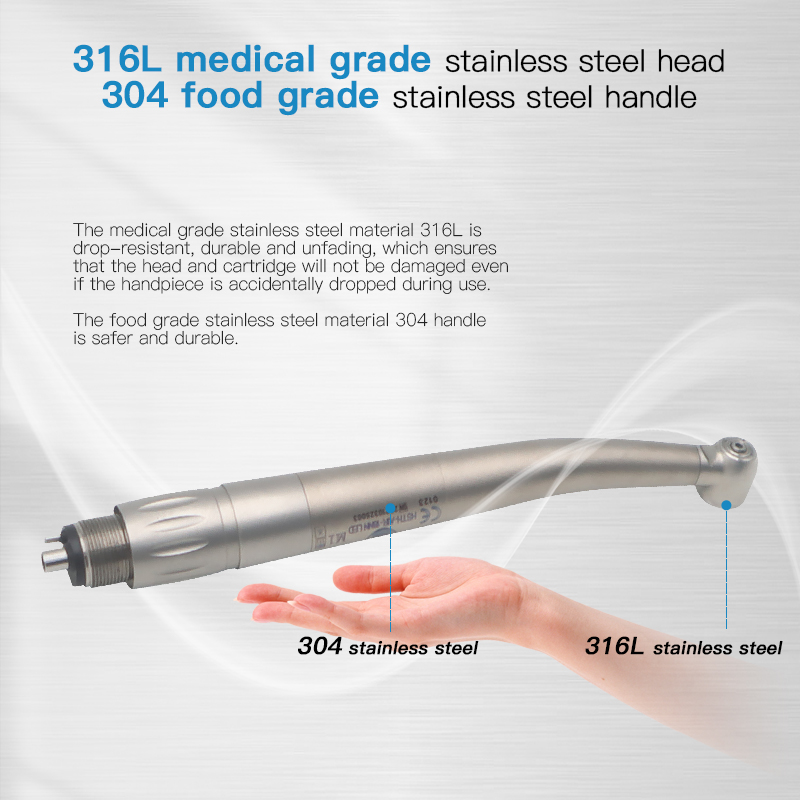

The medical grade stainless steel material 316L is drop-resistant, durable and unfading.

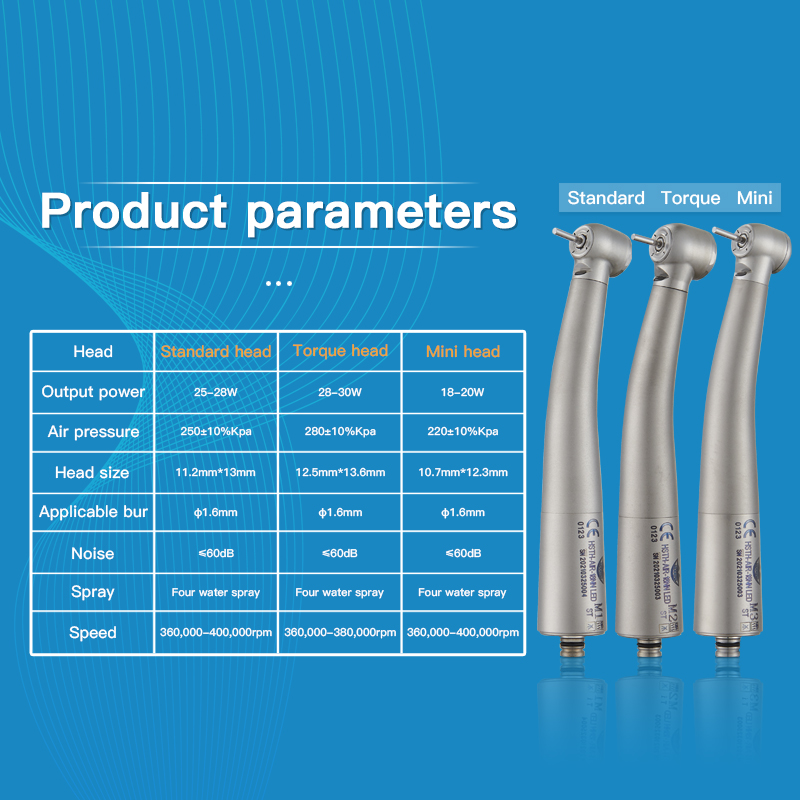

Standard Head
Head size: Φ11.2*13
Output power: 25-28W
Noise: ≤60dB
Air pressure:250±10%Kpa
Speed: 360000-400000rpm
Applicable bur: φ1.6mm
Material: 316L stainless steel head, 304 stainless steel handle
Bearing:2.78(Warranty of spindle and bearing is 1 year)
Features:
1.Standard head,four water spray, water-air separation antisuction system，reduce cross-infection.
2.Patented high speed head power structure
3.KV patented spindle,run-out ≤ 0.008mm, chucking force ≥3.5kg,prevent burs flying and guarantee safety.
4. Airflow stabilization device keeps stable speed, reducing bearing damage.
5.Ceramic ball bearing
6.General NSK fiber optic quick coupling
Torque Head
Head size: Φ12.5*13.6
Output power: 28-30W
Noise: ≤60dB
Air pressure: 280±10%Kpa
Speed: 360000-380000rpm
Applicable bur: φ1.6mm
Material: 316L stainless steel head, 304 stainless steel handle
Bearing:2.78(Warranty of spindle and bearing is 1 year)
Features:
1.Torque head,four water spray, water-air separation antisuction system，reduce cross-infection.
2.Patented high speed head power structure
3.KV patented spindle,run-out ≤ 0.008mm, chucking force ≥3.5kg,prevent burs flying and guarantee safety.
4. Airflow stabilization device keeps stable speed, reducing bearing damage. 5.Ceramic ball bearing
6.General NSK fiber optic quick coupling
Mini Head
Head size: Φ10.7*12.3
Output power: 18-20W
Noise: ≤60dB
Air pressure: 220±10%Kpa
Speed: 360000-400000rpm
Applicable bur: φ1.6mm
Material: 316L stainless steel head, 304 stainless steel handle
Bearing:2.38(Warranty of spindle and bearing is 1 year)
Features:
1.Mini head,four water spray, water-air separation antisuction system，reduce cross-infection.
2.Patented high speed head power structure
3.KV patented spindle,run-out ≤ 0.008mm, chucking force ≥3.5kg,prevent burs flying and guarantee safety.
4. Airflow stabilization device keeps stable speed, reducing bearing damage.
5.Ceramic ball bearing
6.General NSK fiber optic quick coupling
