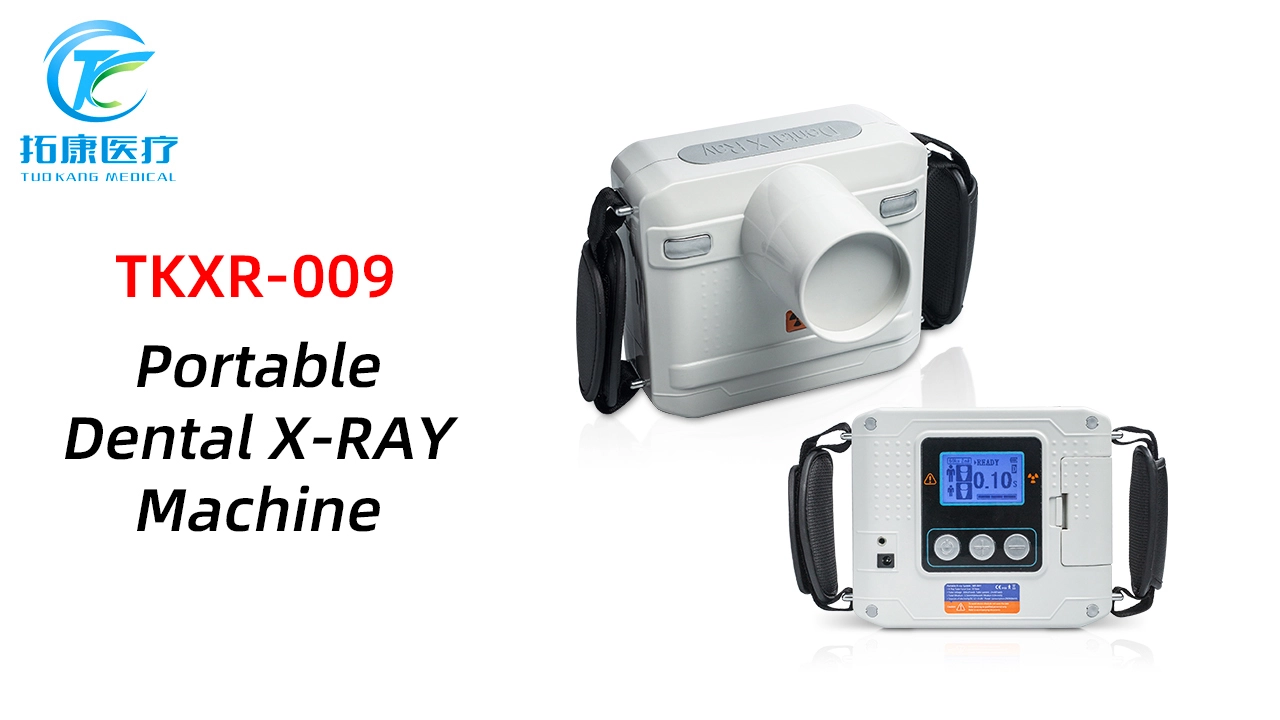

Foshan supplier TKXR-009 portable dental X-ray machine high-frequency high-definition handheld X-ray machine-TK Dental
Features of product:
● Name of product: Portable X-ray System
● Model: TKXR-009
● TKXR-009 is a portable x-ray system indicated for taking diagnostic dental x-rays for both pediatric and adialt patients using intraoral film or digital sensors
● Real meaning portable system by using replaceable battery-pack
● Graphic LCD window and user-friendly interface by simple button-touch
● Life time is 8 years
● LCD window indicates
- Exposure time setup by adult and child
- Film and digital mode
- Operation status of the unit
- Remaining of battery
- Exposure time setup by part of the teeth
● Function for user
- Simultaneous use of digital and film
- Automatic power disconnecting time setup
- Continuation of back light time setup
- Remaining voltage of battery indication
● 3-steps time increase level by part of teeth
● Super Small! Super Light!
● Adopting high-frequency circuit of inverter type
● The most suitable to diverse digital sensors
- Simultaneous using of digital sensor and film
● Auto set Timer
- Automatic exposure time set up by adult, child, and location of teeth
● More than 300 radiography is possible with one time charging of battery
● More compact/weight than existing portable dental X-ray(1.7kg)
TKXR-009 Portable Dental X-RAY Machine.
● Name: Mobile X-ray System
● Tube Voltage: 60kV(fixed)
● Tube Current: 2mA(fixed)
● X-Ray Tube Focal Size: 0.7mm
● Cooling system: Oil cooling
● Total filtration: 1.5mm Al (Inherent filtration: 0.8mm Aluminum)
● Target angle: 16°
● Time Set-up function: 0.02 ~ 1.35 sec (Film/Digital included)
● Source to image receptor distance: >10cm (fixed by cone)
● X-ray field: 50mm(round-style)
● Size of main body: L175 * W150 * H150(mm)
● Weight of body: About 1.8kg
● Package size: L305 * W205 * H170(mm)
● Gross weight: 3.4kg
● Battery-pack
- Material: Lithium-Polymer
- Charge Condition
Current: 1.0 A
Voltage: 16.8 VDC
Temperature: 0~40℃
- Use condition
Max. current: 20A
Voltage range: 14(min) ~ 16.8(MAX) V
Temperature: -20℃ ~ 60℃
● Charger
- Input Voltage: 100 ~ 240 VAC
- Output Voltage : 16.8 VDC
- Current: 1.0A
TKXR-009 Portable Dental X-RAY Machine.

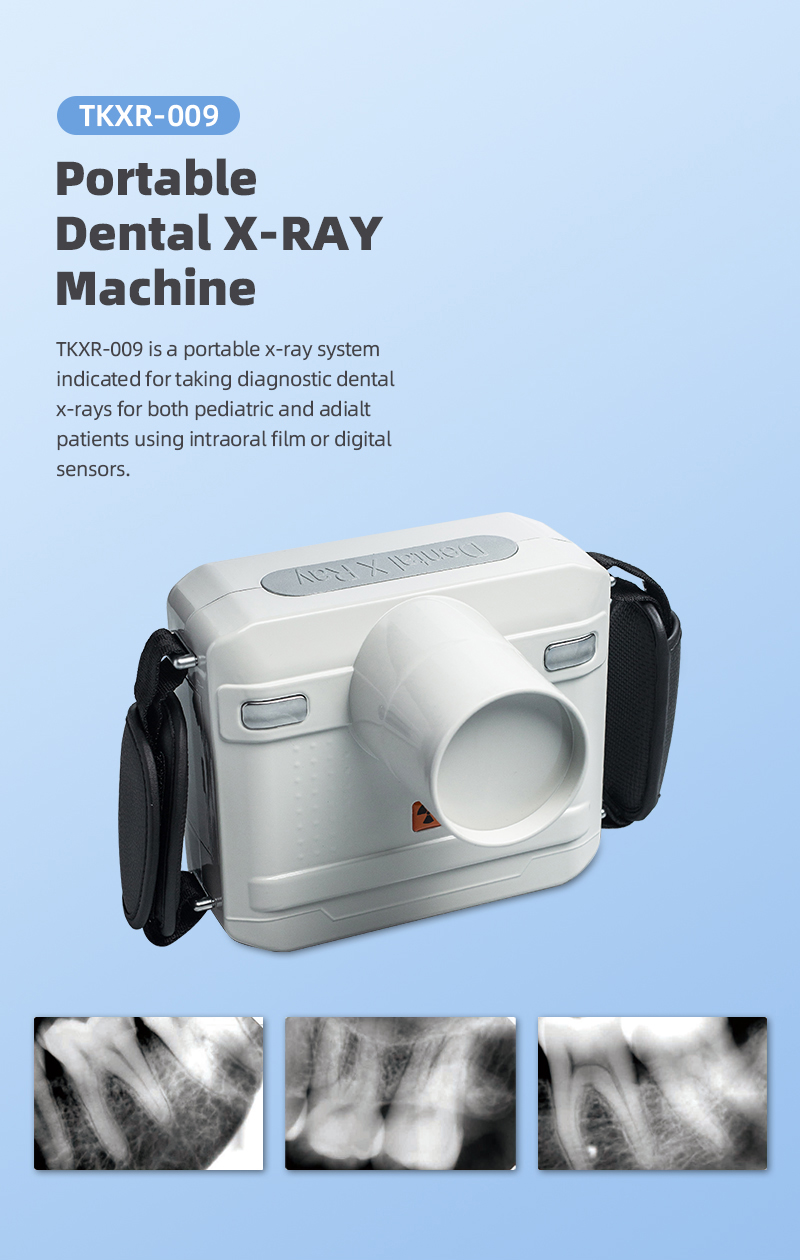

● TKXR-009
● Portable Dental X-RAY Machine
● TKXR-009 is a portable x-ray system indicated for taking diagnostic dental x-rays for both pediatric and adialt patients using intraoral film or digital sensors.

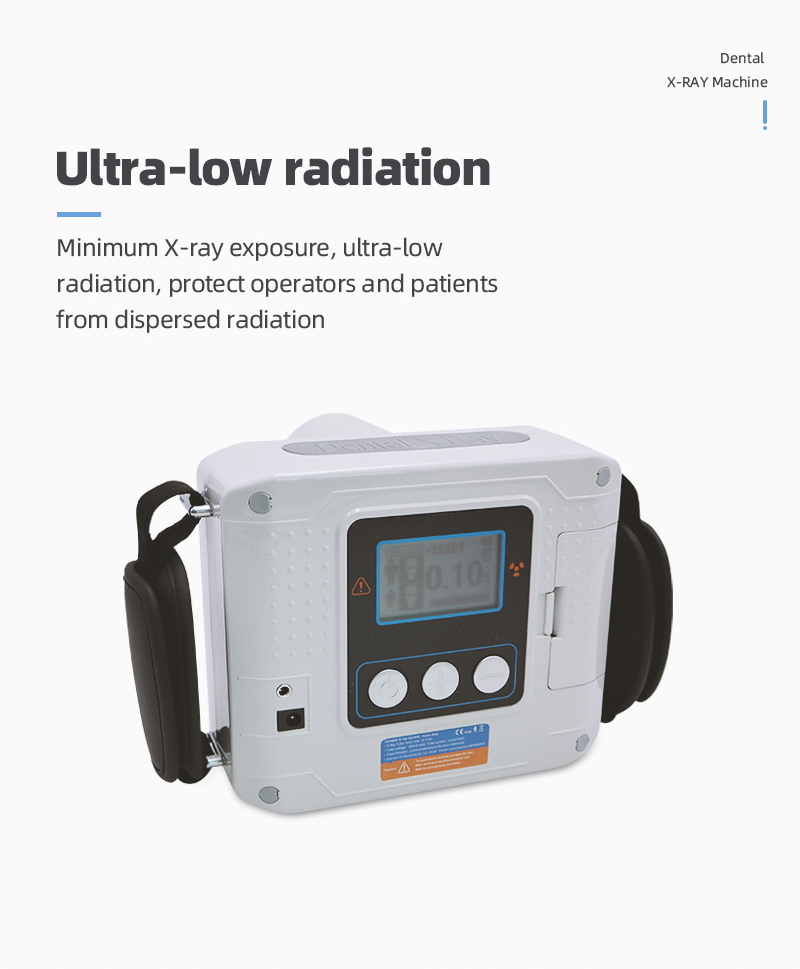

● Ultra-low radiation
Minimum X-ray exposure, ultra-low radiation, protect operators and patients from dispersed radiation.Company Introduction

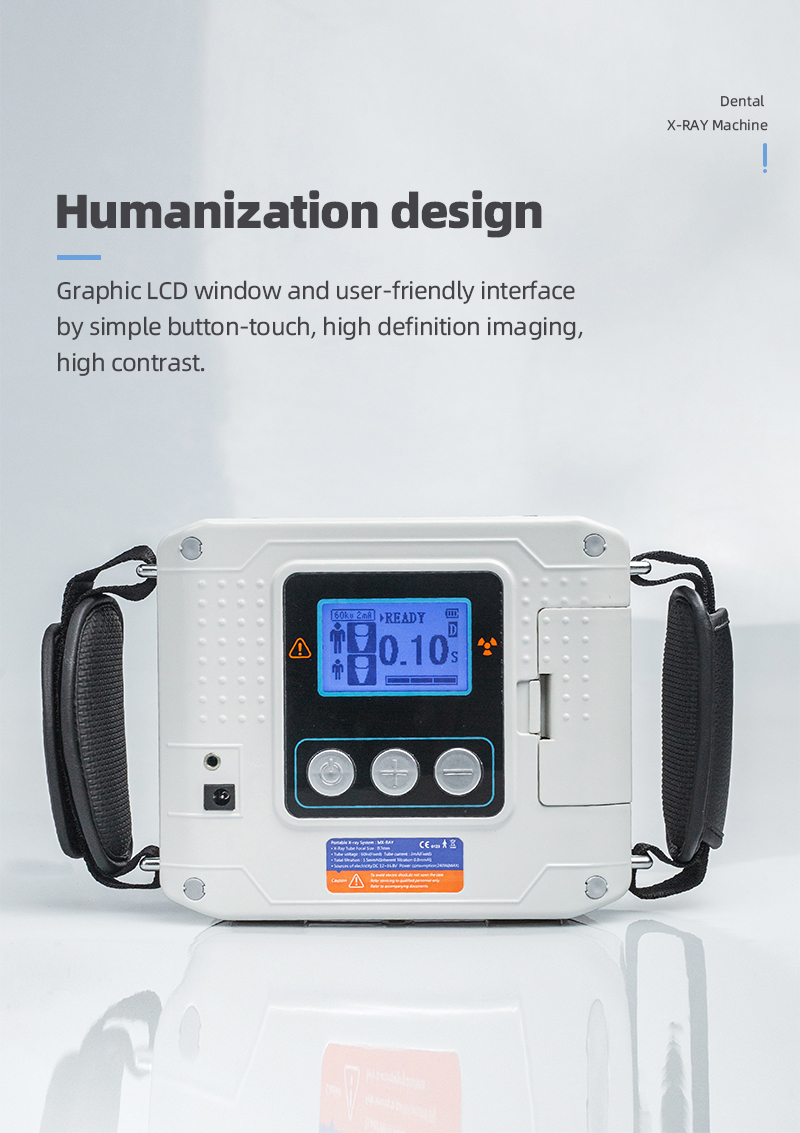

● Humanization design
Graphic LCD window and user-friendly interface by simple button-touch, high definition imaging,high contrast.

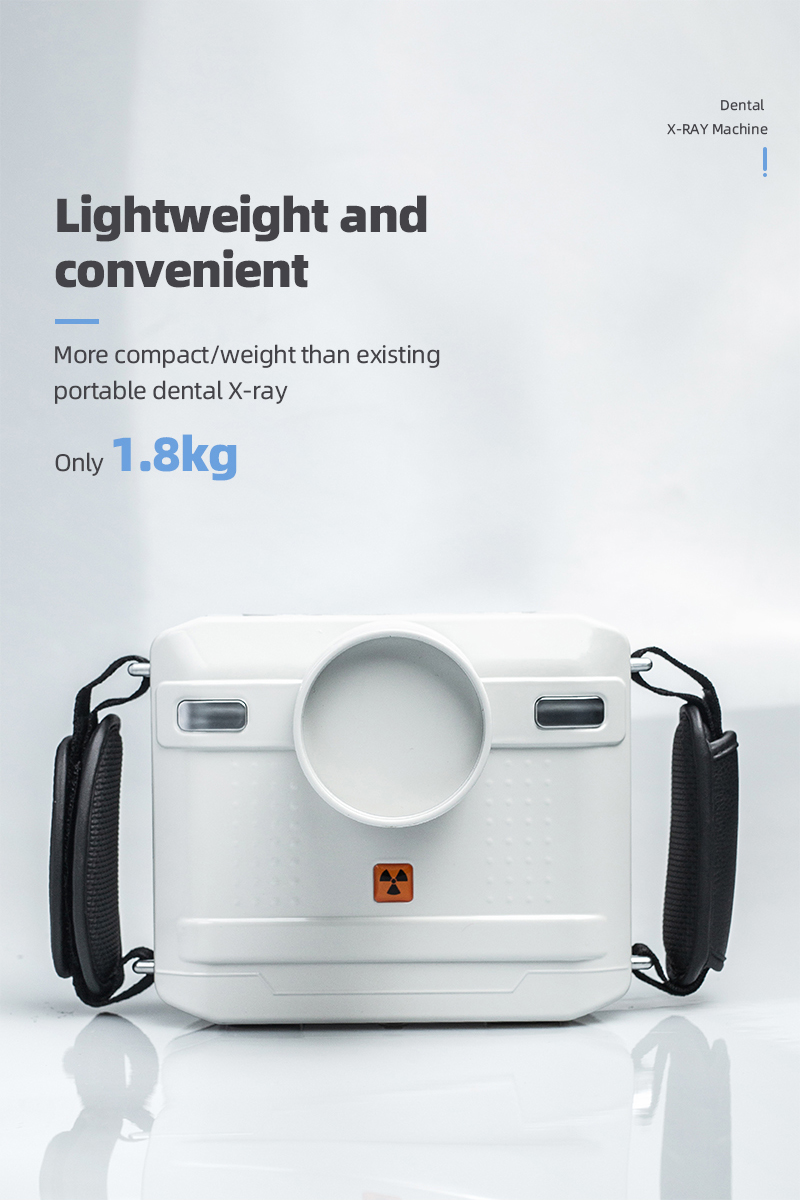

● Lightweight and convenient
More compact/weight than existing portable dental X-ray(Only 1.8kg).

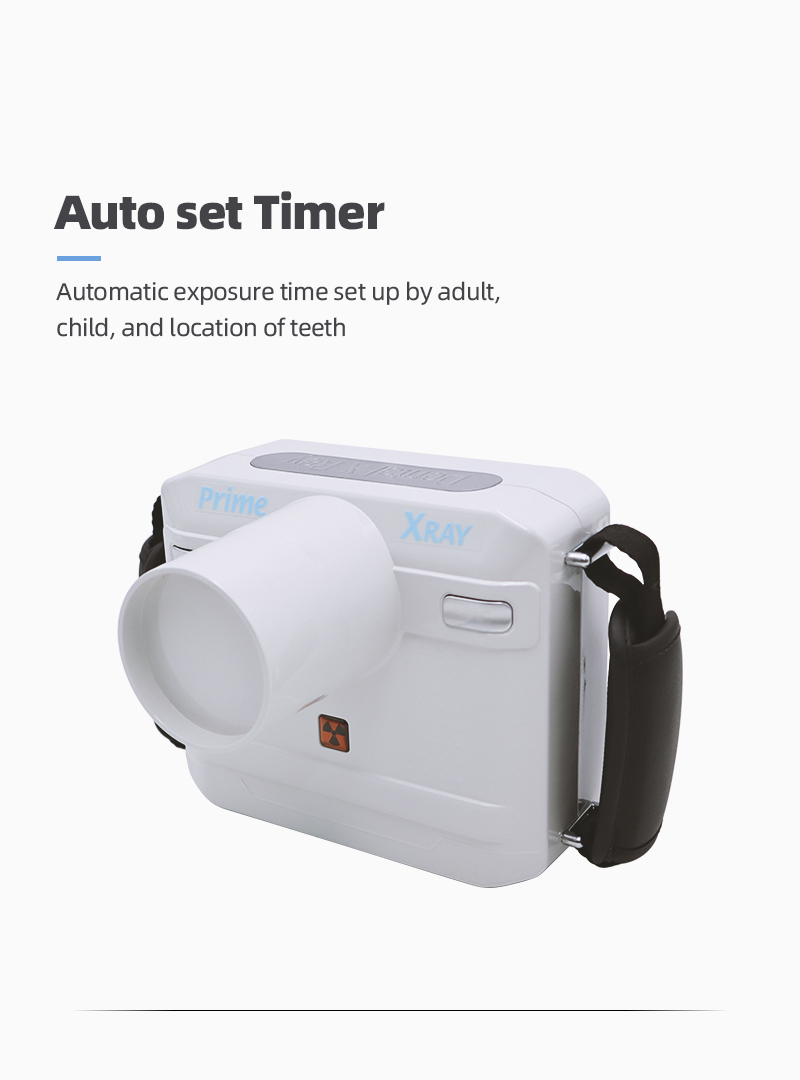

● Auto set Timer
Automatic exposure time set up by adult, child, and location of teeth.

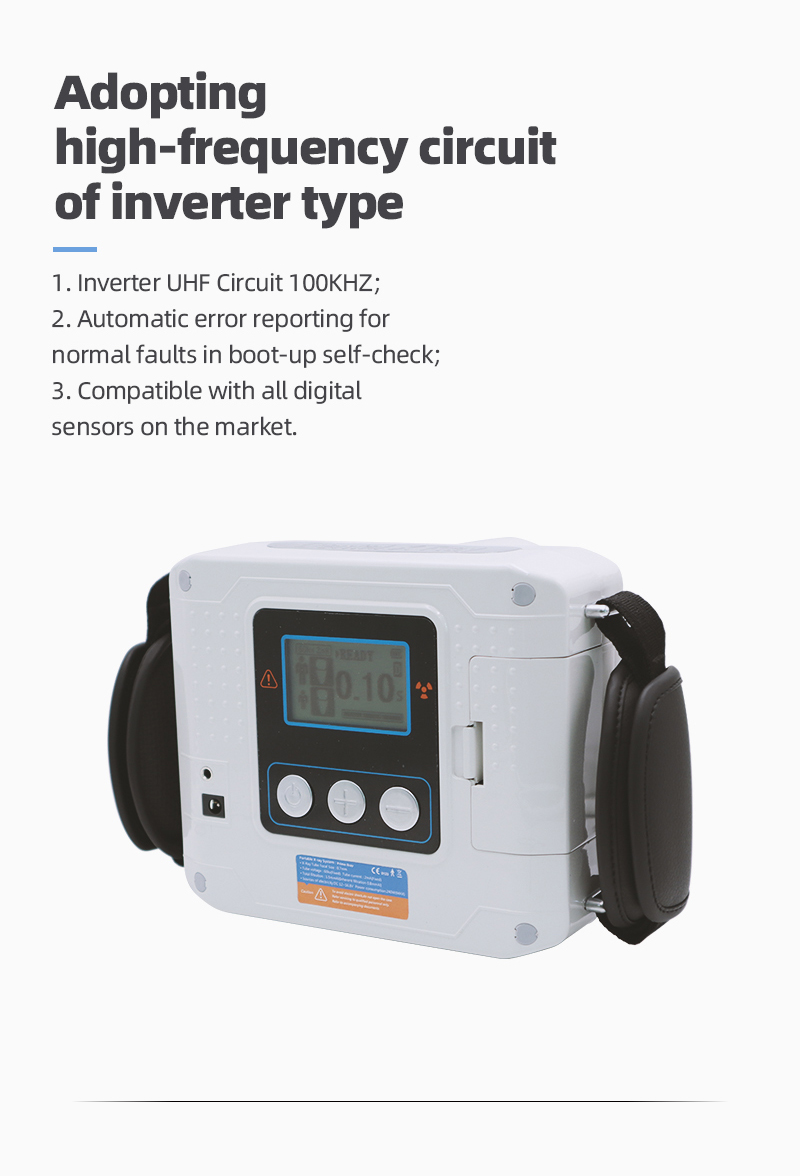

● Adopting high-frequency circuit of inverter type
1. Inverter UHF Circuit 100KHZ;
2. Automatic error reporting for normal faults in boot-up self-check;
3. Compatible with all digital sensors on the market.

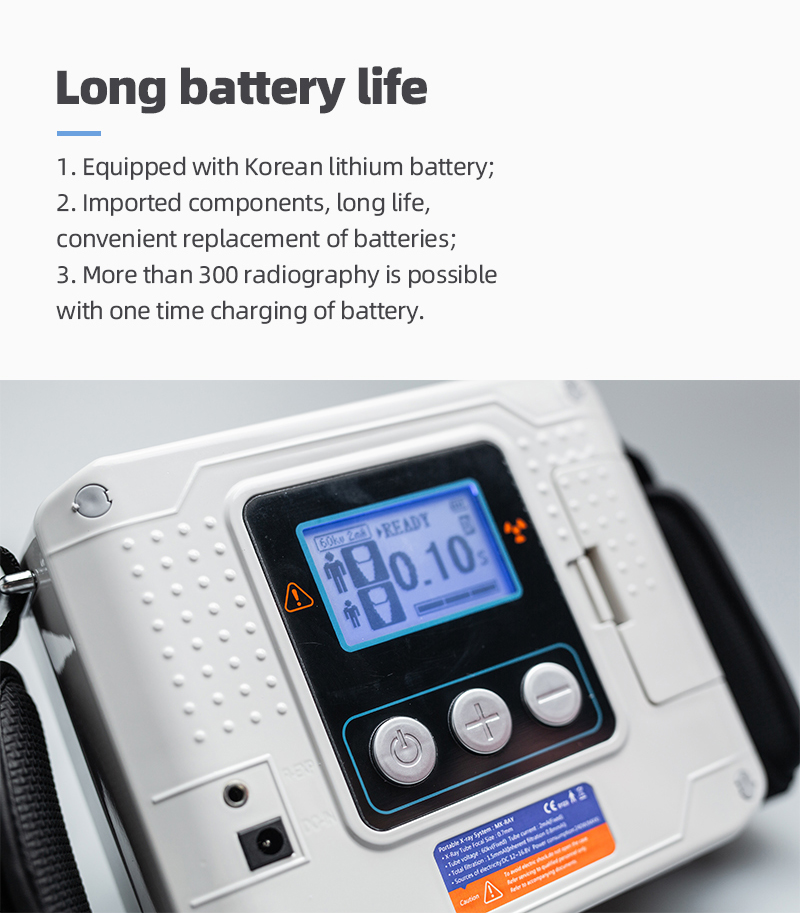

● Long battery life
1. Equipped with Korean lithium battery;
2. Imported components, long life, convenient replacement of batteries;
3. More than 300 radiography is possible with one time charging of battery.

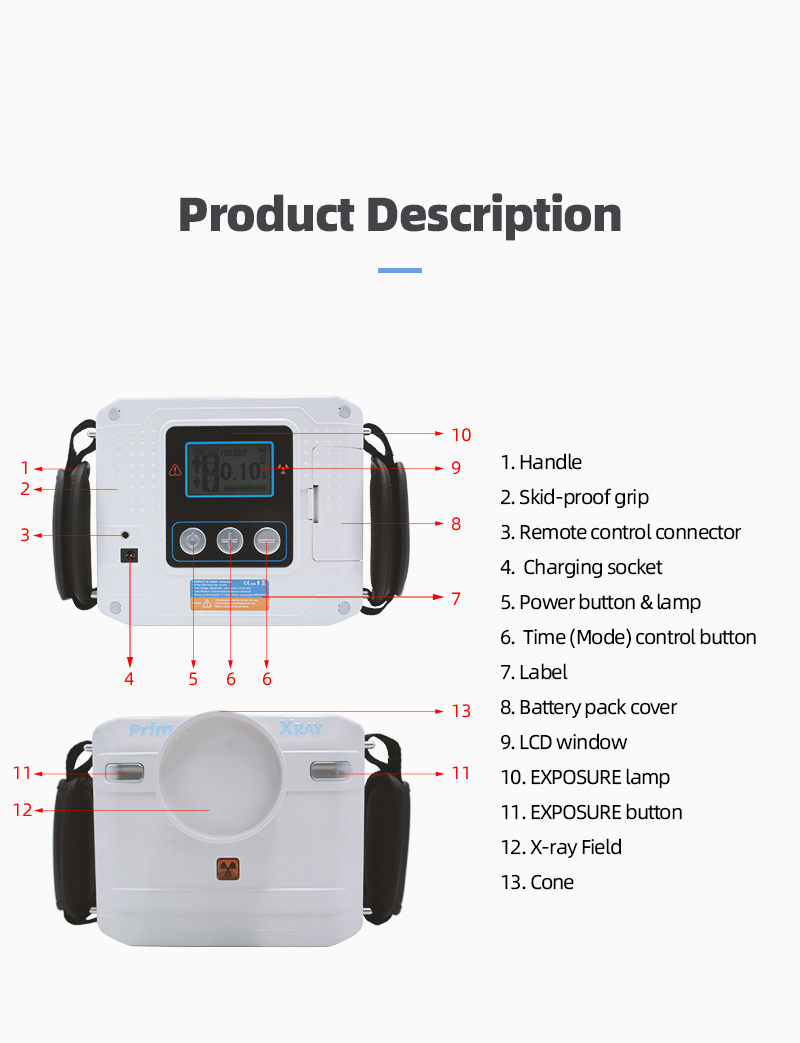

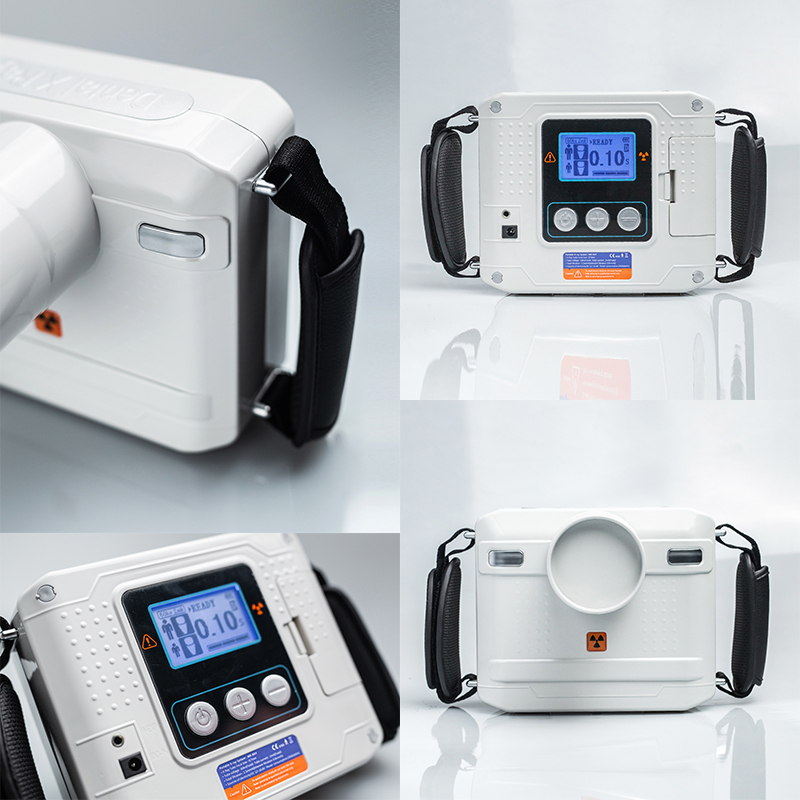

● Product Description
1. Handle
2. Skid-proof grip
3. Remote control connector
4. Charging socket
5. Power button & lamp
6. Time (Mode) control button
7. Label
8. Battery pack cover
9. LCD window
10. EXPOSURE lamp
11. EXPOSURE button
12. X-ray Field
13. Cone

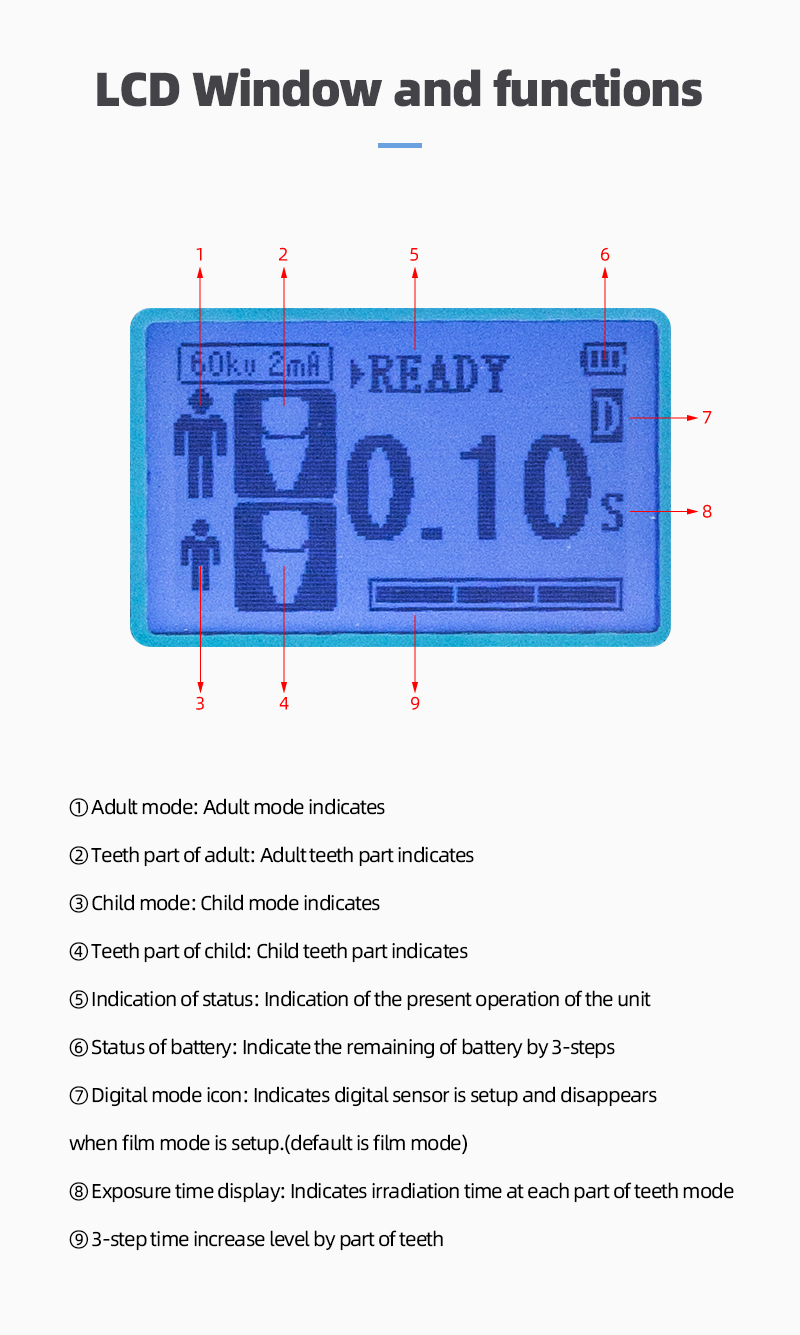

● LCD Window and functions
① Adult mode: Adult mode indicates
② Teeth part of adult: Adult teeth part indicates
③ Child mode: Child mode indicates
④ Teeth part of child: Child teeth part indicates
⑤ Indication of status: Indication of the present operation of the unit
⑥ Status of battery: Indicate the remaining of battery by 3-steps
⑦ Digital mode icon: Indicates digital sensor is setup and disappears when film mode is setup.(default is film mode)
⑧ Exposure time display: Indicates irradiation time at each part of teeth mode
⑨ 3-step time increase level by part of teeth

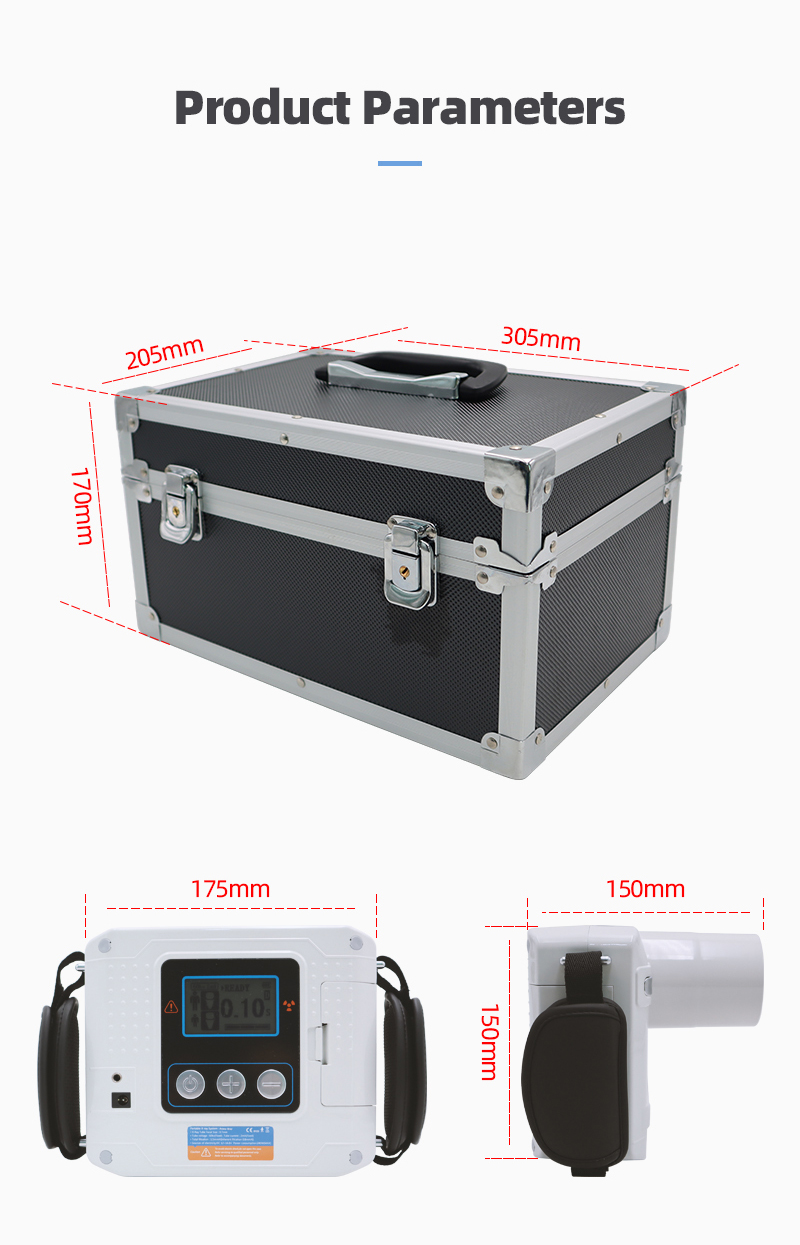

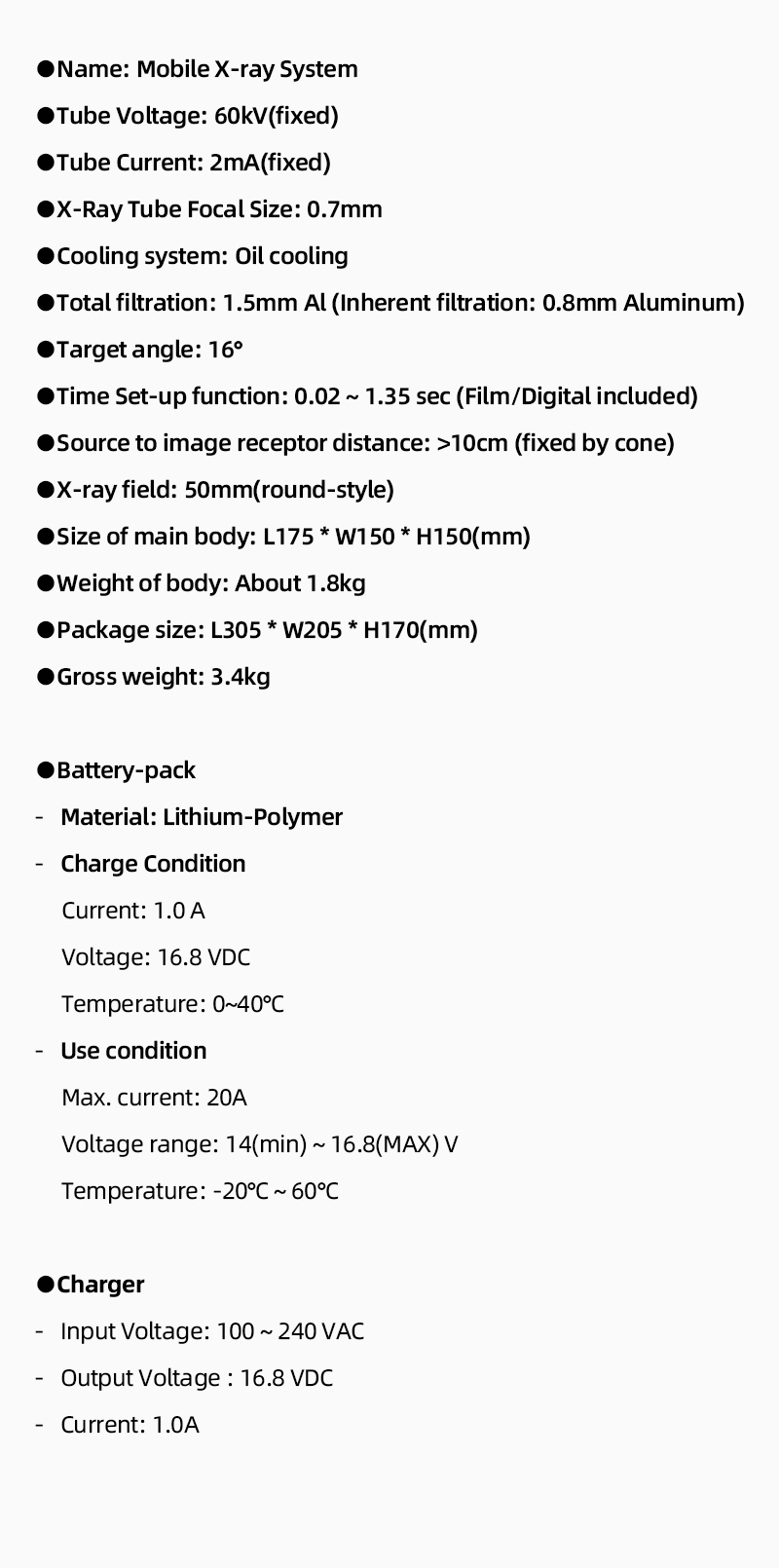

Product Parameters
● Name: Mobile X-ray System
● Tube Voltage: 60kV(fixed)
● Tube Current: 2mA(fixed)
● X-Ray Tube Focal Size: 0.7mm
● Cooling system: Oil cooling
● Total filtration: 1.5mm Al (Inherent filtration: 0.8mm Aluminum)
● Target angle: 16°
● Time Set-up function: 0.02 ~ 1.35 sec (Film/Digital included)
● Source to image receptor distance: >10cm (fixed by cone)
● X-ray field: 50mm(round-style)
● Size of main body: L175 * W150 * H150(mm)
● Weight of body: About 1.8kg
● Package size: L305 * W205 * H170(mm)
● Gross weight: 3.4kg
● Battery-pack
- Material: Lithium-Polymer
- Charge Condition
Current: 1.0 A
Voltage: 16.8 VDC
Temperature: 0~40℃
- Use condition
Max. current: 20A
Voltage range: 14(min) ~ 16.8(MAX) V
Temperature: -20℃ ~ 60℃
● Charger
- Input Voltage: 100 ~ 240 VAC
- Output Voltage : 16.8 VDC
- Current: 1.0A
