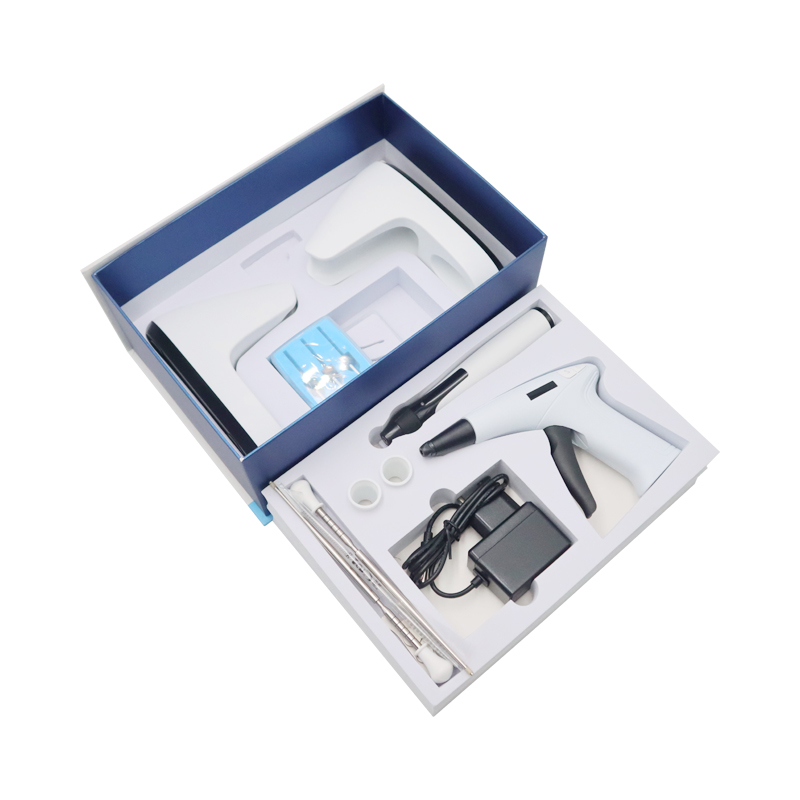

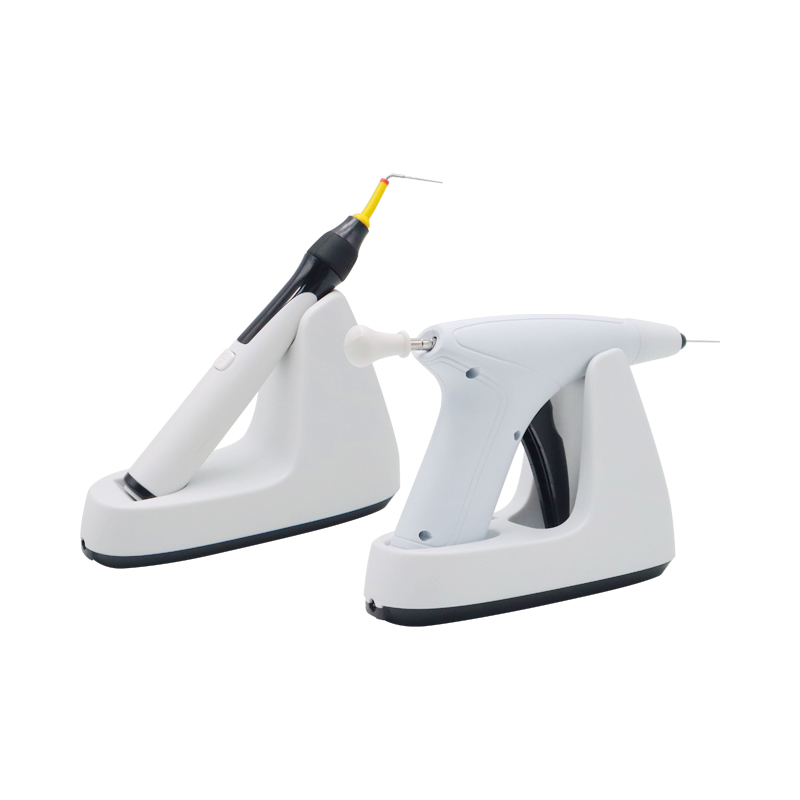

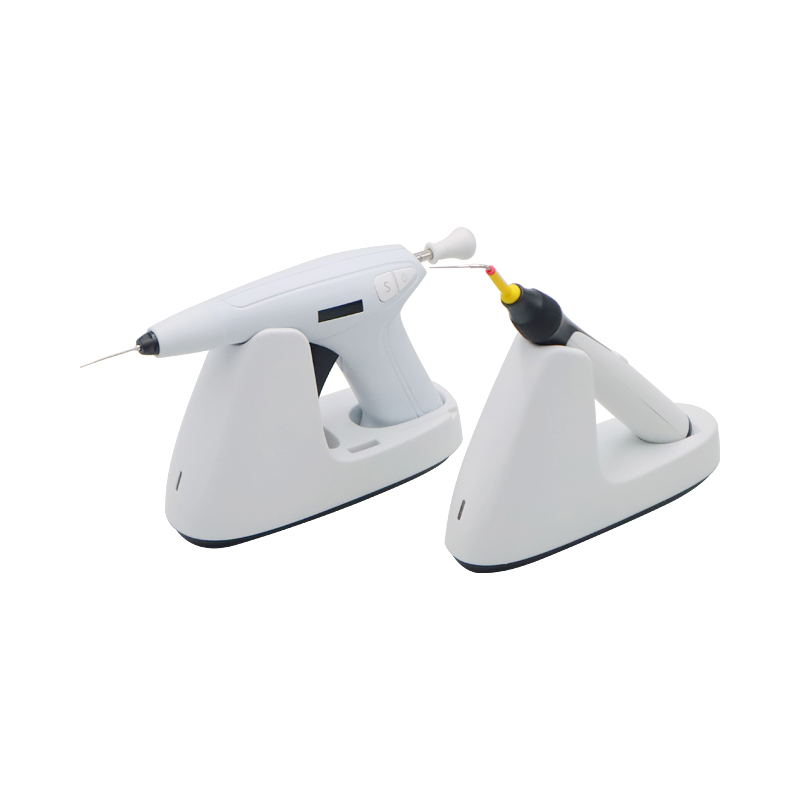

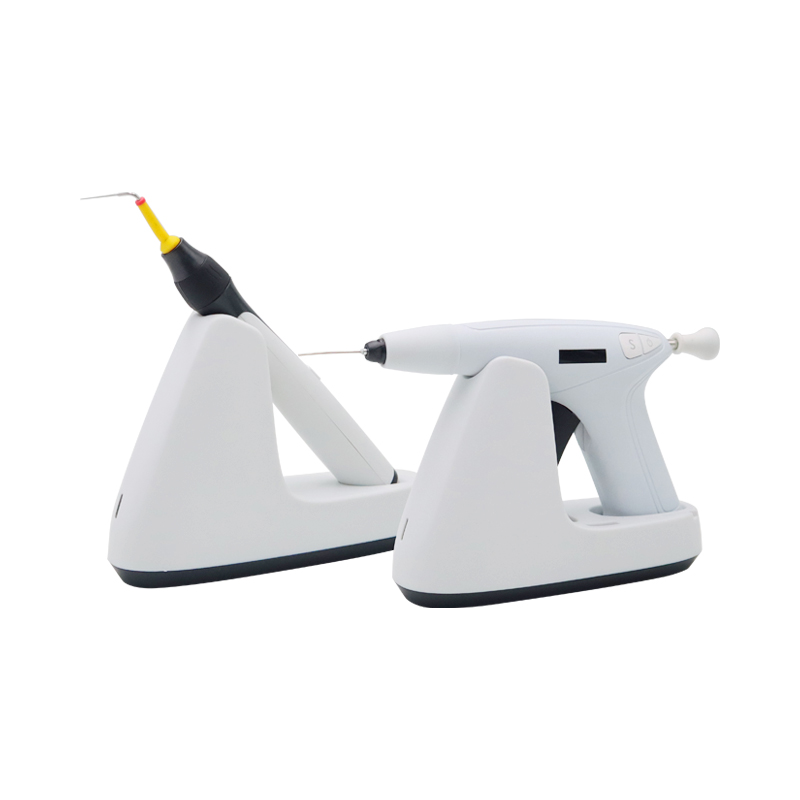

The gutta percha obturation system is mainly used for root canal filling in medical institutions. The gutta percha obturation system produced by our company mainly consists of a gutta-percha filling pen, a gutta-percha filling gun and a battery charging system. It will provide precise root canal filling and improve your clinical work efficiency. The gutta-percha
filling pen and gutta-percha filling gun may be used alone or in combination according to treatment needs.
Features
1.The two-in-one system is easier and more convenient to use and fill;
2.Use 0.91 inch OLED LCD screen display;
3.Digital display of temperature adjustment makes temperature adjustment more convenient;
4.The product is compact and more ergonomic;
5.Fast heating to improve operation efficiency;
6.Battery level display;
7.Work status display;
8.There is a buzzer sound during operation.
9.The gutta percha obturation system is an intermittent operation equipment, in which the gutta-percha filling gun g operates intermittently, running for 10 minutes, and resting for 30 minutes to run the equipment again. The gutta-percha filling pen runs intermittently, runs for 15s and rests for 3s to run the device again.
| Charging system | Working voltage | Battery: 3.7Vdc |
| Adapter | Type: Switching Power Supply (SMPS)Input: 100-240Vac, 50/60Hz Output: DC5V/1A  | |
| Charging time | About 4.0 hours | |
| Filling gun | Heater | 3.7Vdc |
| Temperature sensor | Type: Type K | |
| The temperature range of the filling gun | Optional: 120 150 180 200 220 | |

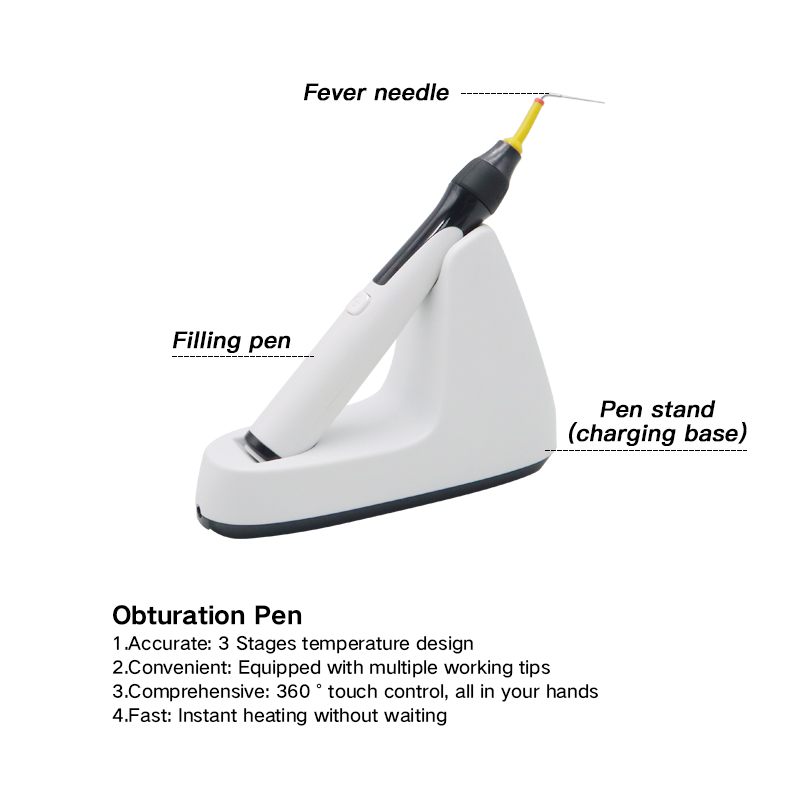

| Filling pen | Temperature sensor | Type: Integrated Circuit (IC) |
| The temperature range of the filling pen | H or L | |
| Battery usage time each time | Filling gun | About 45 minutes |
| Filling pen | About 25 minutes |
1)Lithium battery capacity: 3.7Vdc, 2200mAh
2)Charging dock input: 5Vdc, Output: 4.2Vdc
3)Working conditions: temperature: 5℃~40℃, humidity: ≤80%
4)Transportation or storage conditions: temperature: -40℃~55℃, humidity: ≤95%
5)Size: 270*190*111mm
