 Product Details

一、

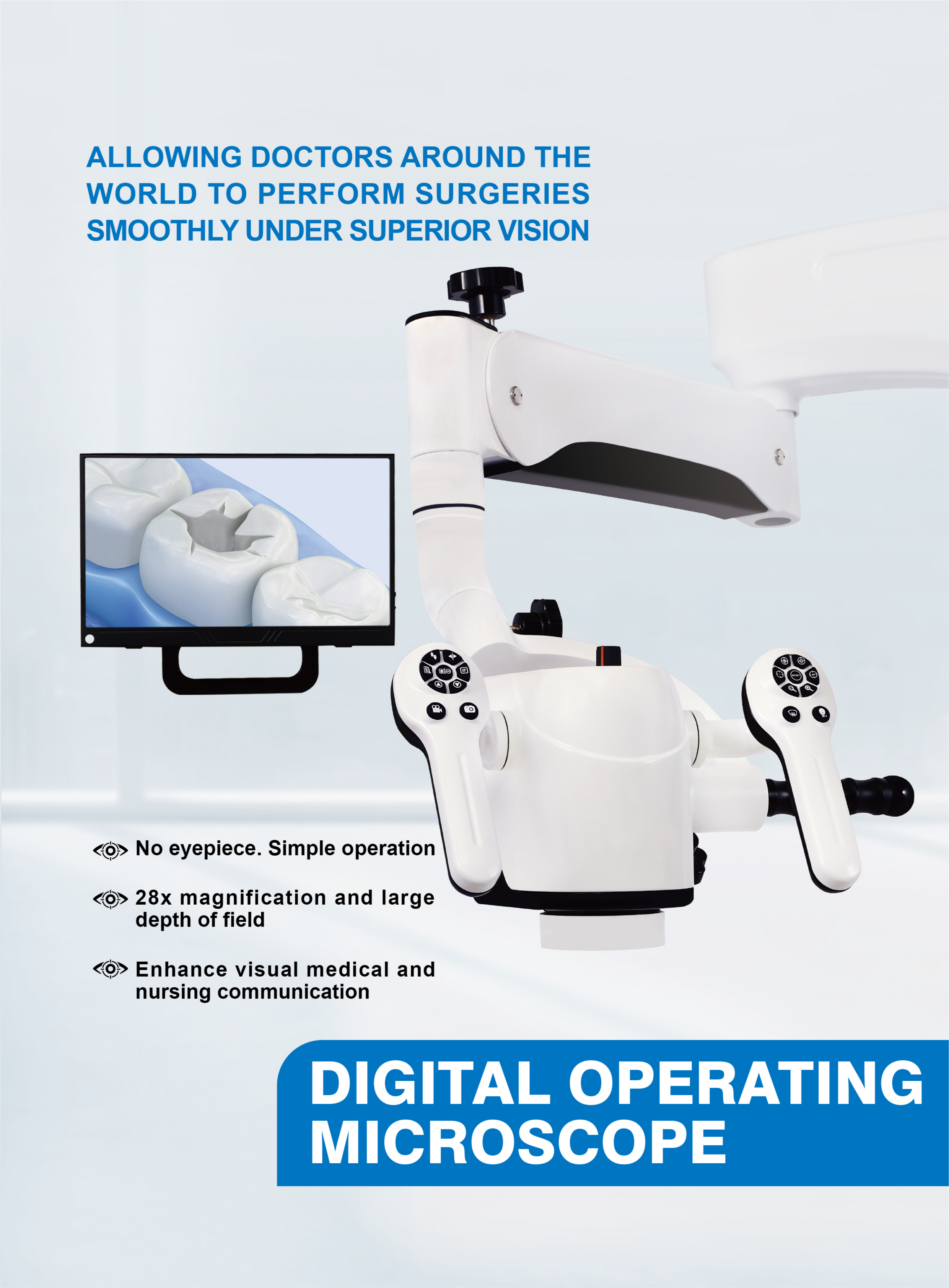

1. ALLOWING DOCTORS AROUND THE WORLD TO PERFORM SURGERIES SMOOTHLY UNDER SUPERIOR VISION

二、

1. No eyepiece. Simple operation

2. 28x magnification and large depth of field

3. Enhance visual medical and nursing communication

三、

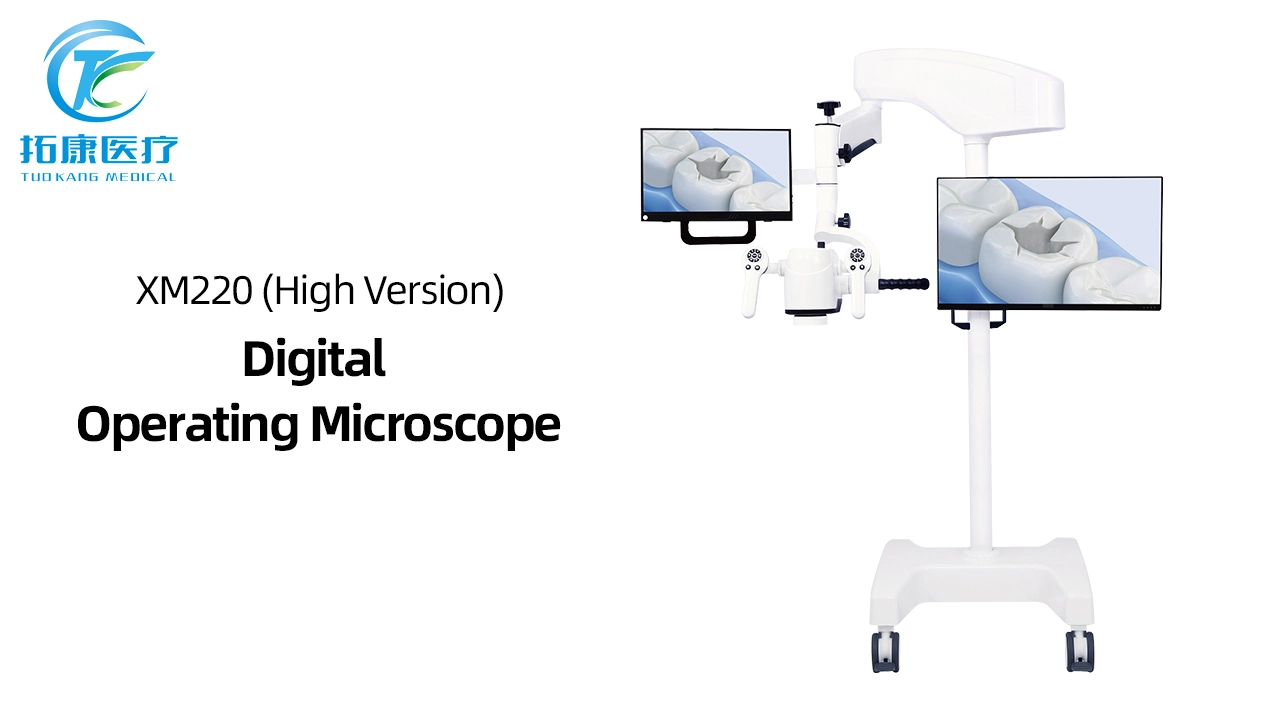

DIGITAL OPERATING MICROSCOPE

一、

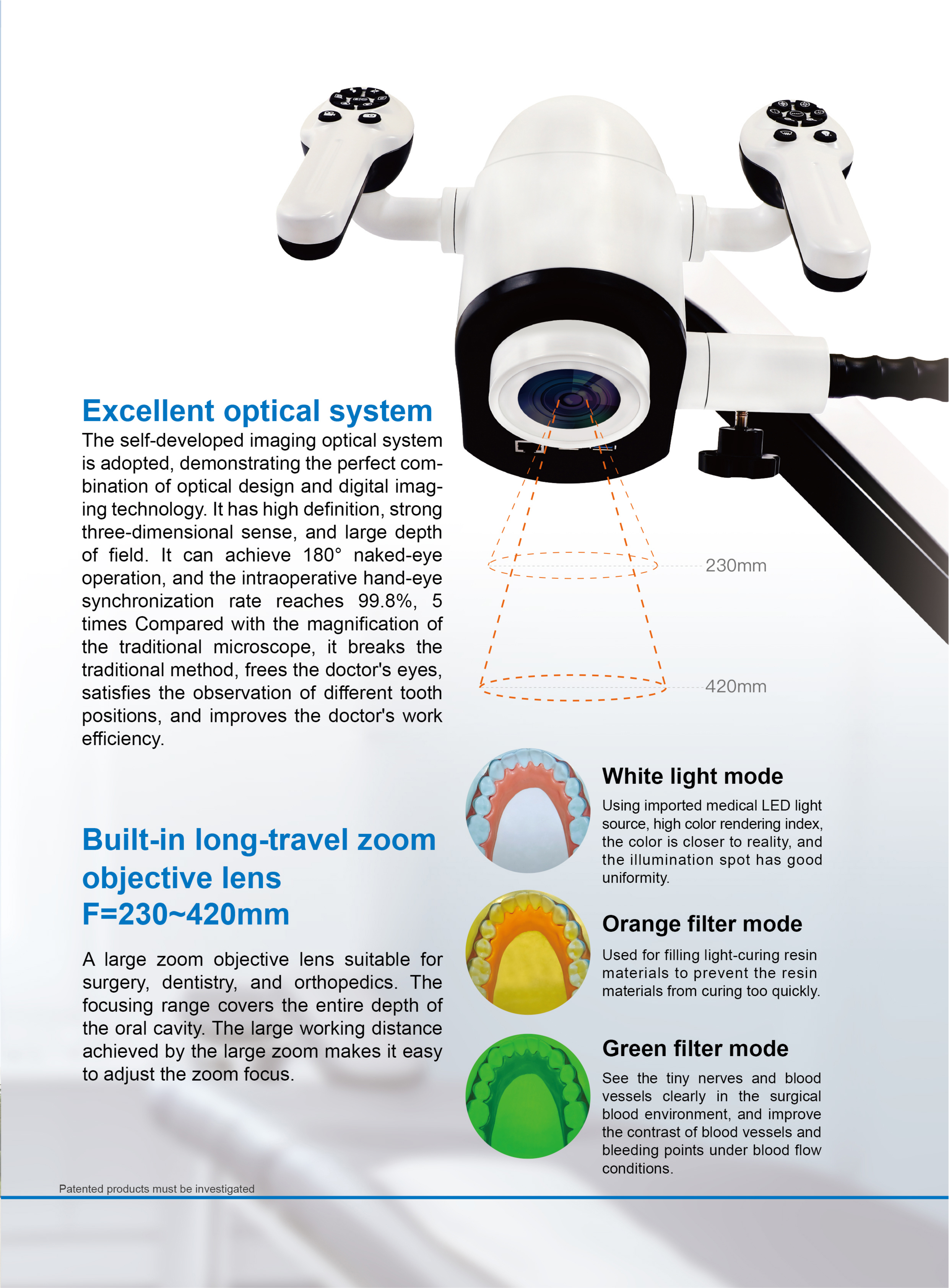

Excellent optical system：

The self-developed imaging optical system is adopted, demonstrating the perfect combination

of optical design and digital imaging technology. lt has high definition, strong three-dimensional sense,

and large depth of field. lt can achieve 180° naked-eye operation, and the intraoperative hand-eye synchronization

rate reaches 99.8%, 5 times Compared with the magnification ofthe traditional microscope, it breaks the traditional method,

frees the doctor's eyes, satisfies the observation of different tooth positions, and improves the doctor's work efficiency.

二、

Built-in long-travel zoom objective lens

F=230~420mm：

A large zoom objective lens suitable for surgery dentistry, and orthopedics. The focusing range covers the entire depth of

the oral cavity. The large working distance achieved by the large zoom makes it easy to adjust the zoom focus.

三、

1. White light mode：

Using imported medical LED light source, high color rendering index,

the color is closer to reality, and the illumination spot has good uniformity.

2. Orange filter mode：

Used for filling light-curing resin materials to prevent the resin materials from

curing too quickly.

3. Green filter mode:

See the tiny nerves and blood vessels clearly in the surgical blood environment,

and improve the contrast of blood vessels and bleeding points under blood flow conditions.

1.

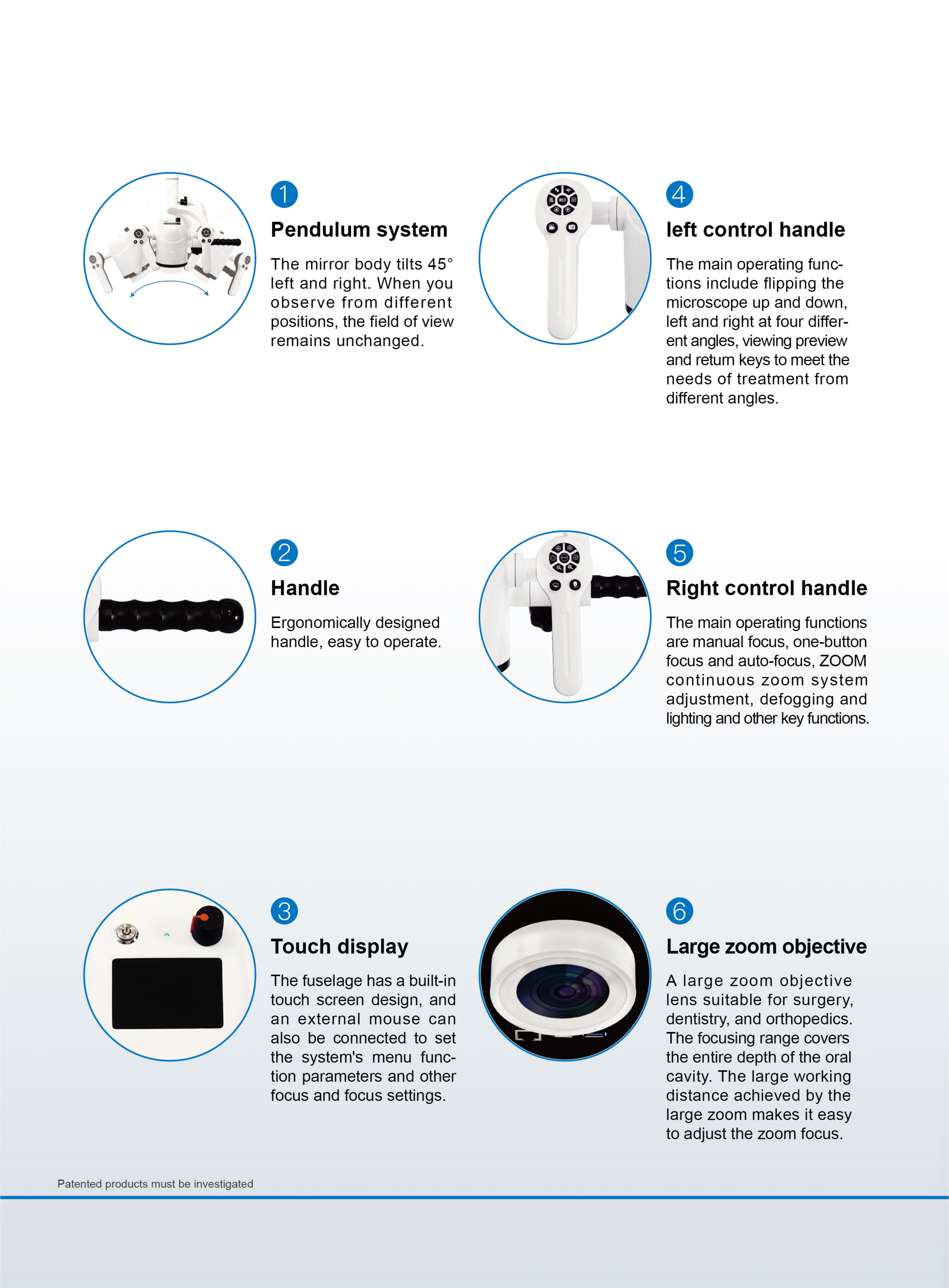

2. 1.Pendulum system:

   The mirror body tilts 45° left and right.


When you observe from different positions, the field of view remains unchanged.

2. Handle:

Ergonomically designed handle, easy to operate.

3. Touch display:

The fuselage has a built-in touch screen design, and an external

mouse can also be connected to set the system's menu function

parameters and other focus and focus settings.

4. left control handle:

The main operating functions include flipping the microscope up and down,

left and right at four different angles, viewing preview and retum keys to meet the needs of treatment from different angles.

5. Right control handle:

The main operating functions are manual focus, one-button focus and auto-focus,ZOOM continuous zoom system adjustment, defogging and lighting and other key functions.

6. Large zoom objective:

A large zoom objective lens suitable for surgery, dentistry, and orthopedics.

The focusing range covers the entire depth of the oral cavity. The large working distance achieved by the large zoom makes it easy to adjust the zoom focus.

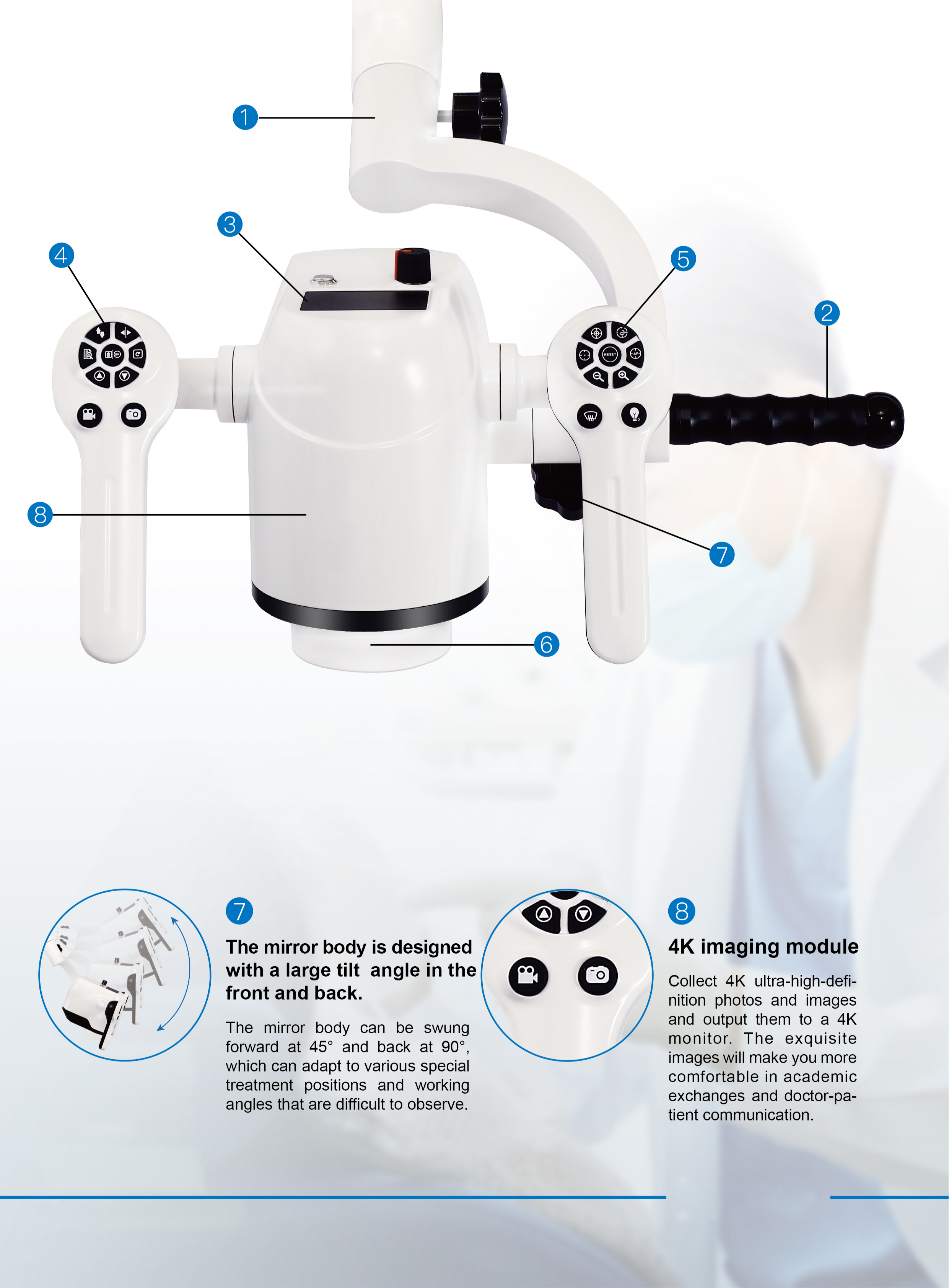

7. The mirror body is designed with a large tilt angle in the front and back：

The mirror body can be swung forward at 45°and back at 90°,

which can adapt to various special treatment positions and working

angles that are difficult to observe.

8. 4K imaging module:

Collect 4K ultra-high-definition photos and images and output them to a 4k monitor.

The exquisite images will make you more comfortable in academic exchanges and

doctor-patient communication.

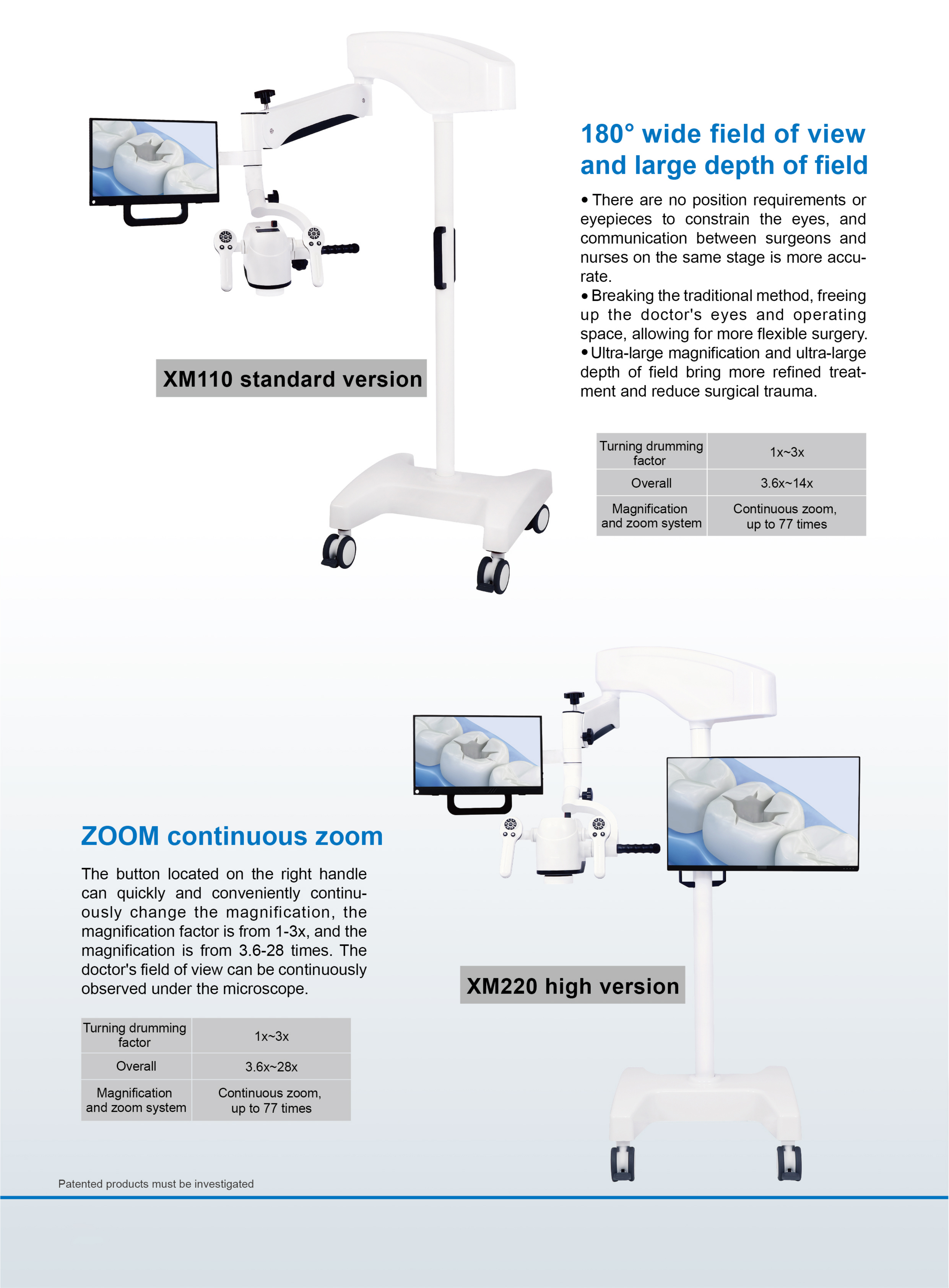

一、XM110 standard version

180° wide field of view and large depth of field：

1. There are no position requirements or eyepieces to constrain the eyes, and

communication between surgeons and nurses on the same stage is more accurate.

2. Breaking the traditional method, freeing up the doctor's eyes and operating space,

allowing for more flexible surgery.

3. Ultra-large magnification and ultra-large depth of field bring more refined treatment

and reduce surgical trauma.

4. Turning drumming factor: 1x~3x

5. Overall: 3.6x~14x

6. Magnification and zoom system: Continuous zoom, up to 77 times

二、XM220 high version

ZO0M continuous zoom：

1. The button located on the right handle can quickly and conveniently continuously change

the magnification, the magnification factor is from 1-3x, and the magnification is from 3.6-28 times.

The doctor's field of view can be continuously observed under the microscope.

2. Turning drumming factor: 1x~3x

3. Overall: 3.6x~28x

4. Magnification and zoom system: Continuous zoom, up to 77 times

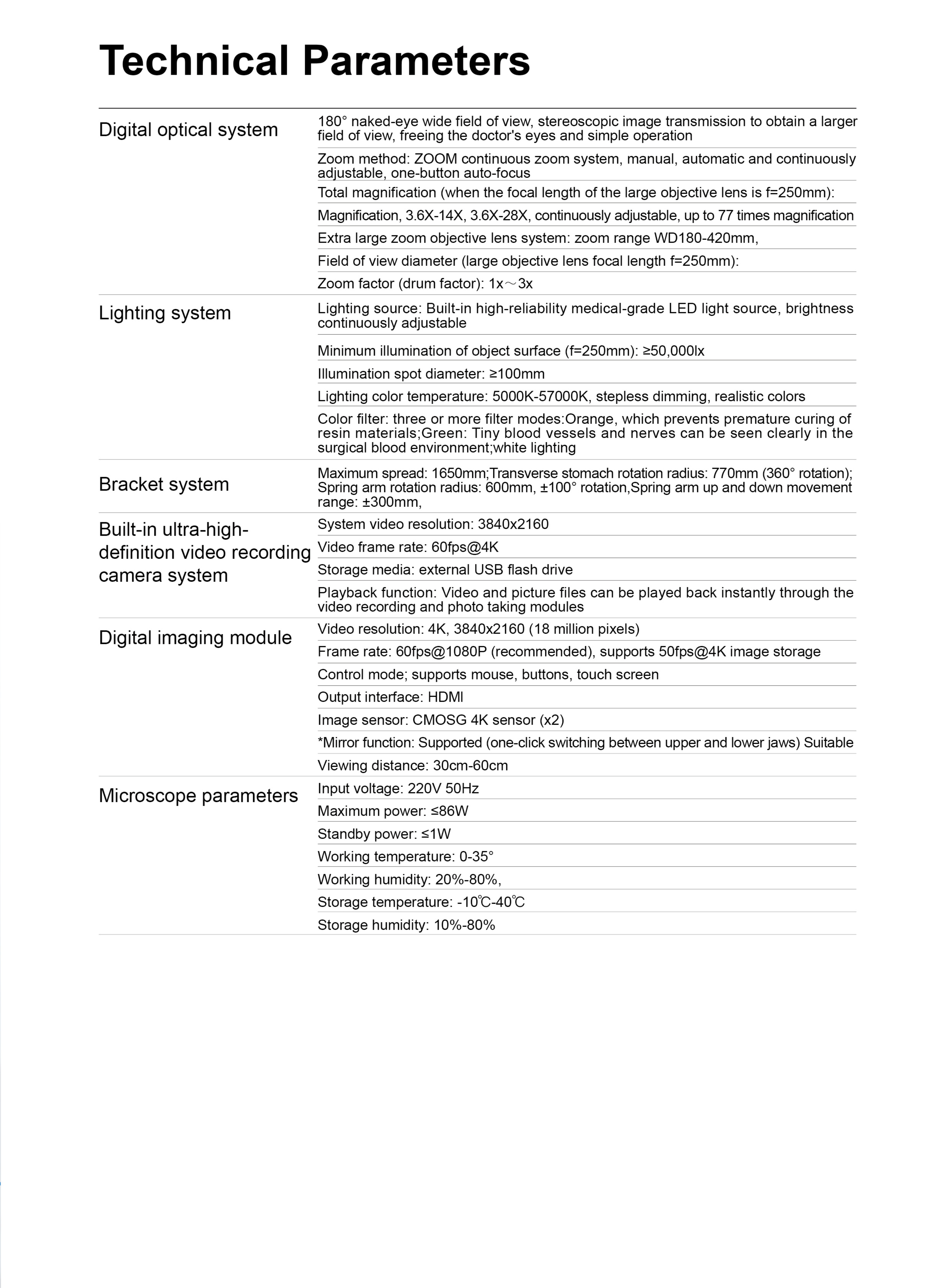

Technical Parameters

一、

Digital optical system：

1. 180° naked-eye wide field of view, stereoscopic image transmission to obtain a larger

field of view, freeing the doctor's eyes and simple operation.

2. Zoom method: ZOOM continuous zoom system, manual, automatic and continuously

adiustable, one-button auto-focus.

3. Total magnification (when the focal length of the large objective lens is f=250mm):

Magnification, 3.6X-14X, 3.6X-28X, continuously adjustable, up to 77 times magnification

4. Extra large zoom objective lens system: zoom range WD180-420mm,

5. Field of view diameter (large objective lens focal length f=250mm):

Zoom factor(drum factor): 1x~3x

二、

Lighting system：

1. Lighting source: Built-in high-reliability medical-grade LED light source, brightness continuously adiustable

2. Minimum illumination of object surface (f=250mm): >50.000lx

3. lllumination spot diameter: >100mm

4. Lighting color temperature: 5000K-57000K, stepless dimming, realistic colors

5. Color filter: three or more filter modes: Orange, which prevents premature curing of

resin materials; Green: Tiny blood vessels and nerves can be seen clearly in the

surgical blood environment; white lighting.

三、Bracket system：

1. Maximum spread: 1650mm; Transverse stomach rotation radius: 770mm (360° rotation);

Spring arm rotation radius: 600mm, ±100° rotation, Spring arm up and down movement

range: ±300mm,

四、Built-in ultra-high-definition video recording camera system:

1. System video resolution: 3840x2160

2. Video frame rate: 60fps@4K

3. Storage media: external USB flash drive

4. Playback function: Video and picture files can be played back instantly through the

video recording and photo taking modules

五、Digital imaging module：

1. Video resolution: 4K,3840x2160(18 million pixels)

2. Frame rate:60fps@1080P(recommended), supports 50fps@4K image storage

3. Control mode, supports mouse, buttons, touch screen

4. Output interface: HDMl

5. lmage sensor: CMOSG 4K sensor (x2)

6. *Mirror function: Supported (one-click switching between upper and lower jaws) Suitable

7. Viewing distance: 30cm-60cm

六、Vicroscope parameters：

1. Input voltage: 220V 50Hz

2. Maximum power: ≤86W

3. Standby power: ≤1W

4. Working temperature: 0-35°

5. Working humidity:20%-80%,

6. Storage temperature:-10℃-40℃

7. Storage humidity:10%-80%
