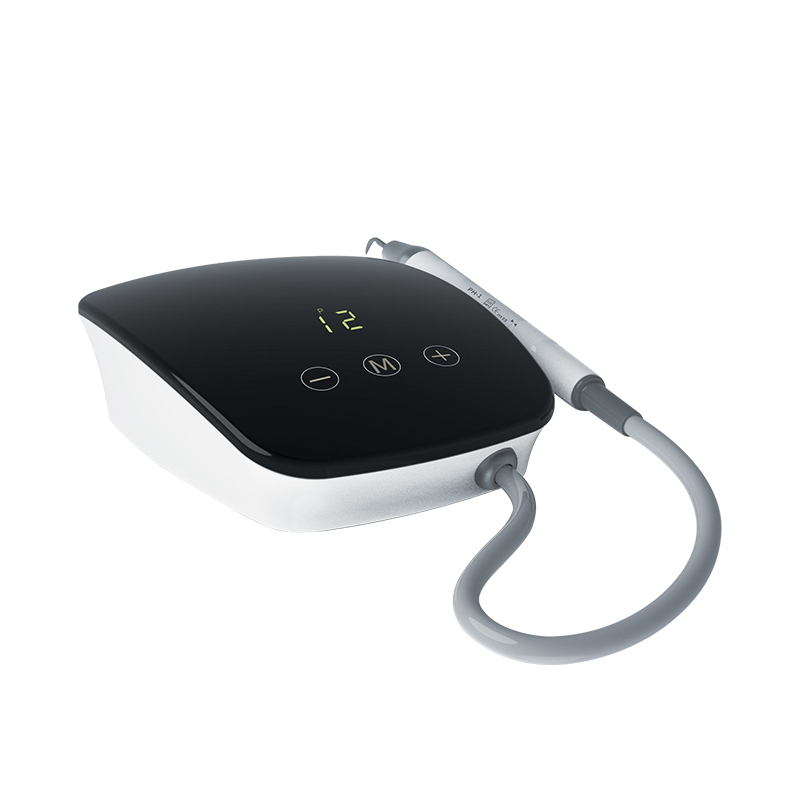

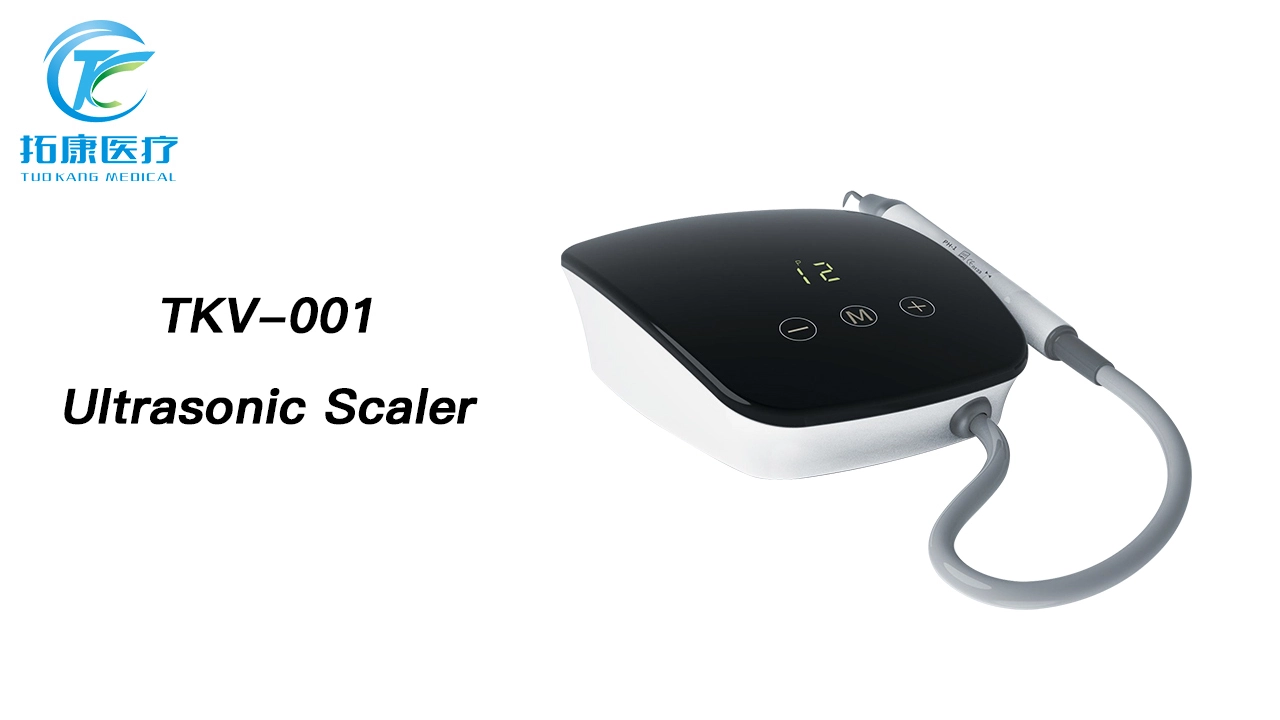

TKV-001 VRN Dental Ultrasonic Scaler Portable Tooth Cleaning Machine
1.1 Overview

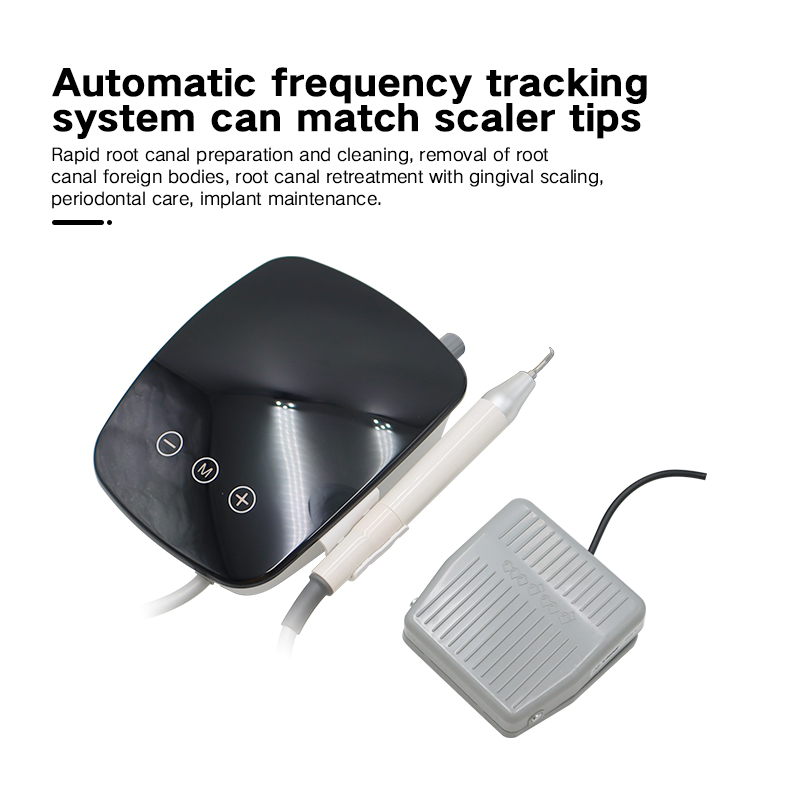

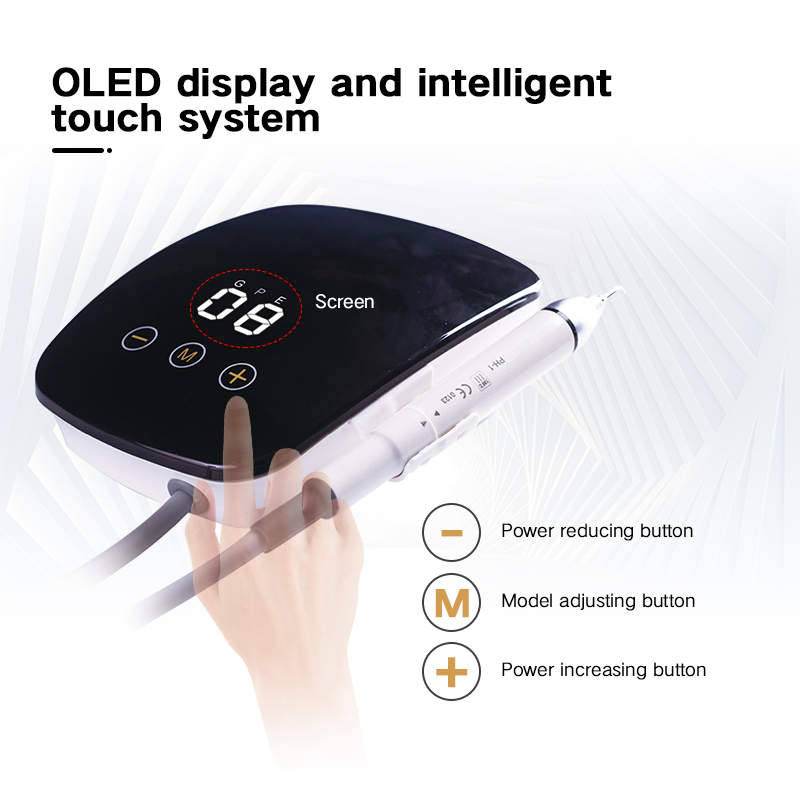

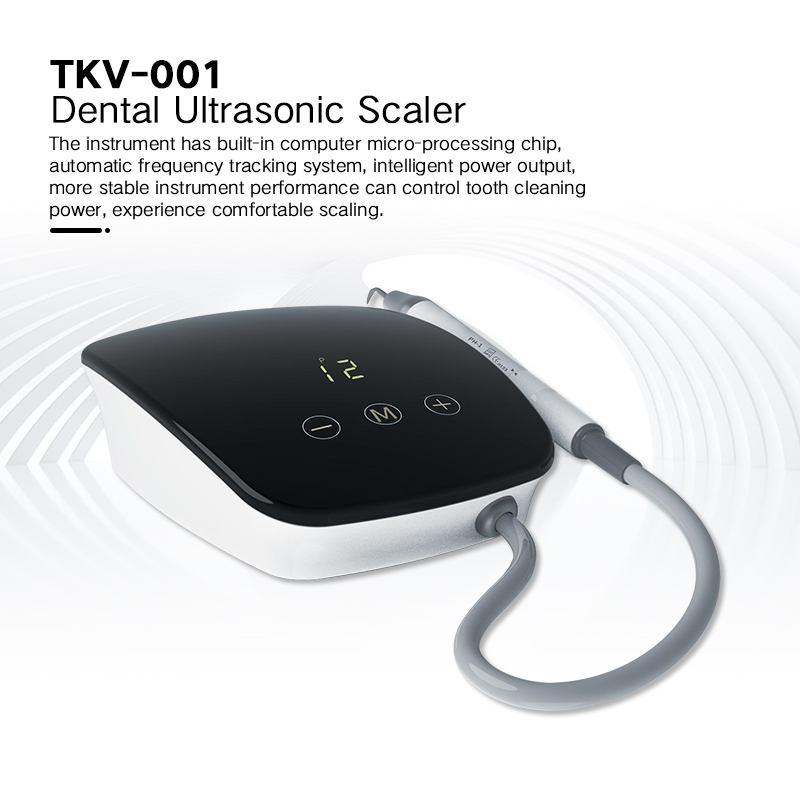

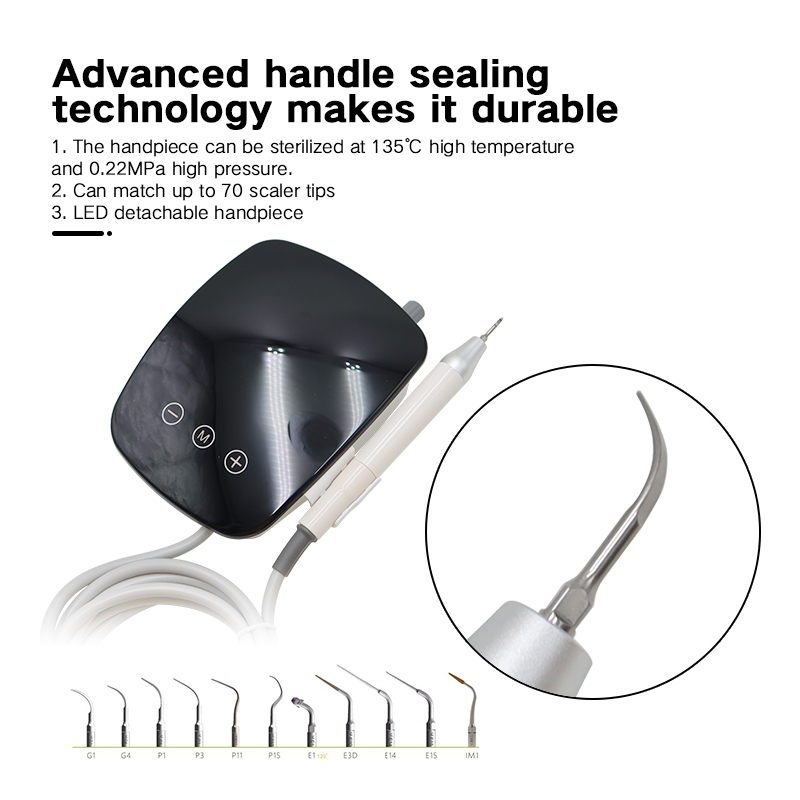

The TKV-001 dental ultrasonic scaler tooth cleaning machine adopts automatic frequency tracking system to search the best working state automatically, the instrument's performance is more stable, and the handpiece can be sterilized at 135℃ high temperature and 0.22MPa high pressure. The Instrument has the built-in computer microprocessor chip, which can control the power of tooth cleaning to make the tooth cleaning become more comfortable.
1.2 Product Structure and Composition

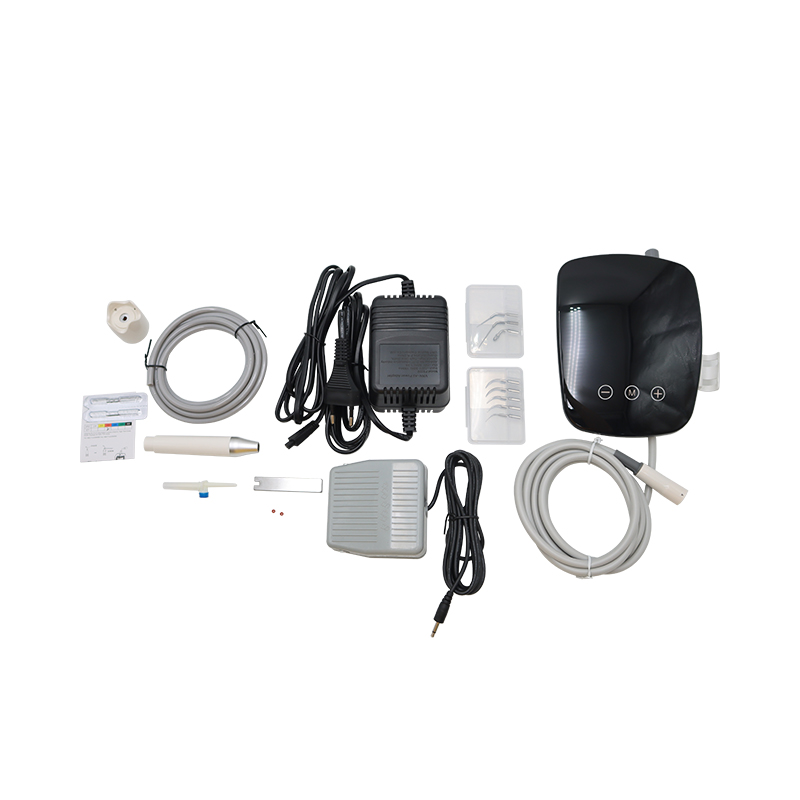

Ultrasonic dental cleaning machine is mainly composed of functional control circuit, fluid circuit, handle, power adapter, working point and pedal switch (wired and/or wireless).
1.3 Product Application scope
It is used to remove calculus, plaque and other tooth stains on the surface of oral teeth, remove the calculus and plaque in the periodontal pocket, clean and swing the root canal of teeth.
Product Technical Parameters
1. Power Supply Input: 220V ± 22V to 50/60 Hz
2. Host Input: AC 24V
3. Primary tip vibration excursion:
Minimum, 1μm, deviation -50%
Maximum, 100μm, deviation +50%
4. Half-excursion force:
Minimum, 0.1N, deviation -50%
Maximum, 2 N, deviation +50%
5. Tip vibration frequency: 28kHz ± 3kHz
6. Input power: 40VA to 60VA
7. Ultrasonic output power: 3W~20W
8. Fuse: T3AL 250V
9. Inlet pressure: 0.1bar ~ 5bar (0.01MPa ~ 0.5MPa)
10. Main unit weight: 0.75kg
11. Power supply weight: 0.86kg
12. Outline dimensions: 48mm×121mm×170mm
13. Operation Mode: Continuous Operation
14. Degree of protection against electric shock: Type B applied part
15. Degree of protection against liquid inflow: common equipment (IPX0), the pedal switch is the waterproof equipment (IPX1)
16. Degree of safety when used with flammable anesthetic gases mixed with air or with oxygen or nitrogen oxide: non-AP, APG type equipment
17. Normal operating conditions:
A) Environment temperature: 5℃~40℃
B) Relative humidity: ≤ 80%
C) Atmospheric pressure: 70kPa ~106kPa
18. The Supply voltage's application range: 220V ± 22V~, 50/60 Hz
