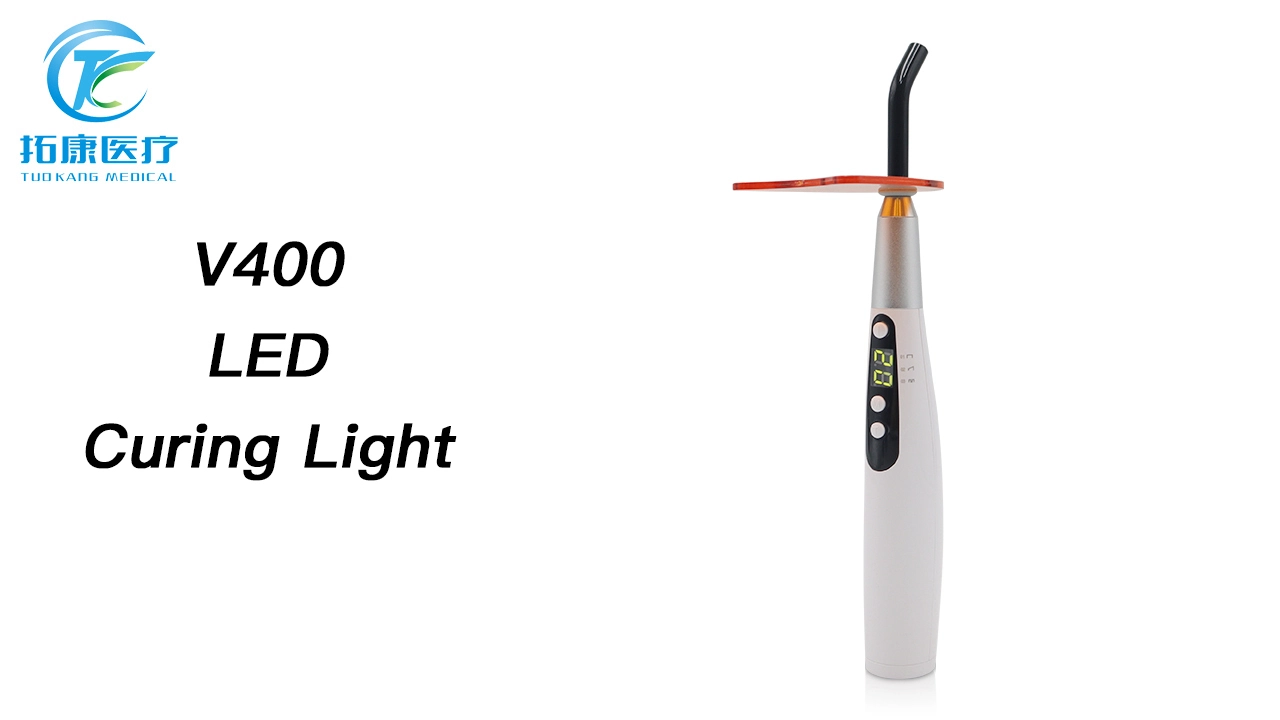

V400 Dental LED Light Curing Device adopts the principle of ray radiation to solidify the light-sensitive resin by shooting at it in a short time.
It is used to shoot on the restorative material based on polymer and solidify it in a short time.
TK Dental
Product features:
a) Constant light intensity, the solidification effect is not affected by the consumption of remaining power.
b) Super capacity battery. A full charge can be used for more than 700 times continuously under 10s working mode.
c) Ergonomics design, excellent and comfortable handle feel during the treatment
d) Auto power-off
Three different modes:
Full power, Progressive, Pulse
1.Full power: The screen shows 01, the blue light radiates in full power. (recommending mode for clinical)
2.Progressive: The screen shows 02, the blue light power increase stronger continually, after 5 seconds reaches to the highest power.
3.Pulse: The screen shows 03, the blue light works on the pulse condition.

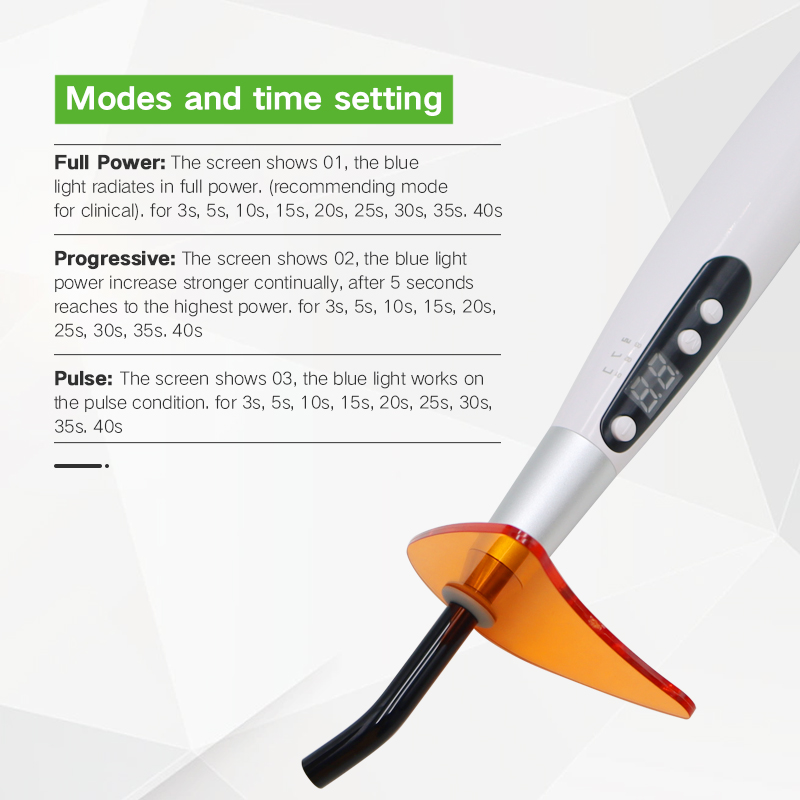

Modes and time setting
Full Power: The screen shows 01,
the bluelight radiates in full power. (recommending modefor clinical).for 3s,5s,10s,15s,20s,25s,30s, 35s,40s
Progressive: The screen shows 02,
the blue lightpower increase stronger continually, after 5 secondsreaches to the highest power. for 3s,5s，10s，15s, 20s,25s,30s,35s.40s
Pulse: The screen shows 03,
the blue light works onthe pulse condition. for 3s, 5s, 10s, 15s, 20s, 25s, 30s,35s.40s

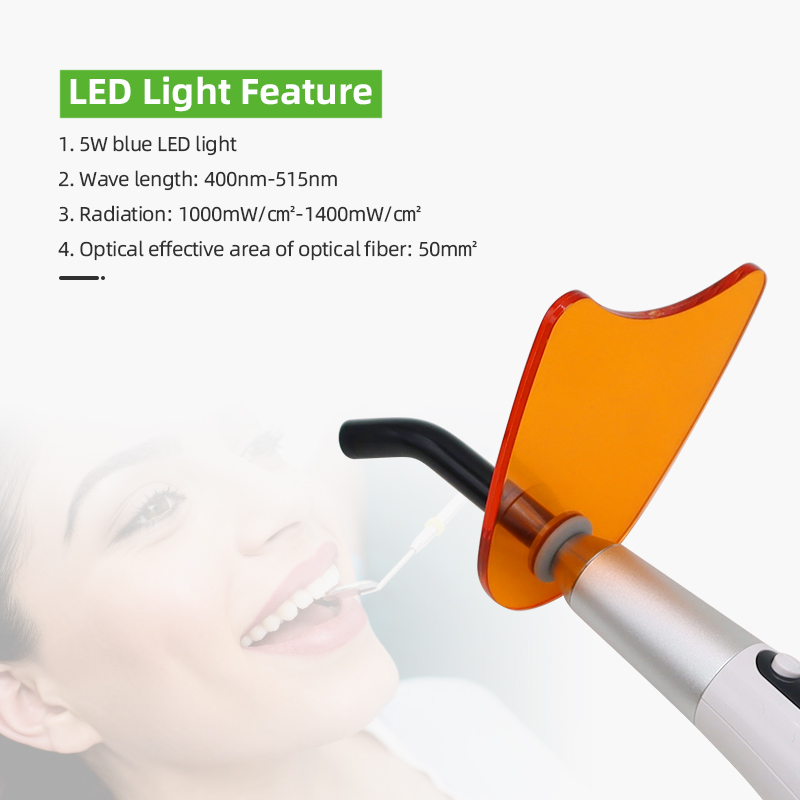

LED Light Feature
1. 5w blue LED light
2.Wave length:400nm-515nm
3.Radiation:1000mW/cm2-1400mW/cm²
4. Optical effective area of opticalfiber: 50mm²

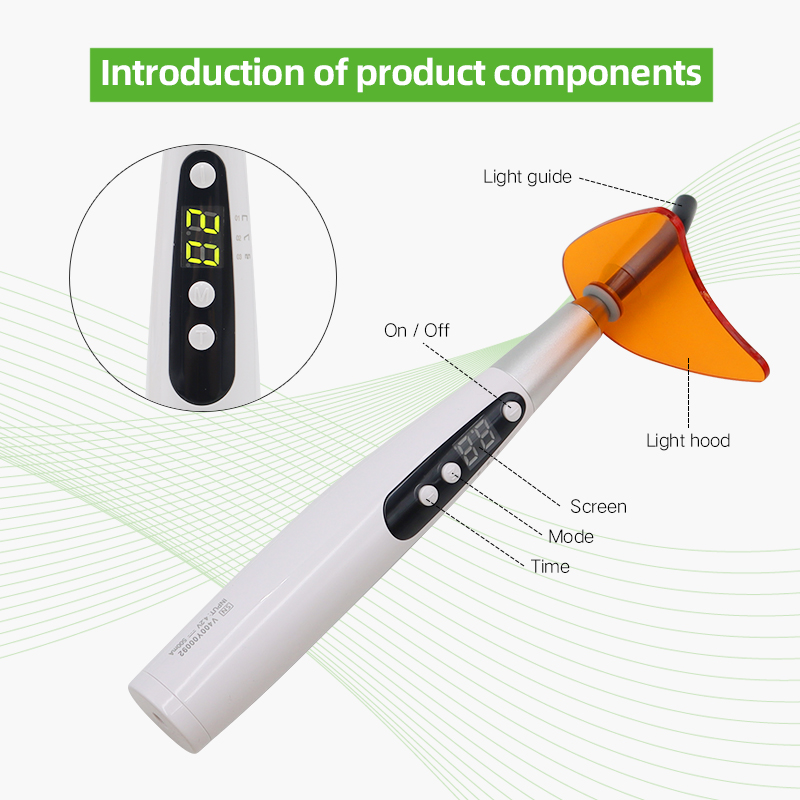

Introduction of product components
Technical Parameters
Volume: 33mm x 29mm x 246mmNet weight: 132gGross weight: 300gRadiation:1000mW/cm-1400mW/cmOptical effective area of optical fiber: 50mm
Power Supply1. Chargeable battery2. Standard voltage: 3.7V,3.Capacity: 2200 mAh, withprotection for overvoltage, overcurrent andshort-circuits.
Power Adaptor1.AC 100-240V 50/60Hz2.Input power: 10VA3. Out power: DC 4.2V 0.5A
LED Light Feature:
5W blue LED light
2.Wave length:400nm-515nm
3.Class: Il class
4.Accessible emission limit(AEL): 3.9*10(-3) J
