Dental Light Cure Lamp Composite Resin Machine LED UV Glue Curing Light Dental Clinic-TK Dental

TK Dental

Scope of application: suitable for dentistry, used to cure light-curing materials.

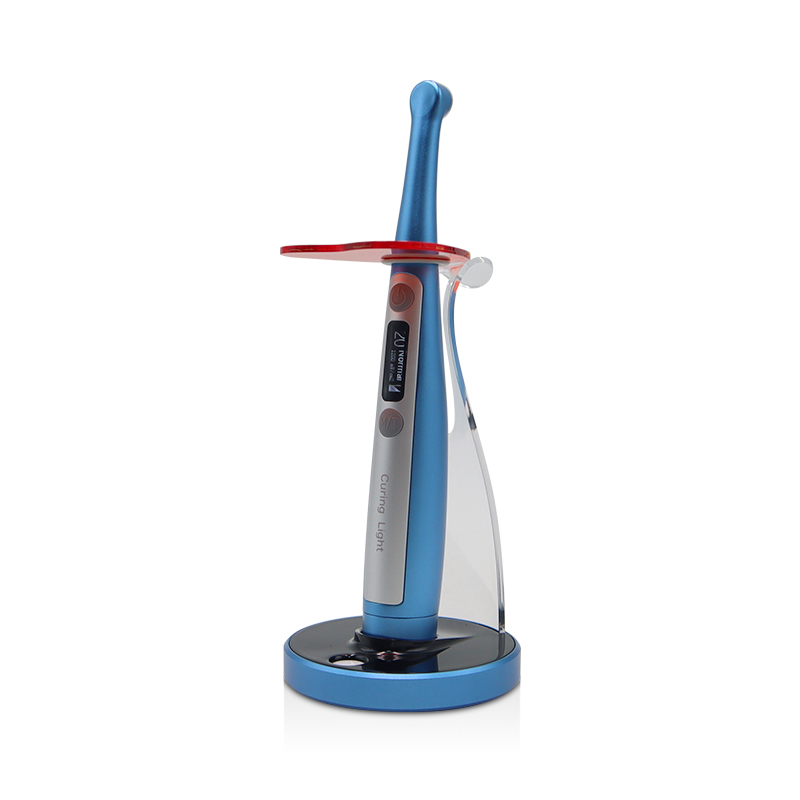

Product composition: main unit, light hood, charging base, battery and power adapter, etc.

The features of this product are:

1.1 A variety of different working modes and working hours can be set.

1.2 Constant light power output, the decrease of battery power will not affect the curing effect.

1.3 Large-capacity battery. While full charged, under 10 seconds of light per time, it can be used continuously for more than 500 times.

1.4 Ergonomics design, excellent and comfortable handle feel during the treatment.

1.5 Built-in light meter available in the charging base.

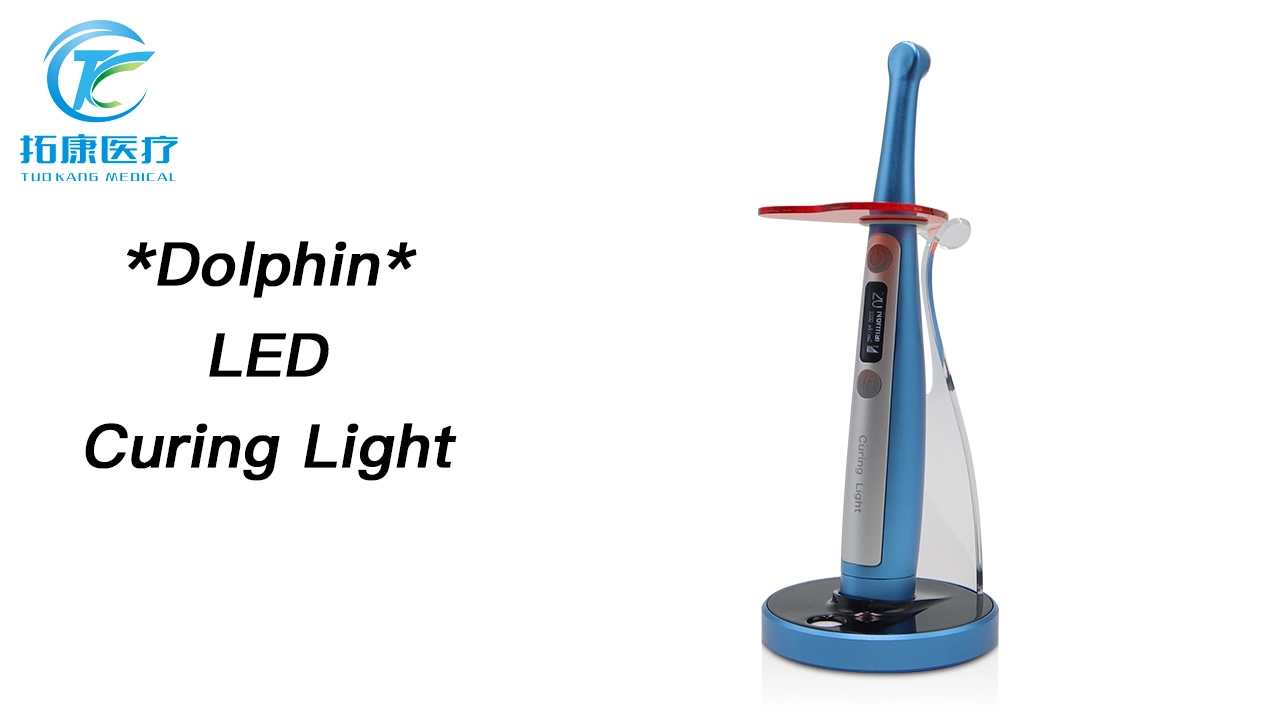

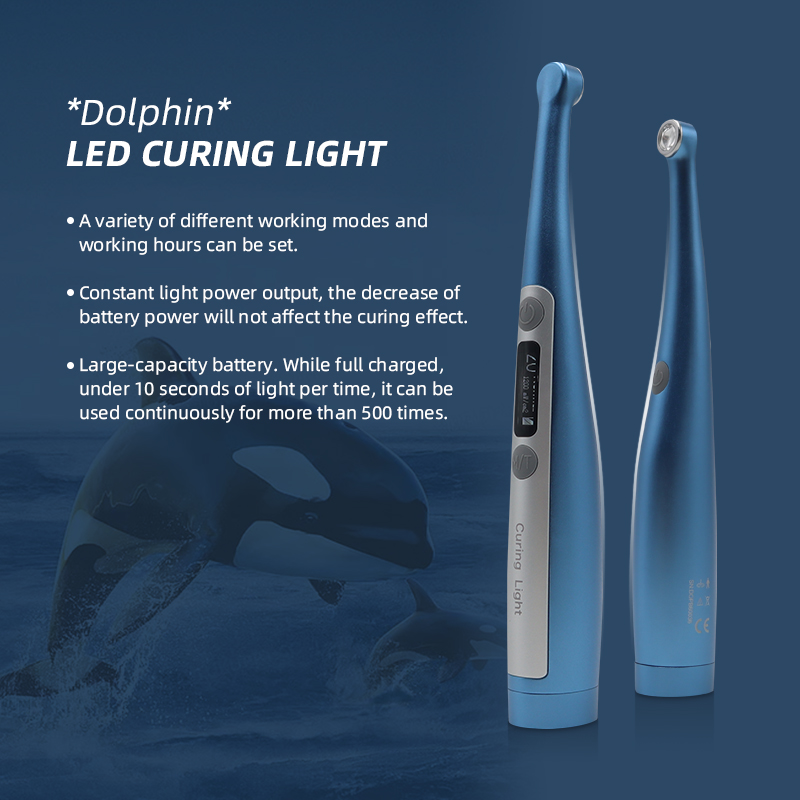

Dolphin LED CURING LIGHT

A variety of different working modes andworking hours can be set.

Constant light power output, the decrease ofbattery power will not affect the curing effect.

Large-capacity battery. While full chargedunder 10 seconds of light per time, it can beused continuously for more than 500 times

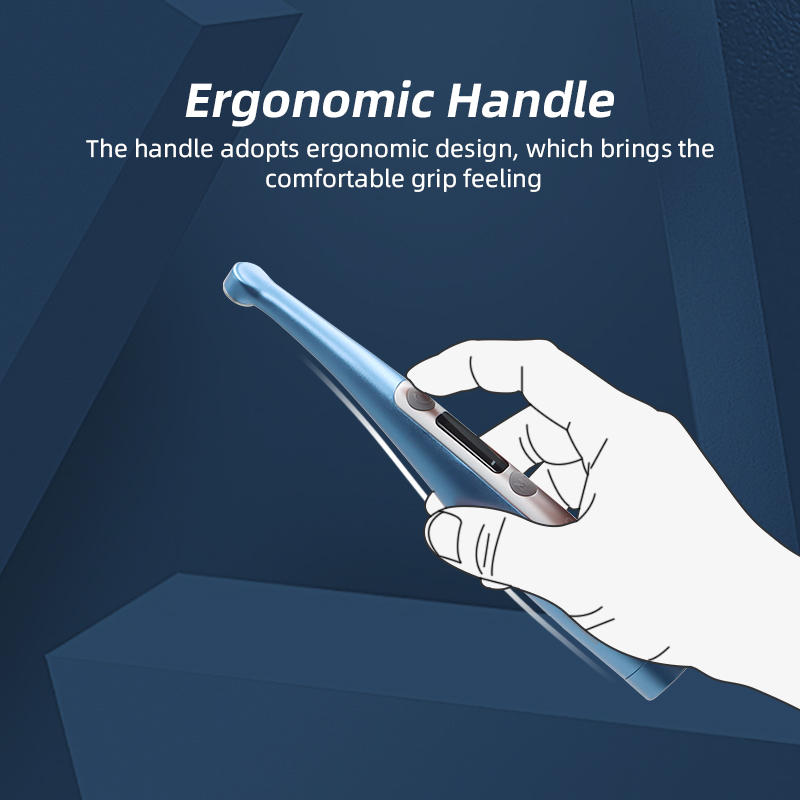

Ergonomic Handle

The handle adopts ergonomic design, which brings thecomfortable grip feeling

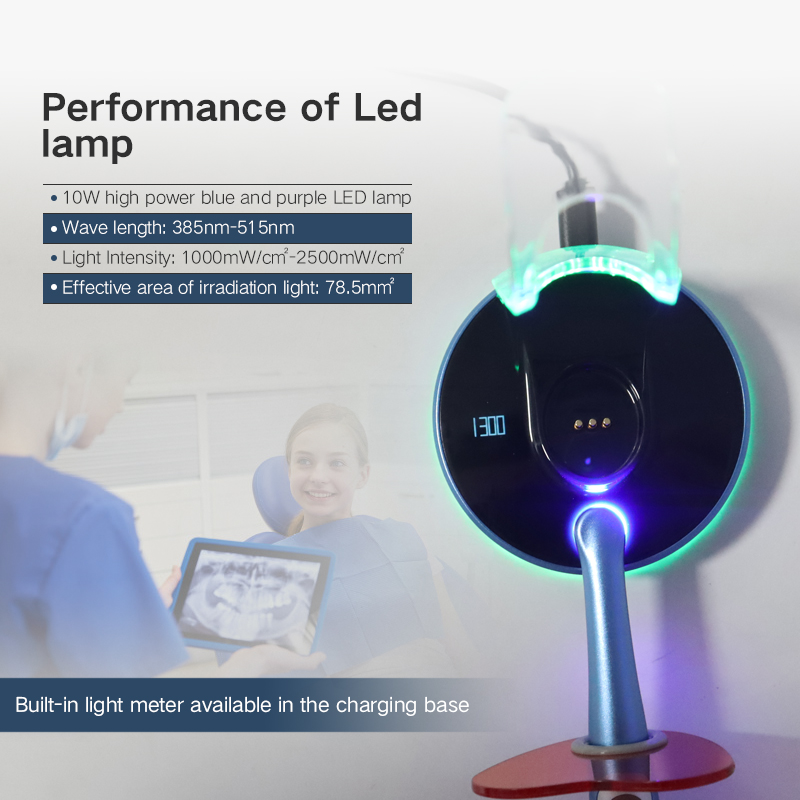

Performance of Led lamp

10W high power blue and purple LED lamp

Wave length: 385nm-515nm

Light Intensity:1000mW/cm-2500mW/cm²

Effective area of irradiation light: 78.5mm²

Built-in light meter available in the charging base

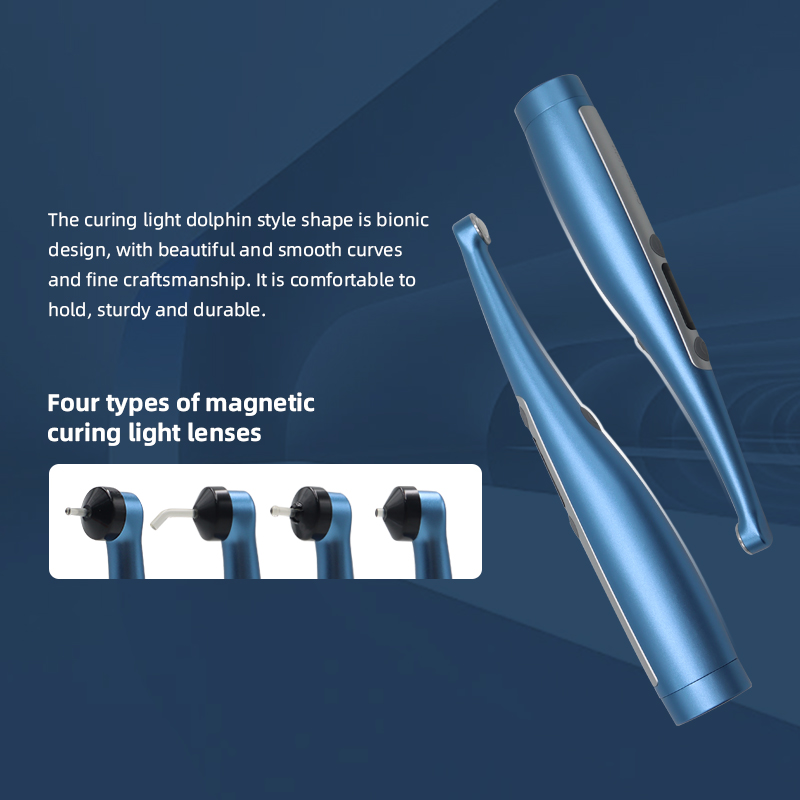

The curing light dolphin style shape is bionicdesign, with beautiful and smooth curvesand fine craftsmanship. lt is comfortable tohold, sturdy and durable.

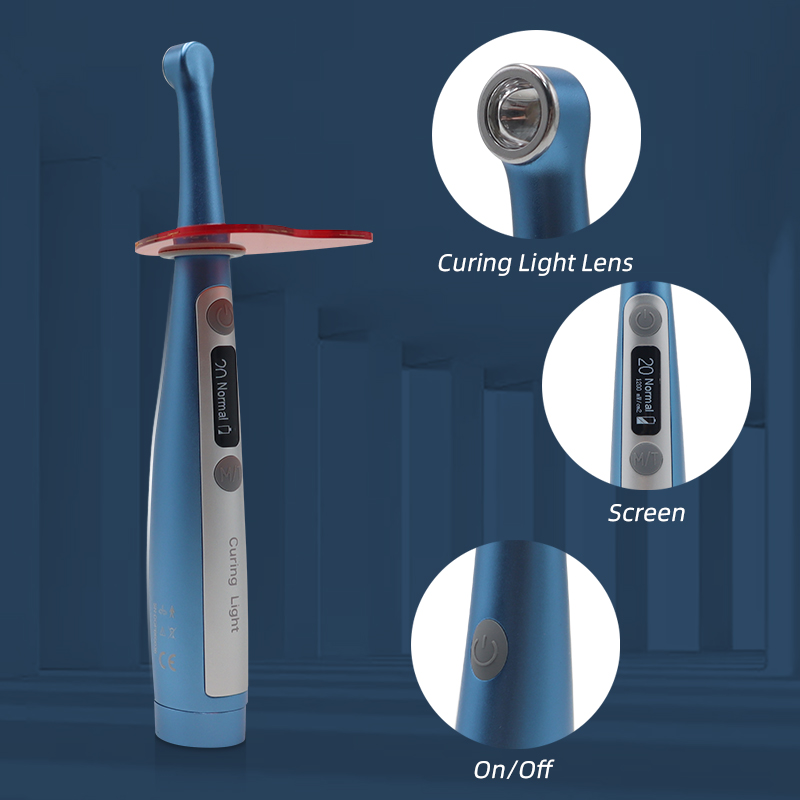

Four types of magneticcuring light lenses

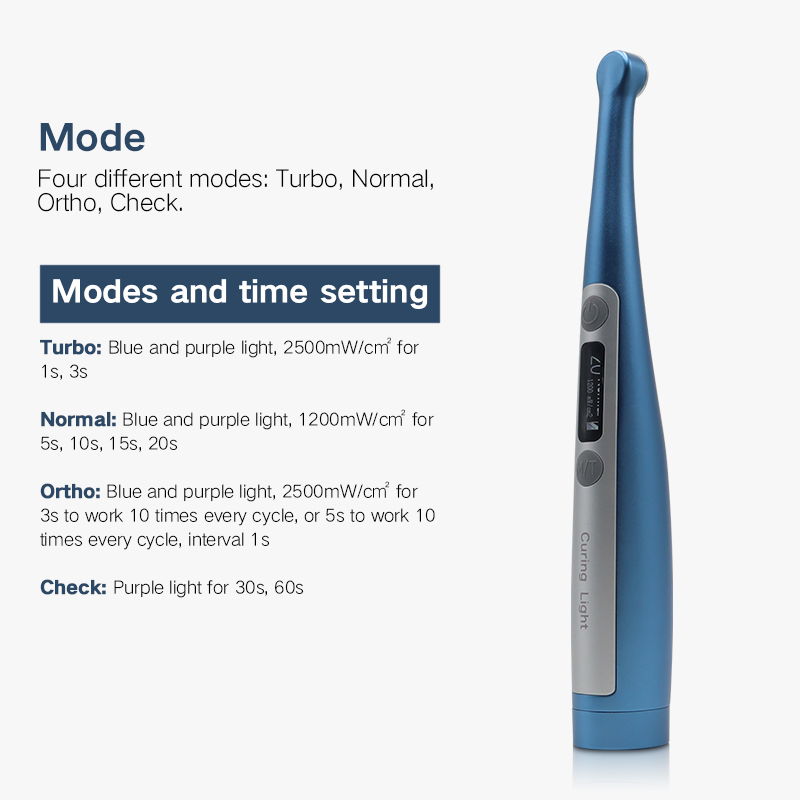

Mode

Four different modes: Turbo, Normal，Ortho, Check.

Modes and time setting

Turbo: Blue and purple light, 2500mW/cm' for1s, 3s

Normal: Blue and purple light, 1200mW/cm² for 5s,10s,15s,20s

Ortho: Blue and purple light, 2500mW/cm² for3s to work 10 times every cycle,

or 5s to work 10times every cycle, interval 1s

Check: Purple light for 30s, 60s

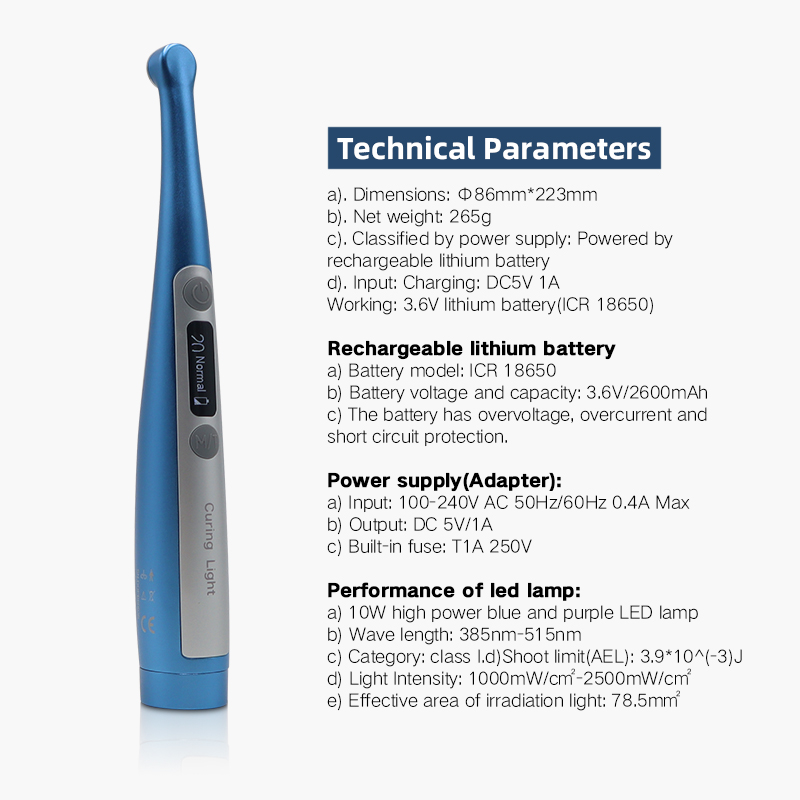

Technical Parameters

a) Dimensions:φ86mm*223mm

b) Net weight: 265g

c) Classified by power supply: Powered by rechargeable lithium battery

d) Input: Charging: DC5V 1A

Working: 3.6V lithium battery(ICR 18650)

Rechargeable lithium battery

a) Battery model:ICR 18650

b) Battery voltage and capacity: 3.6V/2600mAh

c) The battery has overvoltage, overcurrent andshort circuit protection.

Power supply(Adapter):

a) Input: 100-240V AC 50HZ/60Hz 0.4A Max

b) Output: DC 5V/1A

c) Built-in fuse: T1A 250V

Performance of led lamp:

a) 10W high power blue and purple LED lamp

b) Wavelength: 385nm-515nm

c) Category: class l.d)Shoot limit(AEL):3.9*10(-3)J

d) Light Intensity: 1000mW/cm-2500mW/cm²

e) Effective area of irradiation light: 785mm²

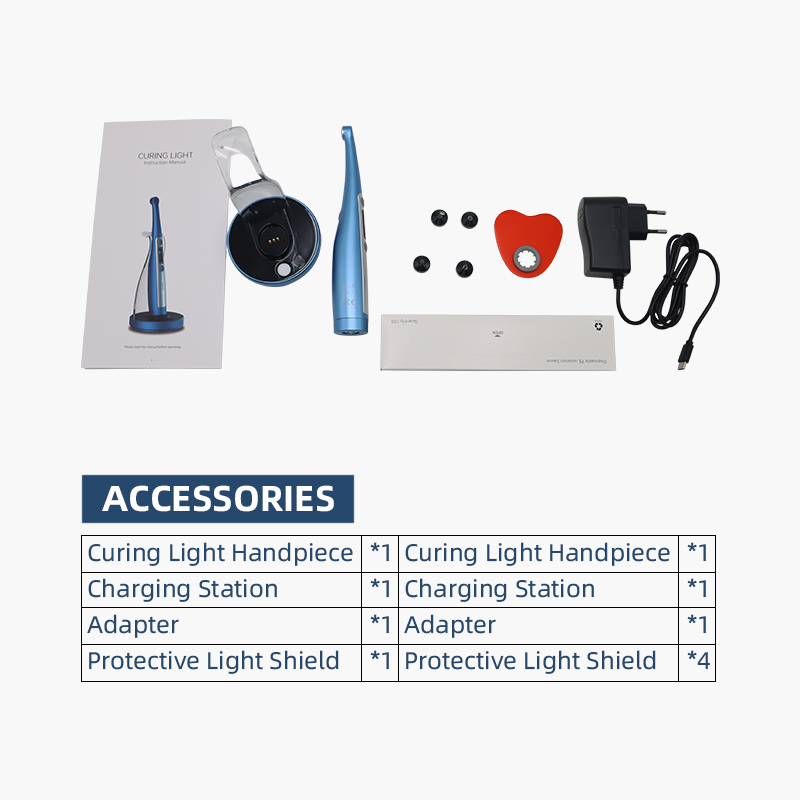

ACCESSORIES
