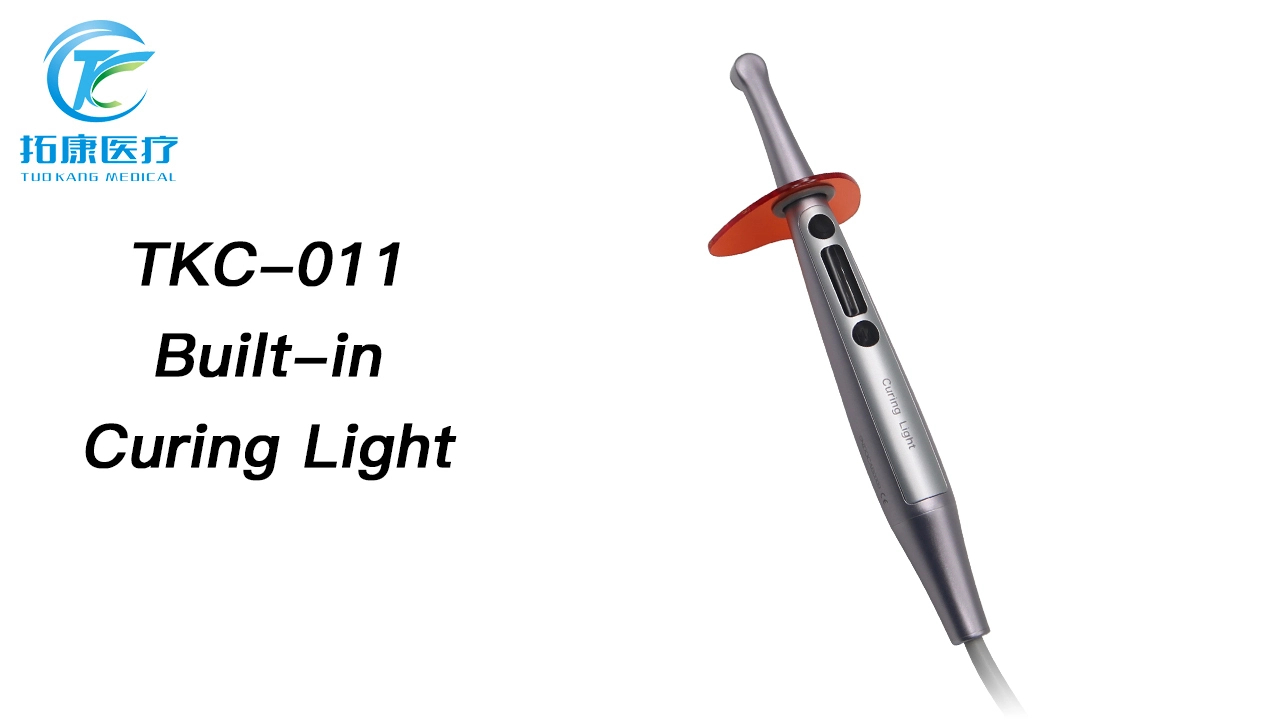

TKC-011 Dental Light Cure Lamp Composite Resin Machine LED UV Glue Curing Light Dental Cinlic-TK Dental
TK Dental
TKC-011 dental curing light uses the principle of light radiation to irradiate photosensitive resin in order to quickly cure it.
This product is intended for use in hospitals and dental clinics and it's used for prevention and treatment of dental complications of adults or children.
TK Dental

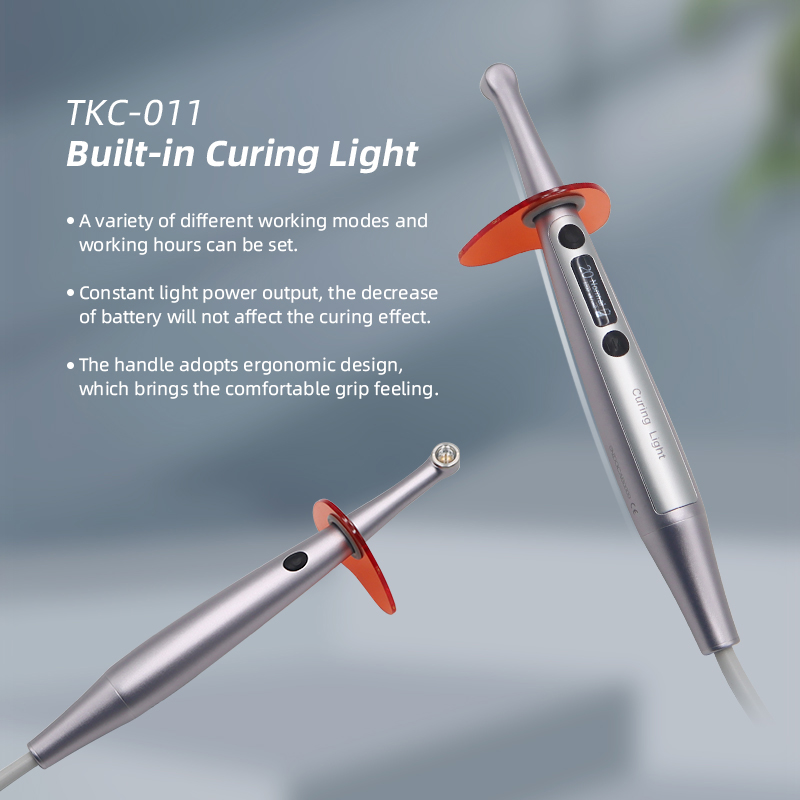

Features：
1. A variety of different working modes and working hours can be set.
2. Constant light power output, the decrease of battery will not affect the curing effect.

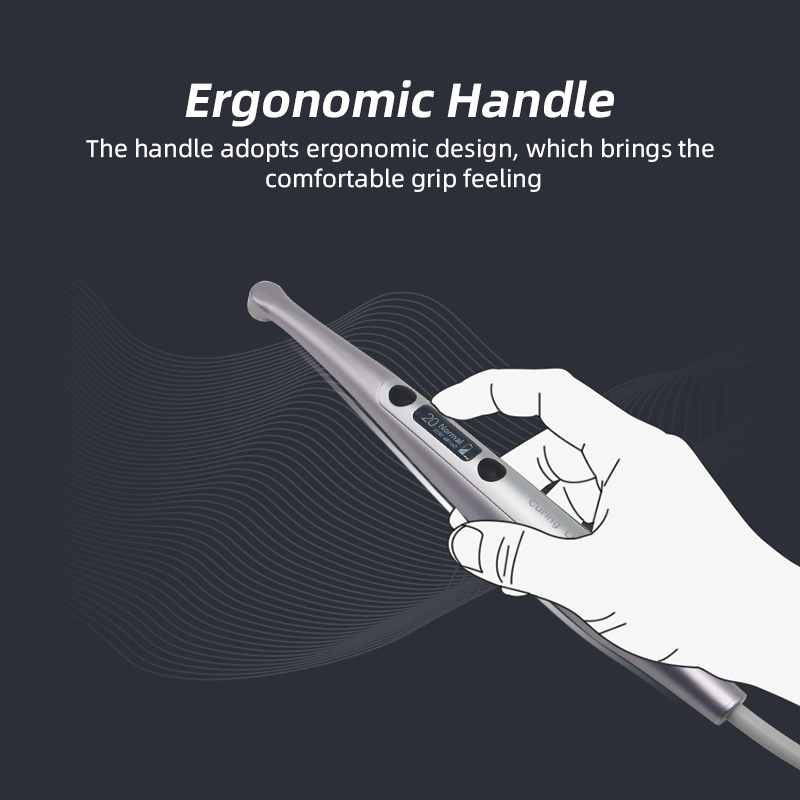

3. The handle adopts ergonomic design, which brings the comfortable grip feeling.

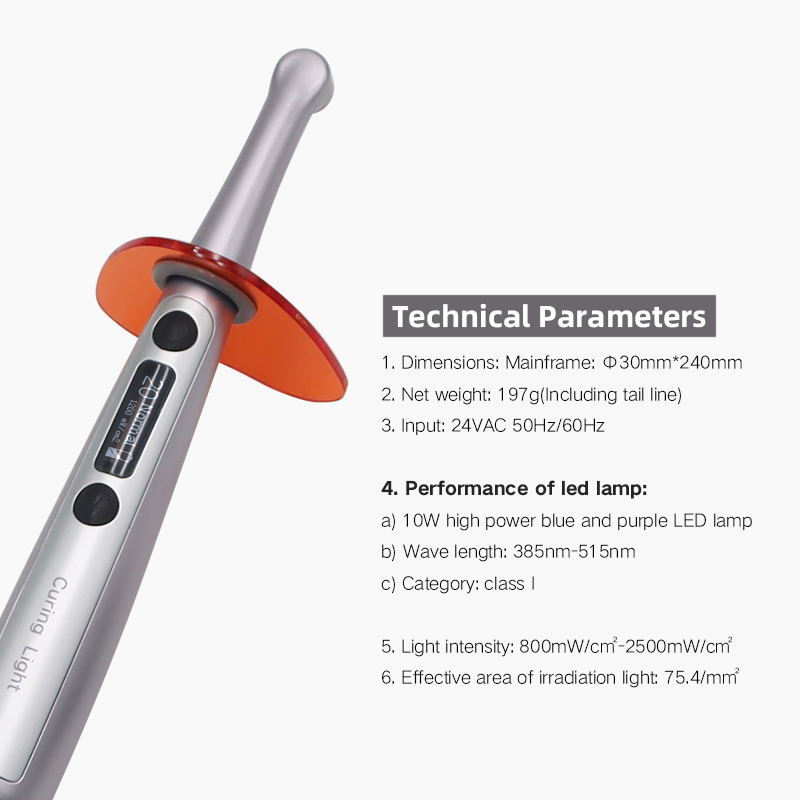

1. Dimensions: Mainframe: Φ30mm*240mm
2. Net weight: 197g(Including tail line)
3. Input: 24VAC 50Hz/60Hz
4. Performance of led lamp:
a) 10W high power blue and purple LED lamp
b) Wave length: 385nm-515nm
c) Category: class I
5. Light intensity: 800mW/c㎡-2500mW/c㎡

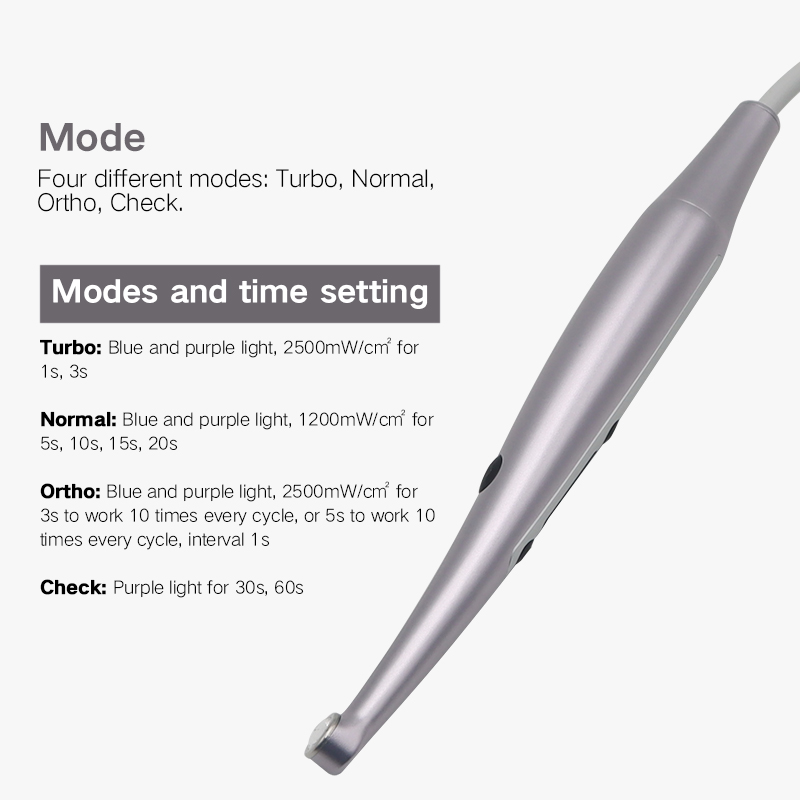

6. Modes and time setting:
TURBO mode：Blue and purple light, 2500mW/c㎡ for 1s, 3s
NORMAL mode: Blue and purple light, 1200mW/c㎡ for 5s, 10s, 15s, 20s
ORTHO mode: Blue and purple light, 2500mW/c㎡ for 3s to work 10 times every cycle, or 5s to work 10 times every cycle, interval 1s
CHECK mode: purple light for 30s, 60s
7. Effective area of irradiation light: 75.4/m㎡
