Customized TK-Ultra LED Endo Ultra Activator manufacturers From China -TK Dental
TK Dental Technical Parameter
High Frequency: 45,000Hz
Output Power Consumption: DC 5V, 1A
Battey: 1500mAh
Sterilized: 134℃ / 0.22mpa for 3mins
Net weight: 96g
Gross weight: 350g
Working mode: Normal mode / Powerful mode
Package size: L203mm x W88mm x H74mm

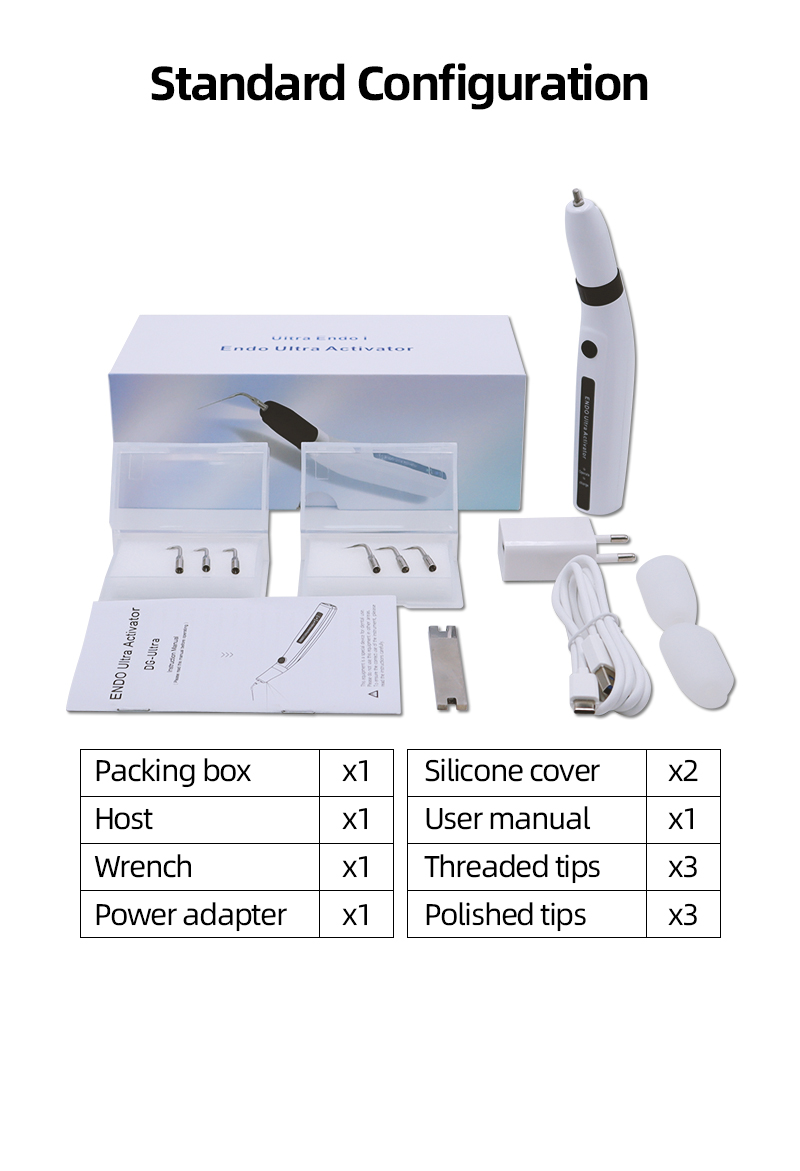

TK Dental Standard configuration:
Packing box*1
Host*1
Wrench*1
Power adapter*1
Silicone cover*2
User manual*1
Threaded tips*3
Polished tips*3

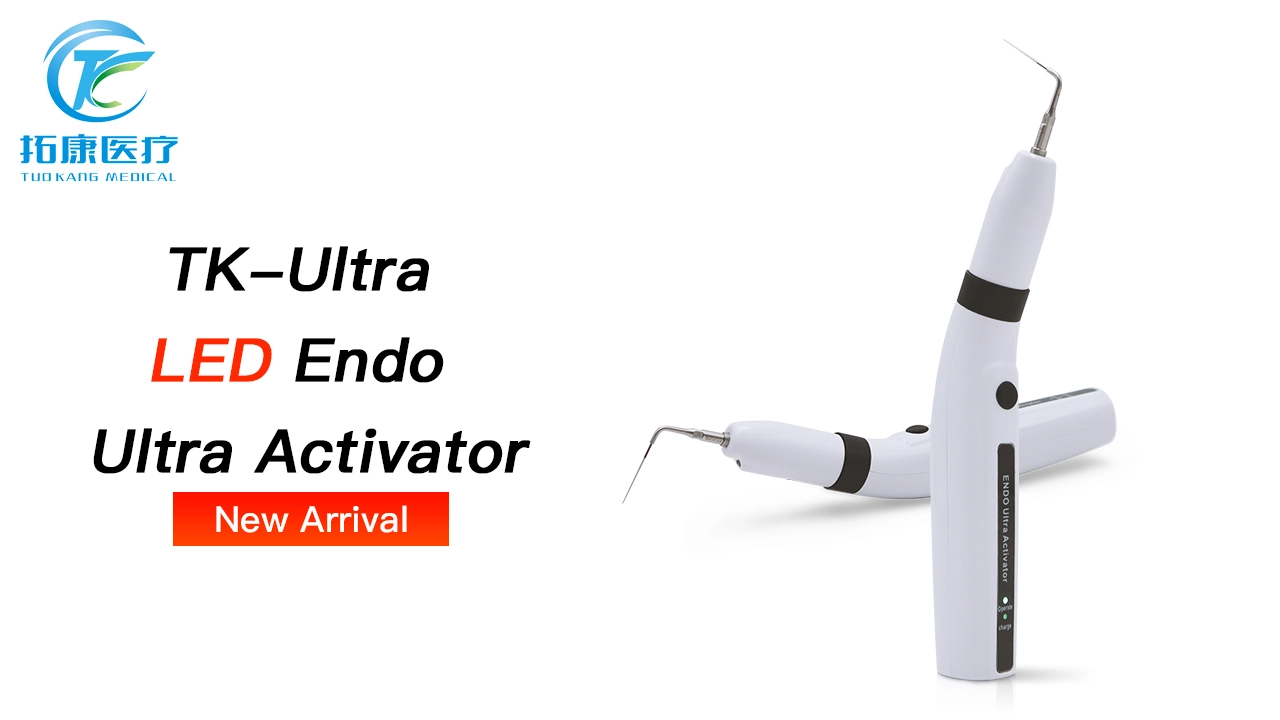

1.TK-Ultra LED Endo Ultra Activator
2. The endo ultra activator uses ultrasonic vibration to promote
the ultrasonic flow and cavitation effect of the liquid in the root canal,
so as to achieve better debris cleaning effect.
3. 30 seconds:Activate irrigants inside root canal
4. 45kHz:Vibration frequency
5. New Arrival
1. Smooth surface finish
2. 4.5 Hrs of continuous operation
3. Light weight & Ergonomic， Reduces the microbial load
4. 45,000Hz vibration frequency
5. Eliminates biofilm and smear layer
6. Ultrasonic activation device,LED indicator
Wireless design,
body only 96 grams
Wireless work, light weight, more flexible, ergonomic
1. LED Indicator: Clear vision
2. 360° Rotatable Head: Flexible operation
3. Charging Port
Working Tip
C21/02
For broken file remove:Polished pin (x3) S21/02
For Endo activator:Threaded needle (x3)
1. Long battery life, power prompt
2. Battery capacity 1500mAh, continuous working 4.5h
1. lt is easy to operate and of high efficiency
2. Only one mode switching button,
the machine can be started or turned off by this button.
3. Normal mode / Powerful mode
1. Small Amplitude
2. Root canal vibration amplitude is small, which will not hurt the root canal. Meanwhile, it is closer to the bottom of the root canal. Root canal vibration frequency is high, making irrigation more efficient.
3. TIP PARAMETERS:≤120μm: Output tip main vibration excursion.
45kHz ± 5kHz: Output tip vibration frequency.
