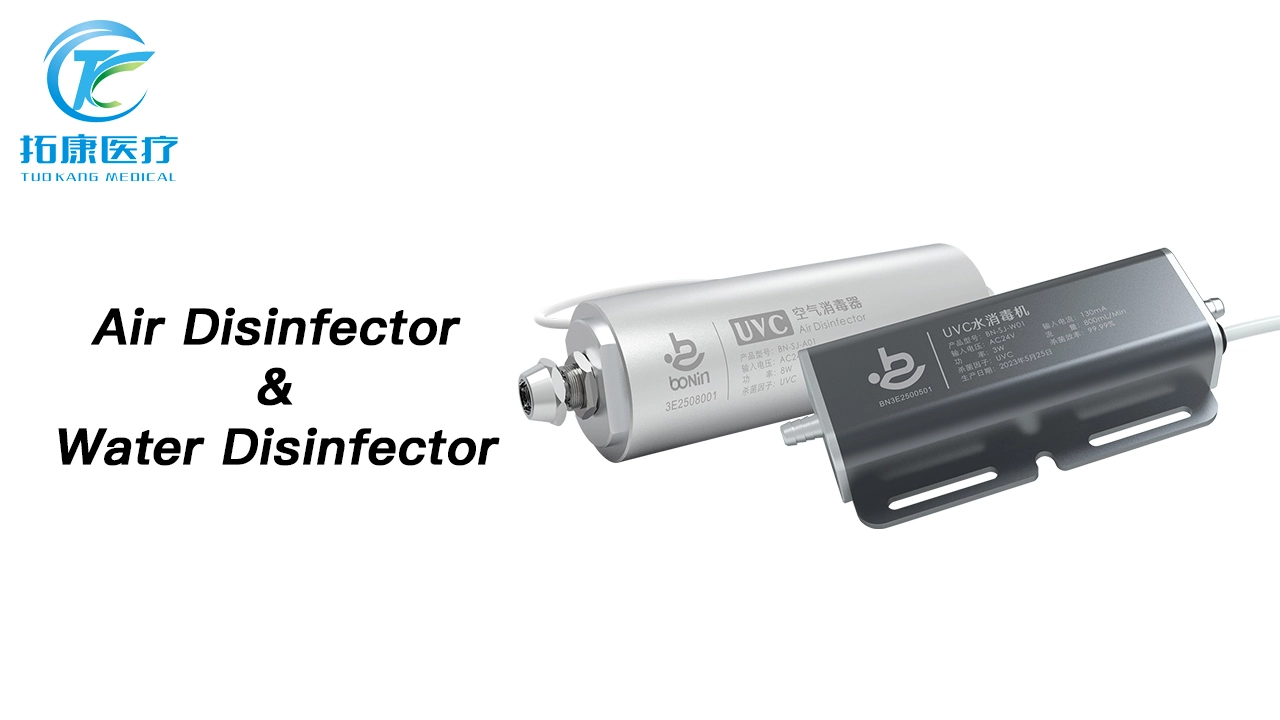

Quality Dentals Physical Sterilization Water Disinfector Deep UV Overflow for Dentist Chairs dentistry Equipment-TK

Product Details

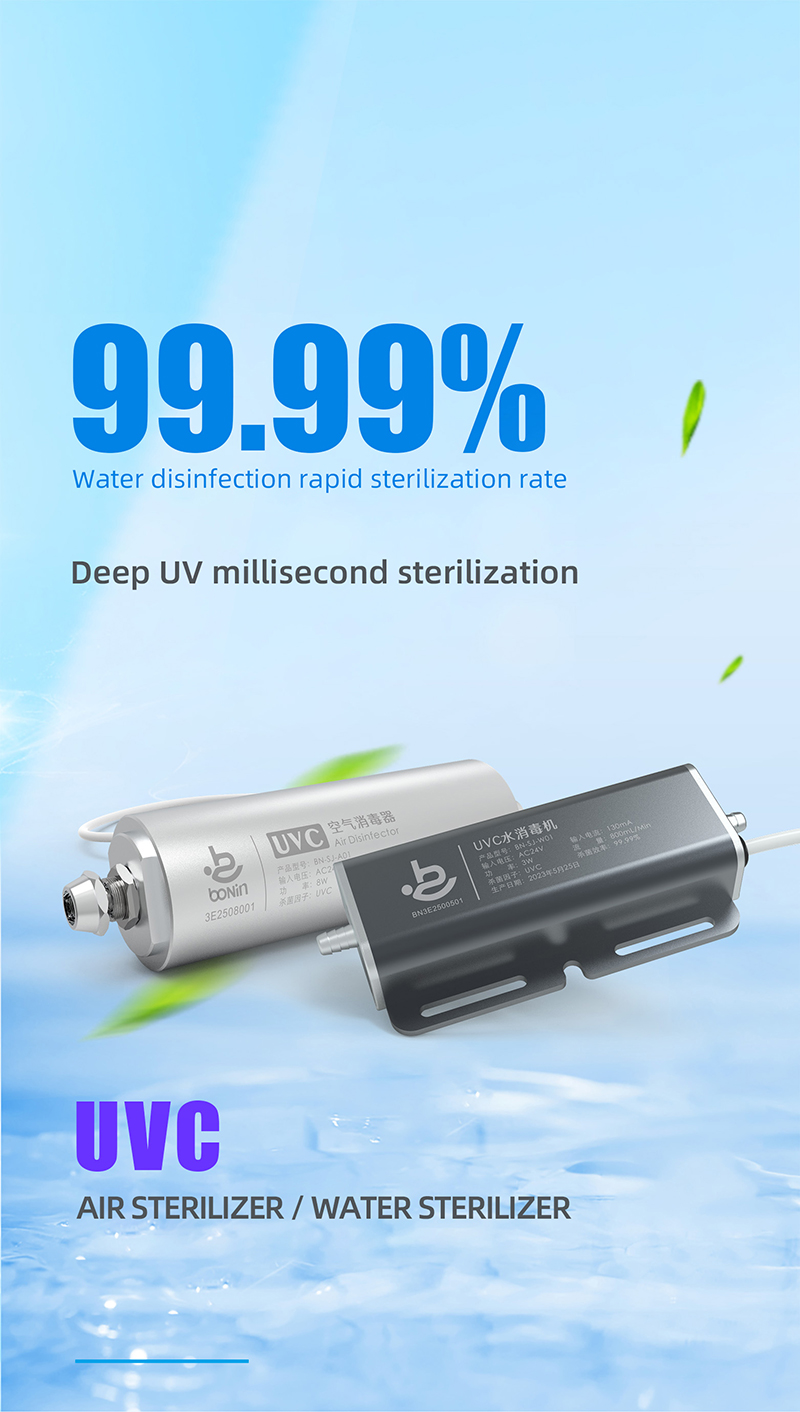

1. 99.99% Water disinfection rapid sterilization rate

2. Deep UV millisecond sterilization

3.UVC Air sterilizer / Water sterilizer

1. Deep ultraviolet rays

2. High efficiency and

rapid sterilization

3. High power

UV LED chip

4. Safe and reliable

5. Long service life

6. Hard metal fuselage

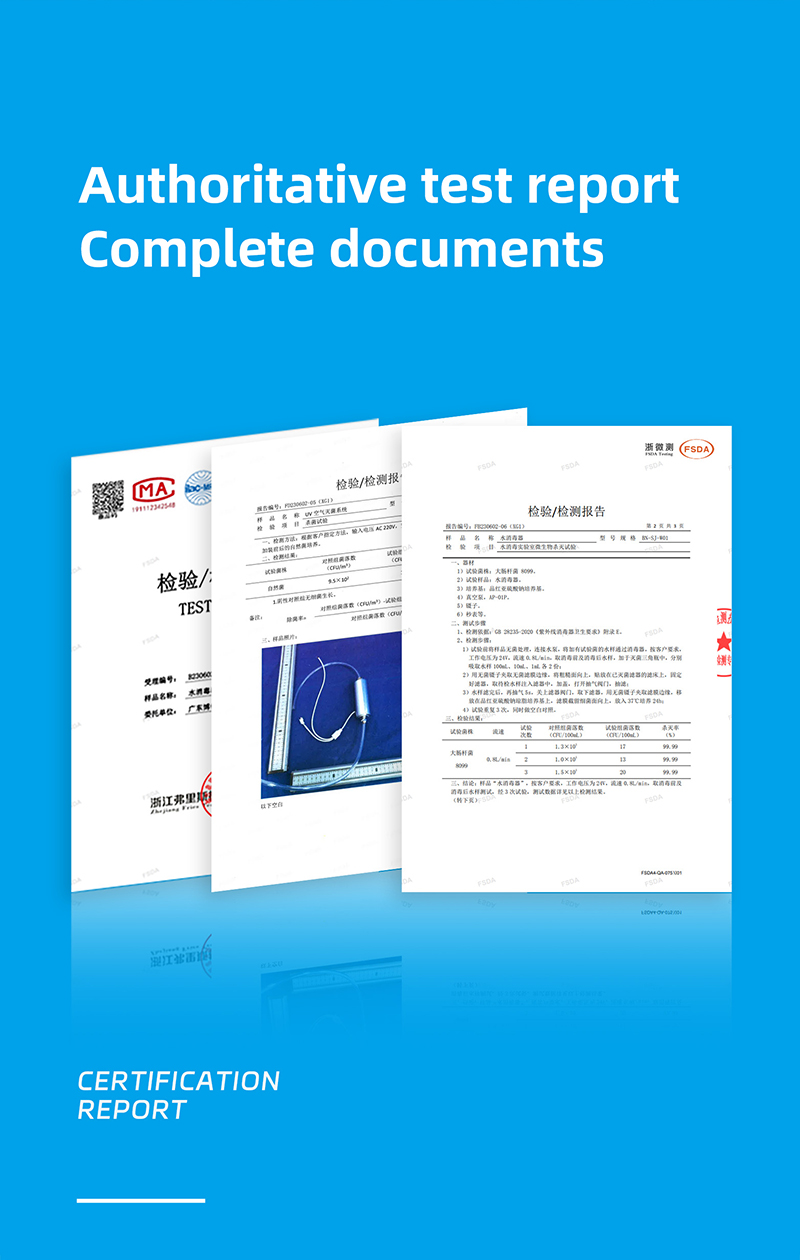

Authoritative test report Complete documents

1. Bactericidal principle

Deep ultraviolet LED260-285NM directly kills the molecular structure of DNA or RNA in the cells of harmful microorganisms.

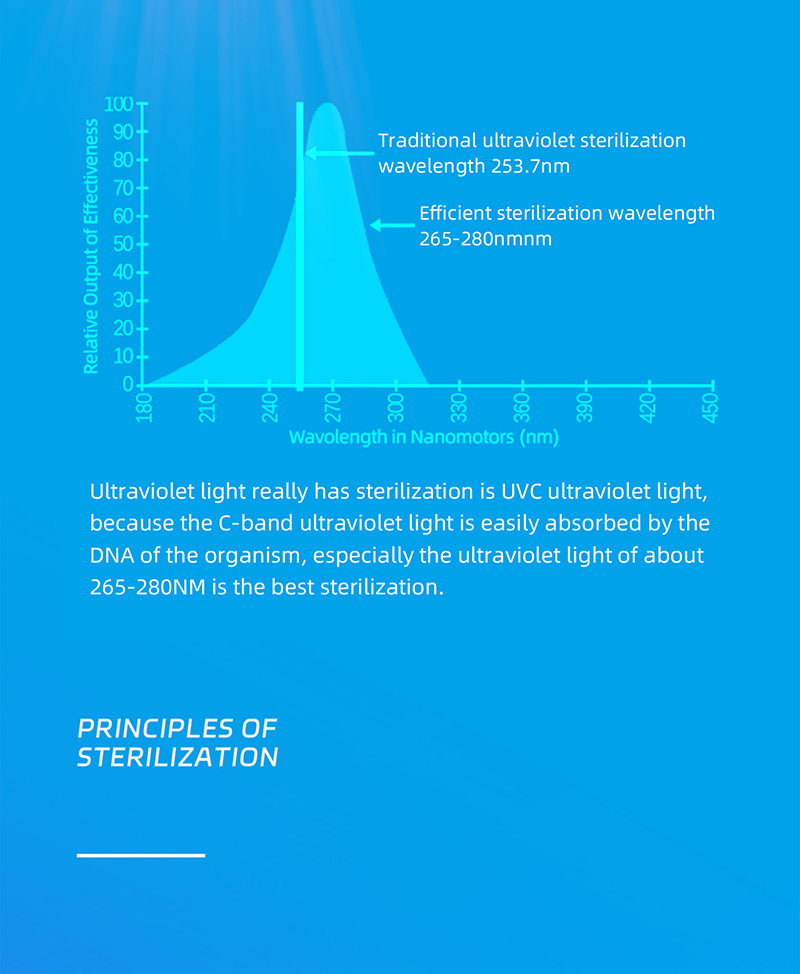

2. Traditional ultraviolet sterilization wavelength 253.7nm

3. Efficient sterilization wavelength 265-280nmnm

4. Ultraviolet light really has sterilization is UVC ultraviolet light, because the C-band ultraviolet light is easily absorbed by the DNA of the organism, especially the ultraviolet light of about 265-280NM is the best sterilization.

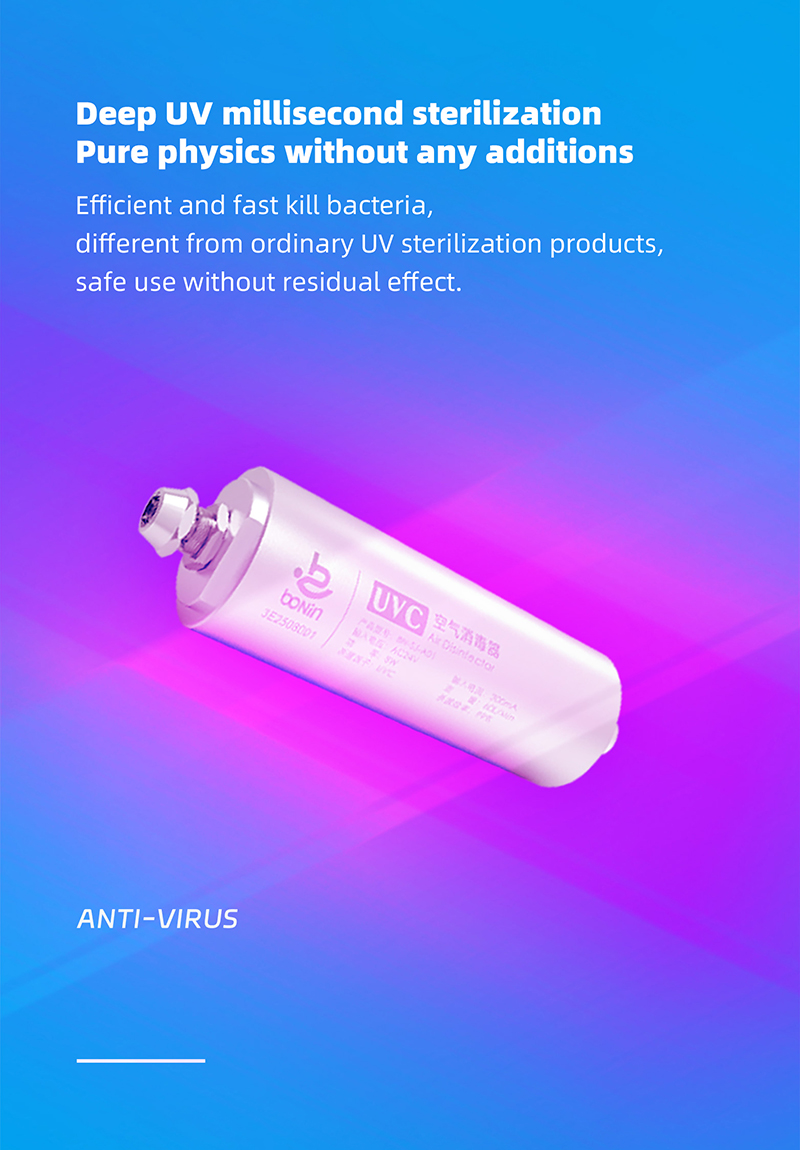

Deep UV millisecond sterilization

Pure physics without any additions

Efficient and fast kill bacteria,

different from ordinary UV sterilization products,

safe use without residual effect.

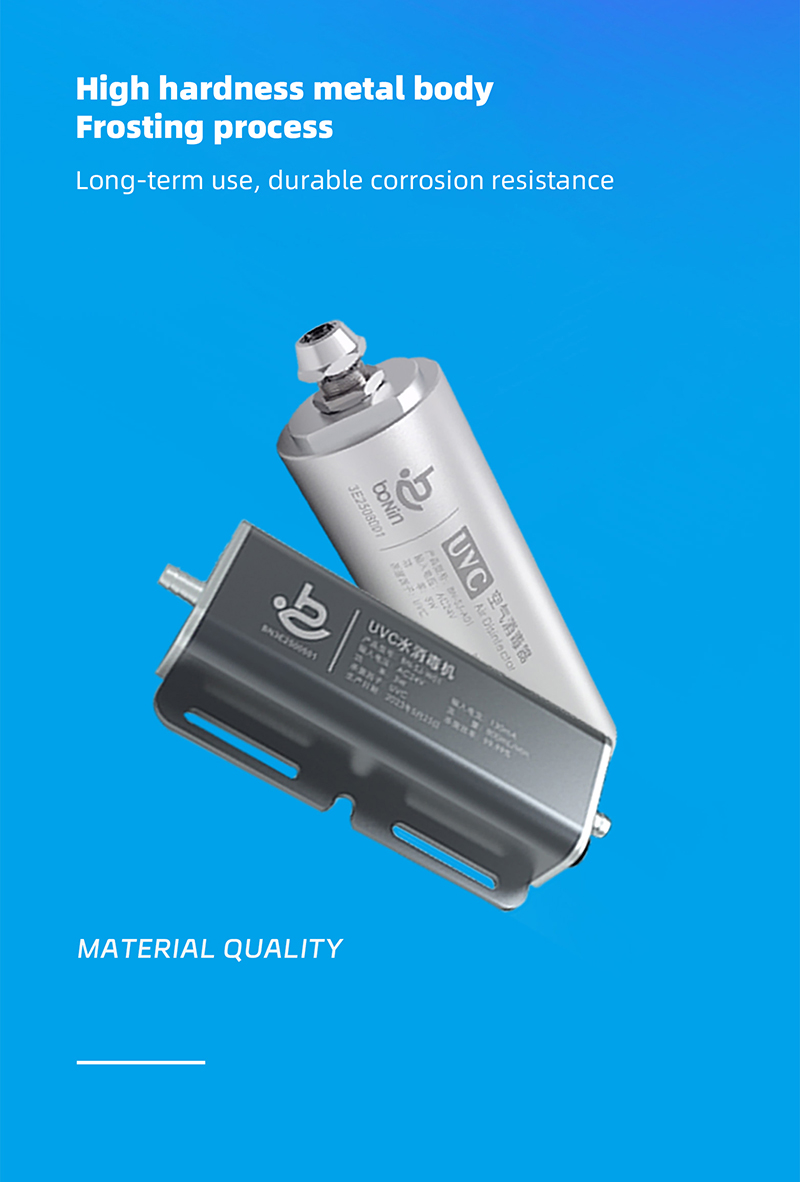

High hardness metal bodyFrosting process

Long-term use, durable corrosion resistance

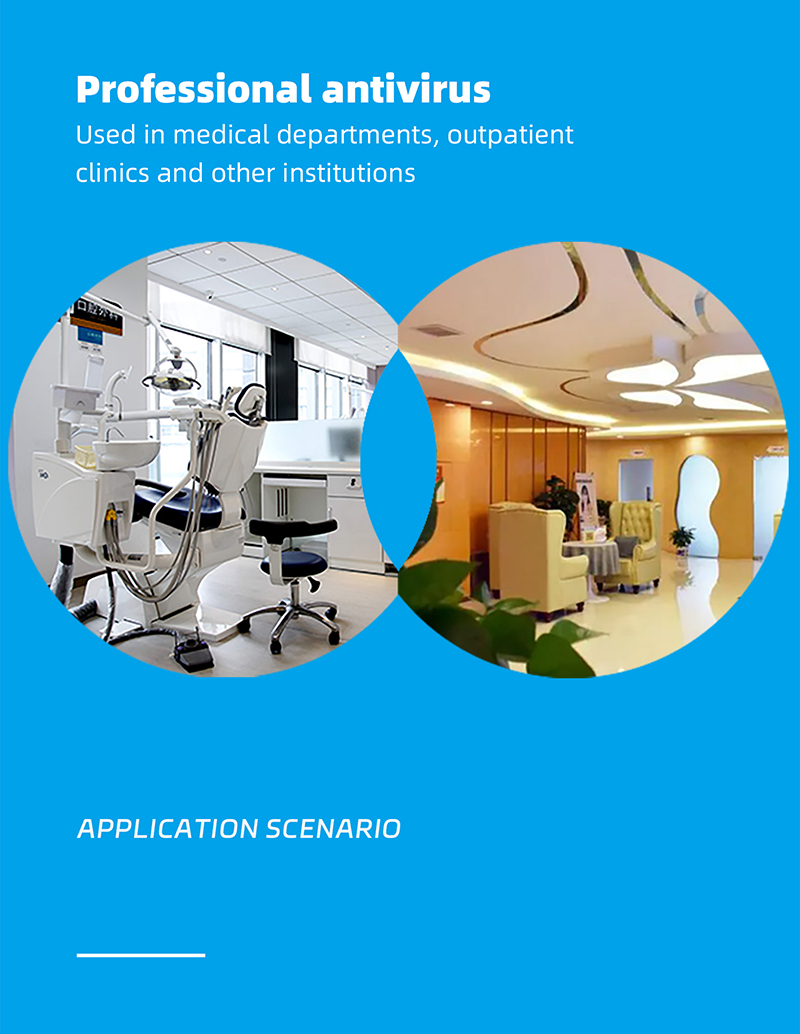

Professional antivirus

Used in medical departments, outpatient

clinics and other institutions

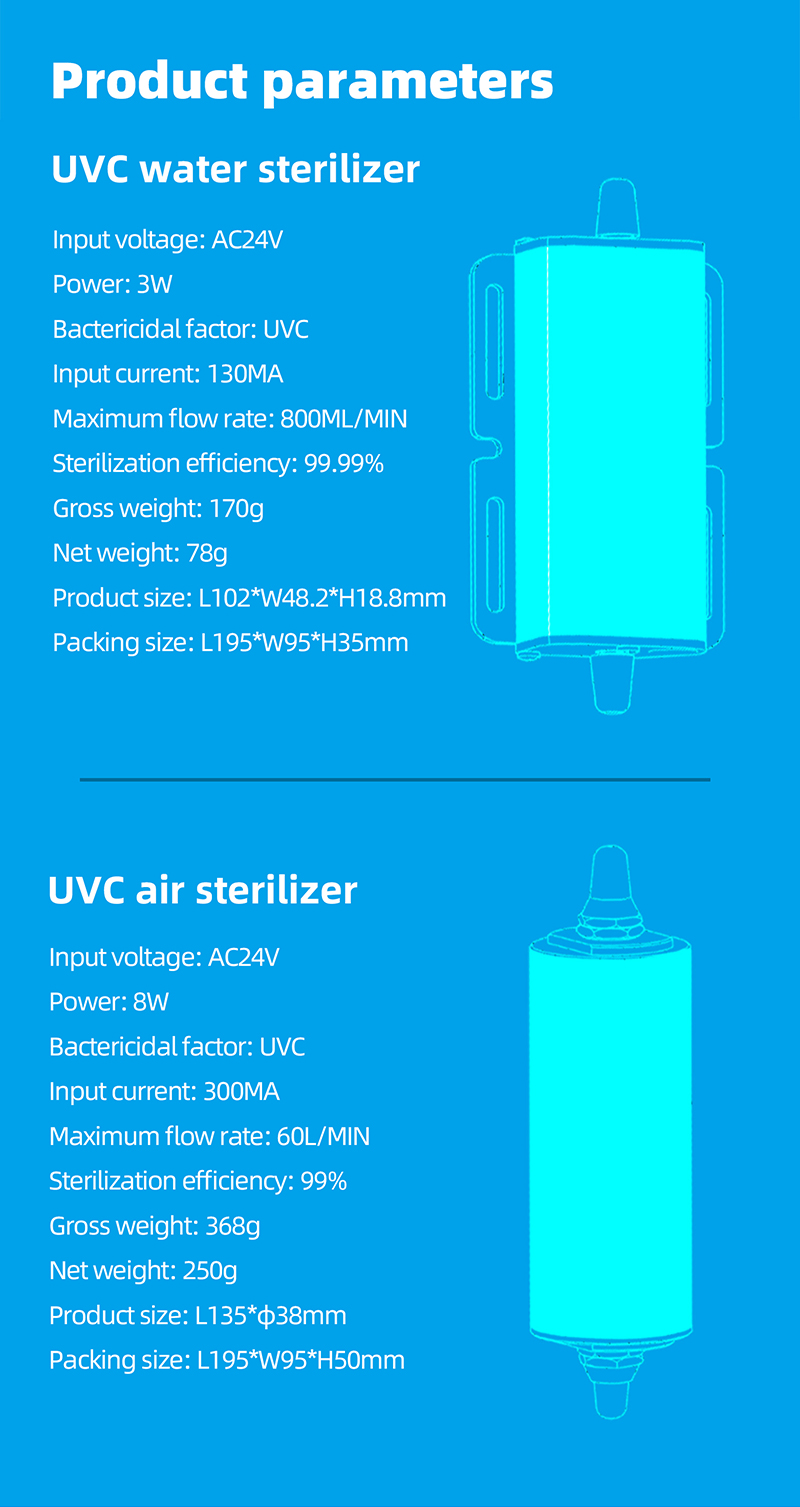

Product parameters

UVC water sterilizer

Input voltage: AC24V

Power: 3W

Bactericidal factor: UVC

Input current: 130MA

Maximum flow rate: 800ML/MIN

Sterilization efficiency: 99.99%

Gross weight: 170g

Net weight: 78g

Product size: L102*W48.2*H18.8mm

Packing size: L195*W95*H35mm

UVC air sterilizer

Input voltage: AC24V

Power: 8W

Bactericidal factor: UVC

Input current: 300MA

Maximum flow rate: 60L/MIN

Sterilization efficiency: 99%

Gross weight: 368g

Net weight: 250g

Product size: L135*φ38mm

Packing size: L195*W95*H50mm

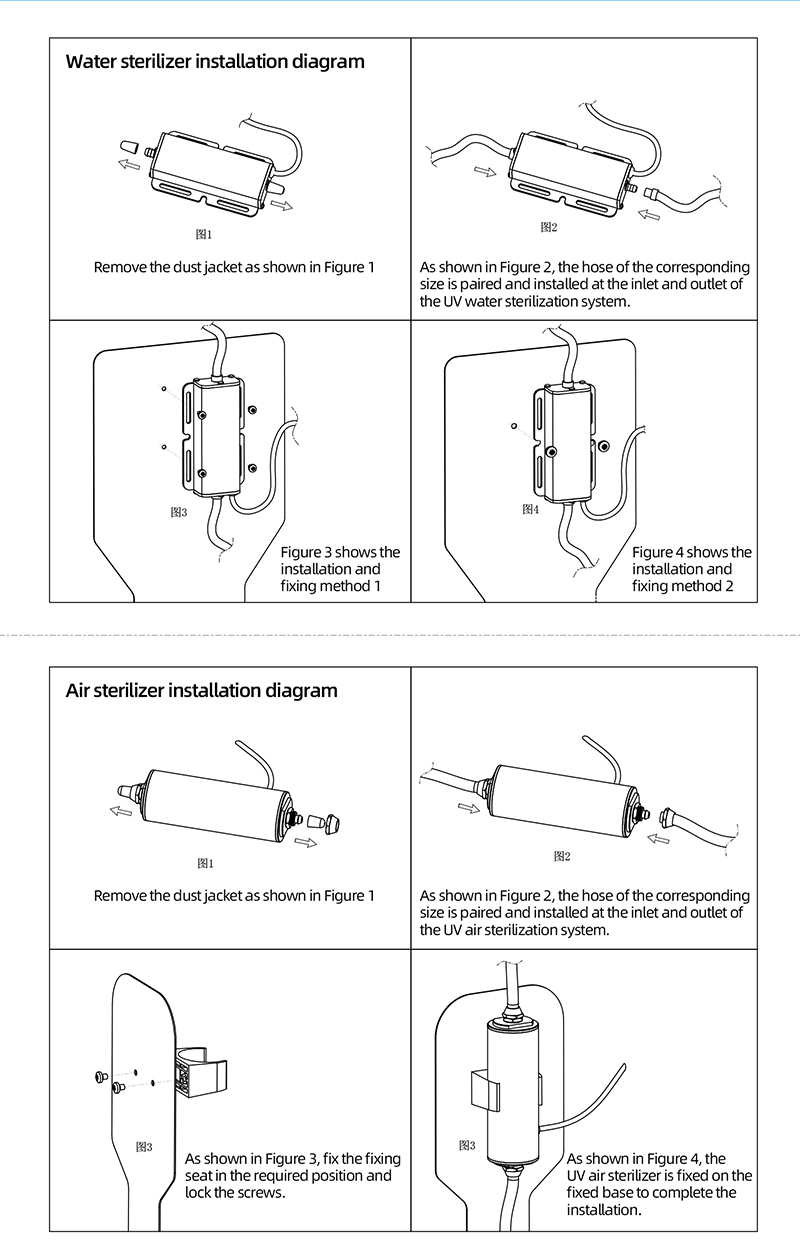

Water sterilizer installation diagram

1. Remove the dust jacket as shown in Figure 1

2. As shown in Figure 2, the hose of the corresponding

size is paired and installed at the inlet and outlet of

the UV water sterilization system.

3. Figure 3 shows the

installation and

fixing method 1

4. Figure 4 shows the

installation and

fixing method 2

Air sterilizer installation diagram

1. Remove the dust jacket as shown in Figure 1

2. As shown in Figure 2, the hose of the corresponding

size is paired and installed at the inlet and outlet of

the UV air sterilization system.

3. As shown in Figure 3, fix the fixing

seat in the required position and

lock the screws.

4. As shown in Figure 4, the

UV air sterilizer is fixed on the

fixed base to complete the

installation.
