Product Features:
● The Apex Locator adopts advanced multi-frequency network technology of apex location
and automatic calibrating ensures the measurements are accurate.
● Suitable for all kinds of complex root canals, not affected by blood and residual pulp.
● 2.4-inch color LCD display, high-definition image, clear track.
● Mini body, compact and light, easy to operate.
● File clips and lip hooks can be sterilized by high temperature autoclave.
Product Parameter:
● Screen: 2.4inch
● Battery: Rechargeable file ion battery (DC3.7v), 1500mA
● Output voltage: DC5V
● Output current: 1A
● Input voltage: AC100-240V
● Frequency of: 50-60Hz
● Product size: L60mm * W58mm * H92mm
● Package size: L137mm * W137mm * H71mm
● Gross weight: 0.35kg
DENTAL APEX LOCATOR: DG APEX
Measuring:
1. Away from 2.0mm or more to Apex. No sound;
2. Away from 1.0mm-2.0mm to Apex. The sound is a continuous beep;
3. Away from 0.5mm-1.0mm to Apex. The sound is two continuous beeps;
4. Away from 0.2mm-0.5mm to Apex. The sound is three continuous beeps;
5. Away from 0.0mm-0.1mm to Apex. The sound is long continuous beeps;
6. Pass the Apex, the OLED will display -3 and the sound is continuous.
Auto checking and Calibration:
1. Place the calibrator into the main boy, the OLED will display 0.0mm; (sometimes -3 or 0.1 are ok)
2. After connecting the apex wires, make touch the file holder and lip hook, the OLED will display -3.

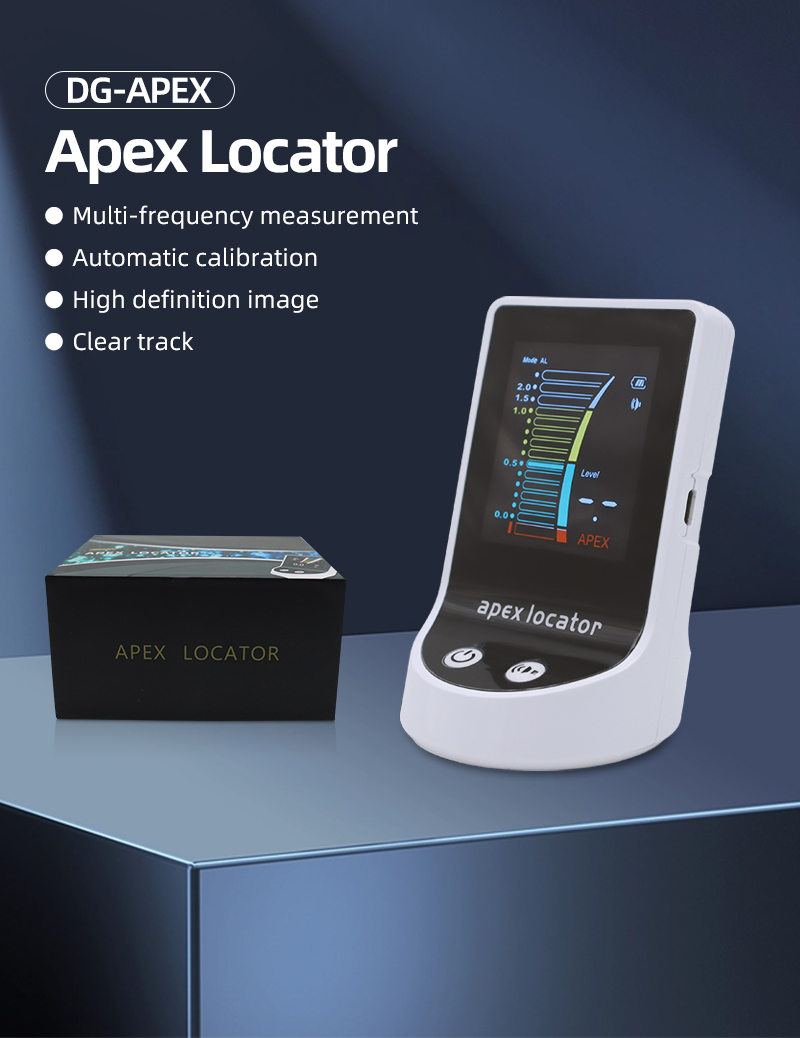

DG-APEX
Apex Locator
● Multi-frequency measurement
● Automatic calibration
● High definition image
● Clear track

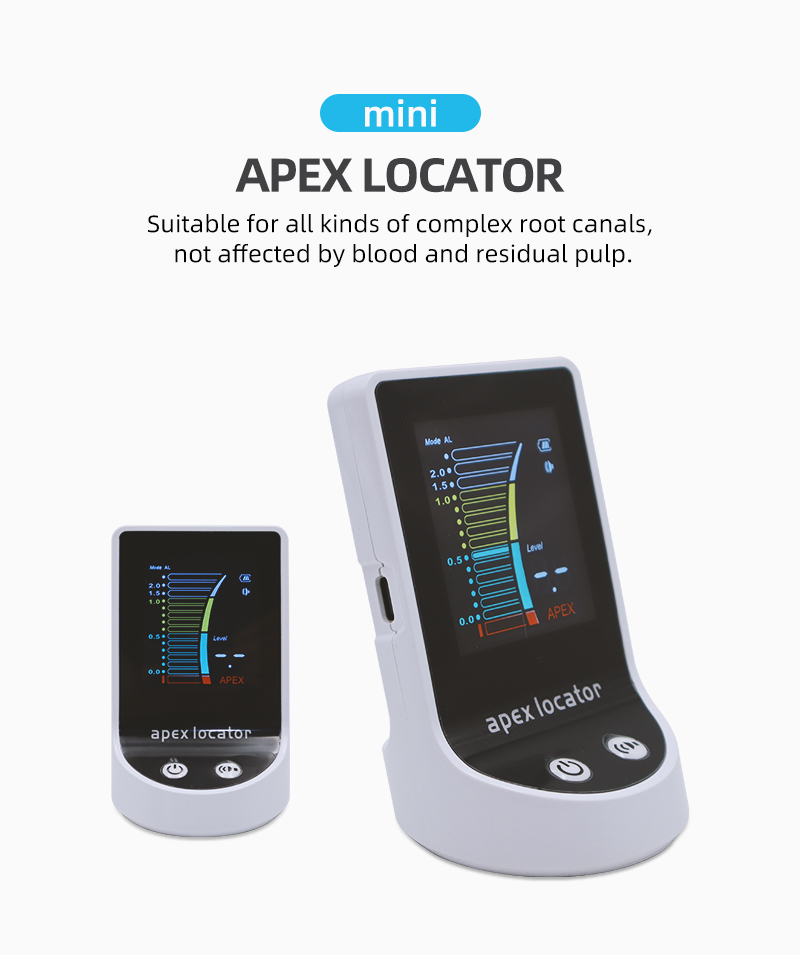

mini
APEX LOCATOR
● Suitable for all kinds of complex root canals, not affected by blood and residual pulp.

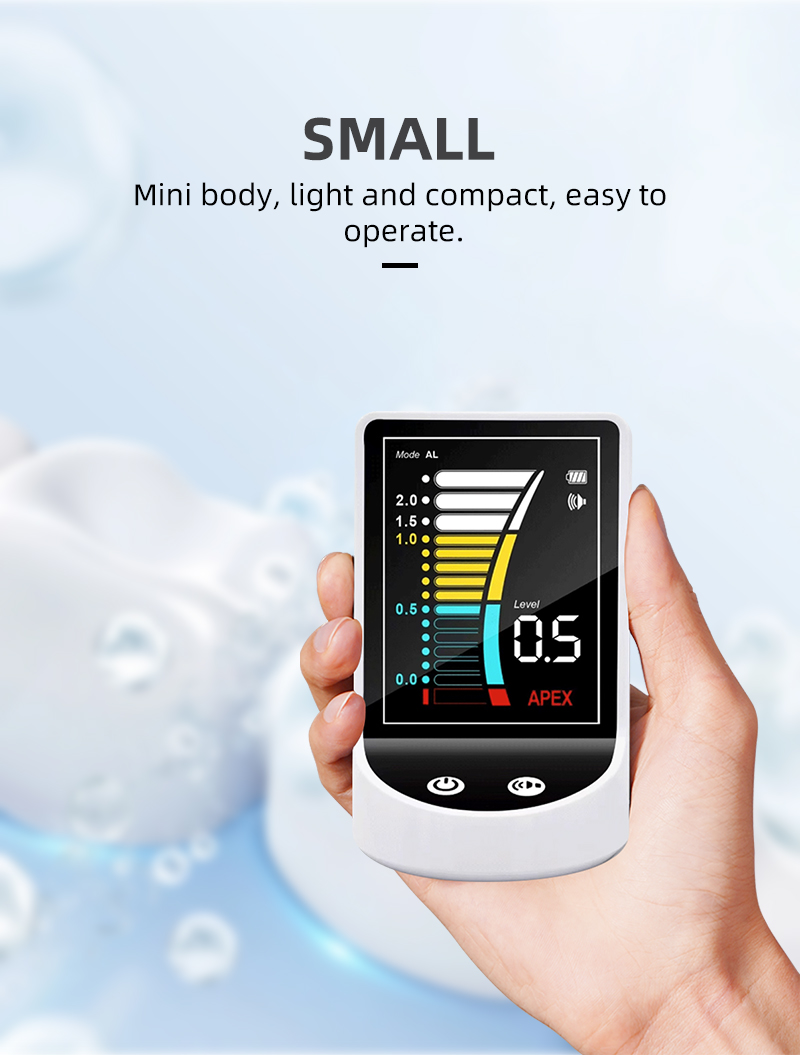

SMALL
Mini body, light and compact, easy to operate.

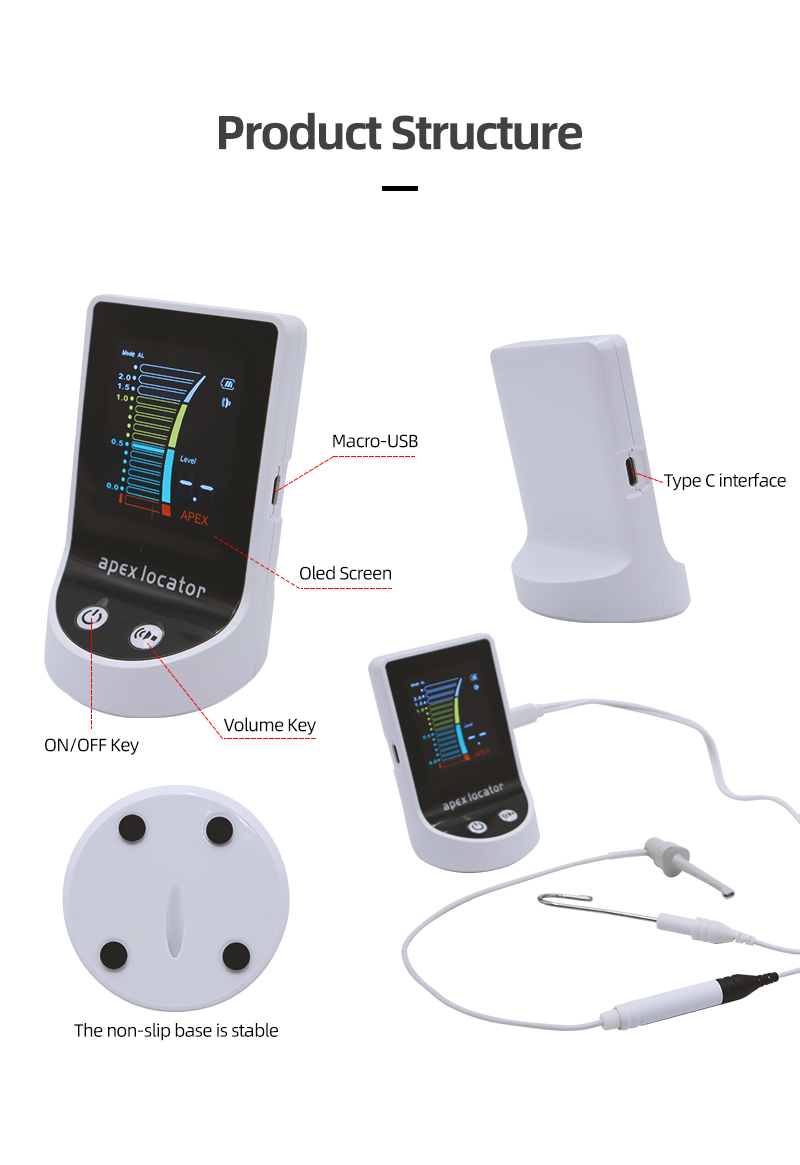

Product Structure:
● Macro-USB
● Oled Screen
● Volume Key
● ON/OFF Key
● Type C interface
● The non-slip base is stable

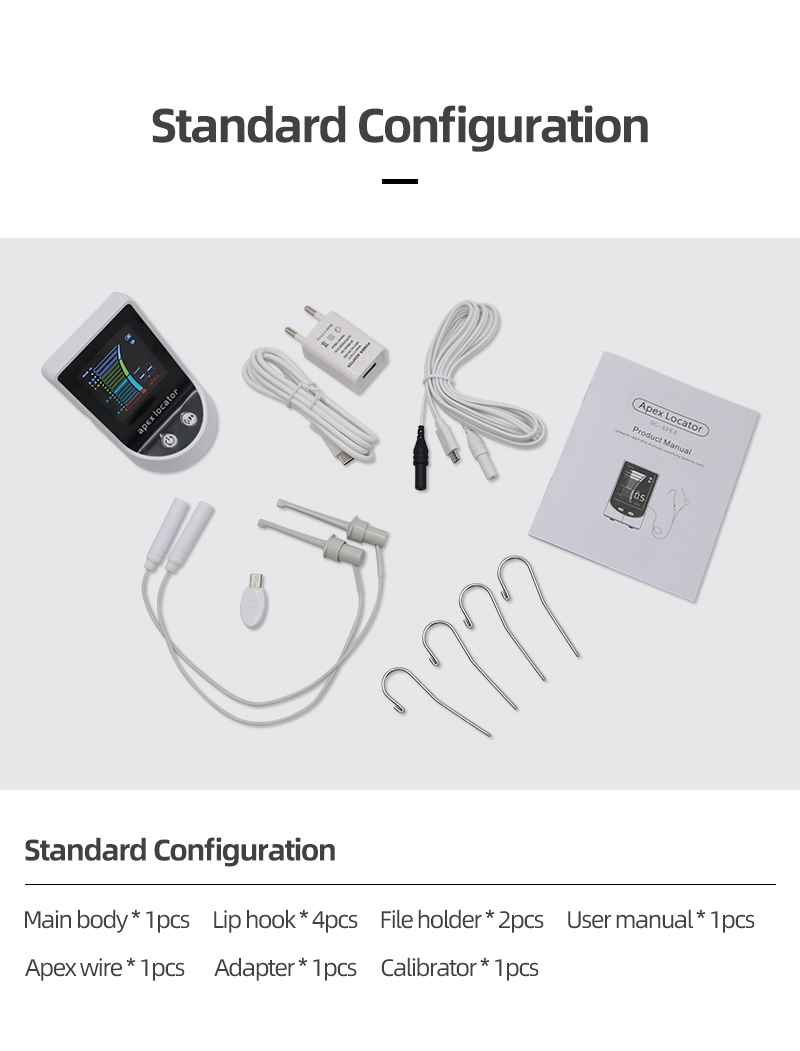

Standard Configuration:
● Main body * 1pcs
● Lip hook * 4pcs
● File holder * 2pcs
● User manual * 1pcs
● Apex wire * 1pcs
● Adapter * 1pcs
● Calibrator * 1pcs

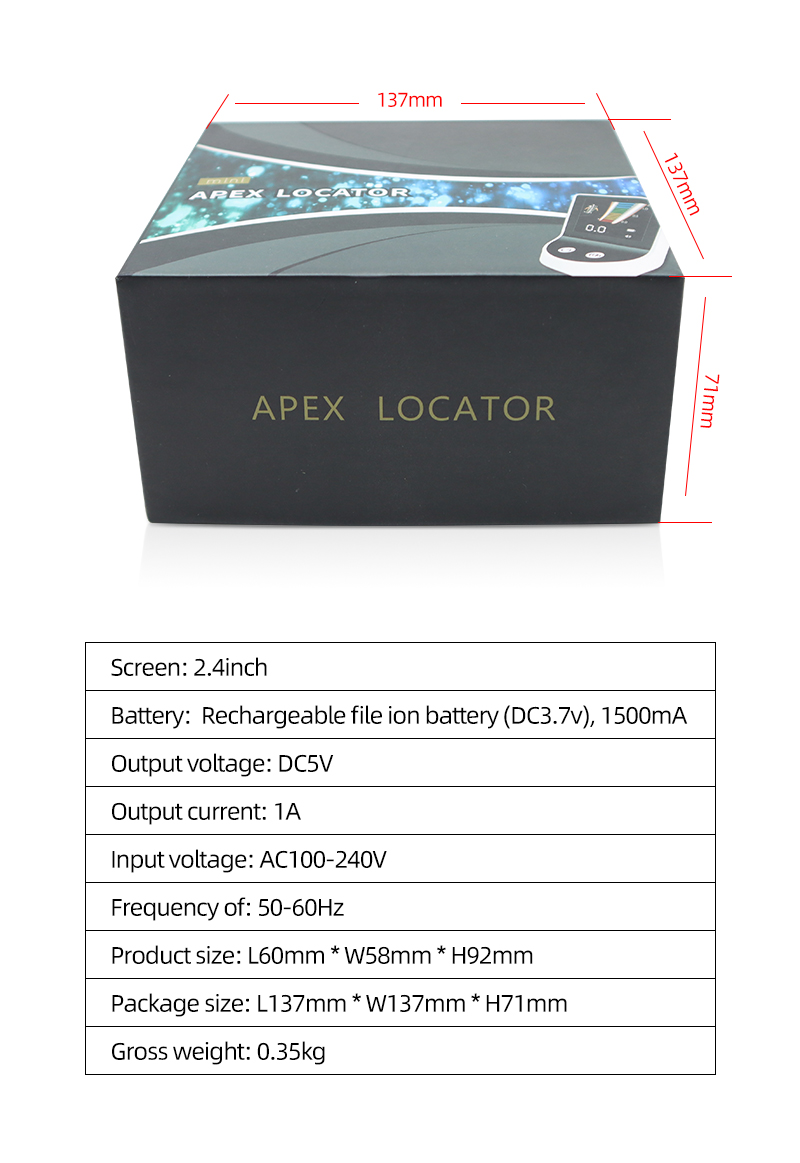

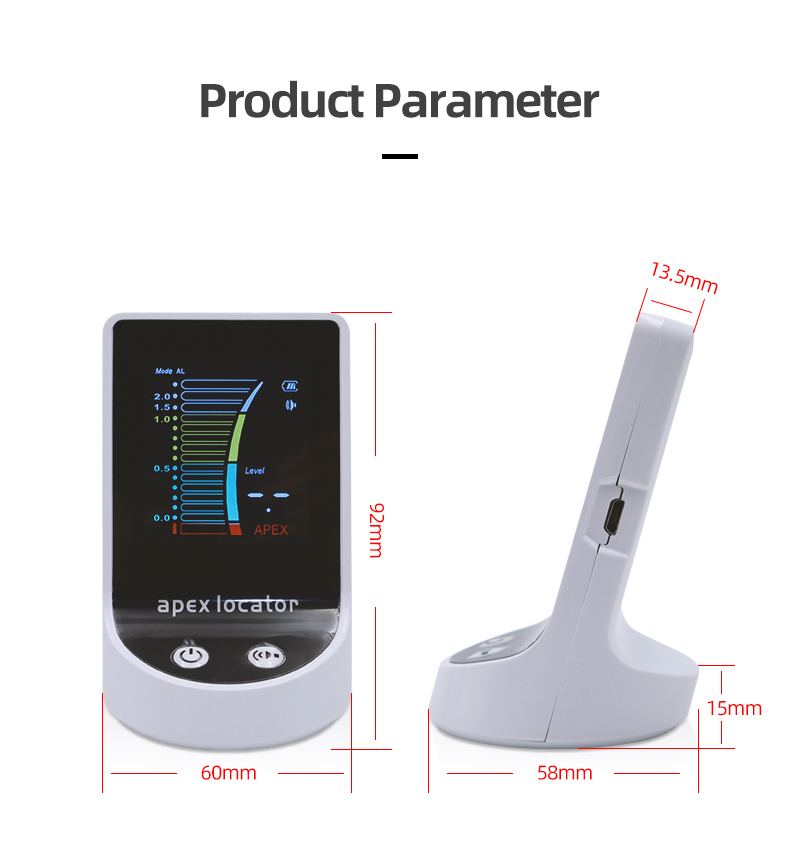

Product Parameter:
● Screen: 2.4inch
● Battery: Rechargeable file ion battery (DC3.7v), 1500mA
● Output voltage: DC5V
● Output current: 1A
● Input voltage: AC100-240V
● Frequency of: 50-60Hz
● Product size: L60mm * W58mm * H92mm
● Package size: L137mm * W137mm * H71mm
● Gross weight: 0.35kg
