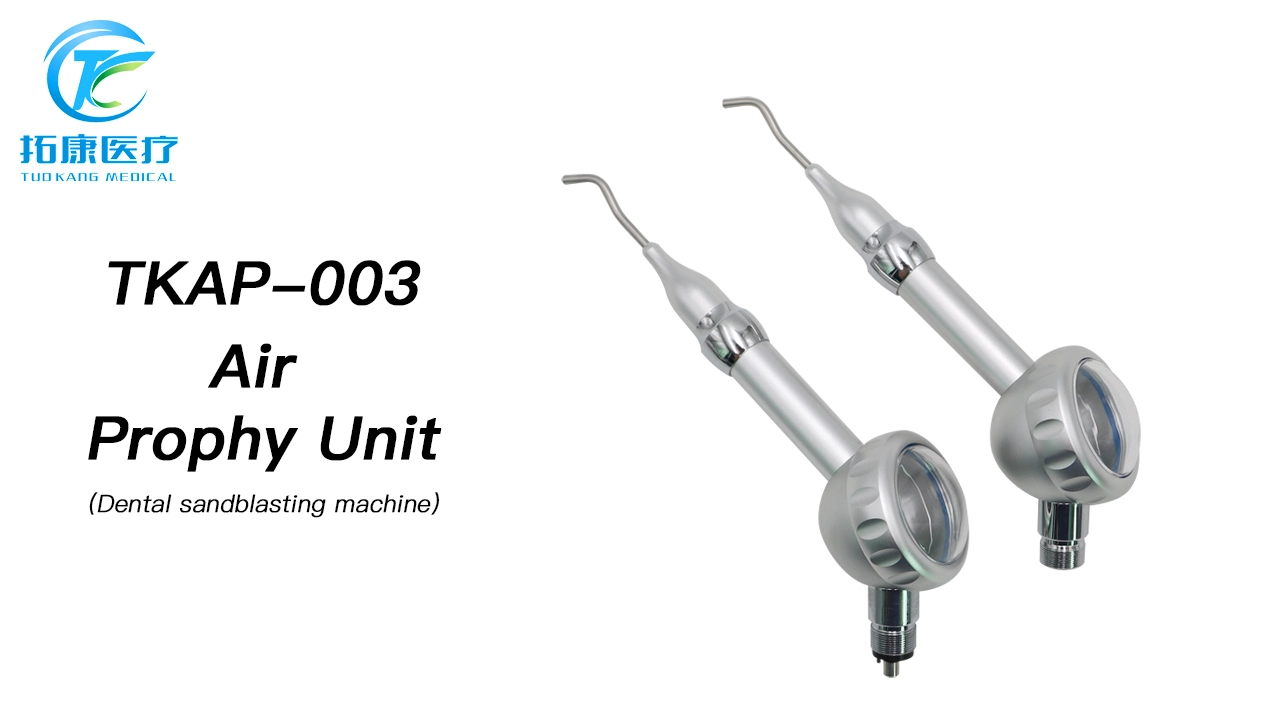

Best TKAP-003 Air Prophy Unit/Dental sandblasting machine manufacturers From China-TK Dental
1. TKAP-003
2. AIR PROPHY UNIT
3. Universal 4 hole / 2 hole interface
● Metal body
● Water-air separation
● Put down the suction device
● Not easily blocked sand
1. Quick insert head.
2. The gun head can be rotated 360°, easy to insert and remove, and easy to clean and disinfect after use.
3. Note: The gun head can be sterilized and sterilized at 134℃, and the gun body can be wiped and sterilized with alcohol.
4. 45° anti-blocking design.
5. 45° structure design, with anti-suction device, effectively prevent sand water backflow and avoid clogging.
6. Visual sand tank for observing powder quantity at any time.
7. Five holes atomized water.
8. Round hole nozzle, water and gas separation, uniform coating without splash, avoid clogging.
Product parameters:
1. Product name: Air Prophy Unit
2. Product use: Remove tartar stain or polish the tooth surface
3. Product specification: 4 hole /2 hole optional
4. Operating water pressure: 0.2Mpa-0.4Mpa
5. Operating air pressure: 0.3Mpa-0.4Mpa
6. Maximum water spraying capacity of working head: ≥30mL/min
7. Maximum blasting capacity of working head: ≥2.0g/min
8. Package size: L184mm、W132mm、H57mm
9. Gross weight: 0.5kg
Working conditions:
1. Operating temperature: +5℃-+40°
2. Working humidity: ≤80%RH
3. Atmospheric pressure range: 860hpa~1060hpa
4. Recommended sand specification range: 200mesh~400mesh
Product Details

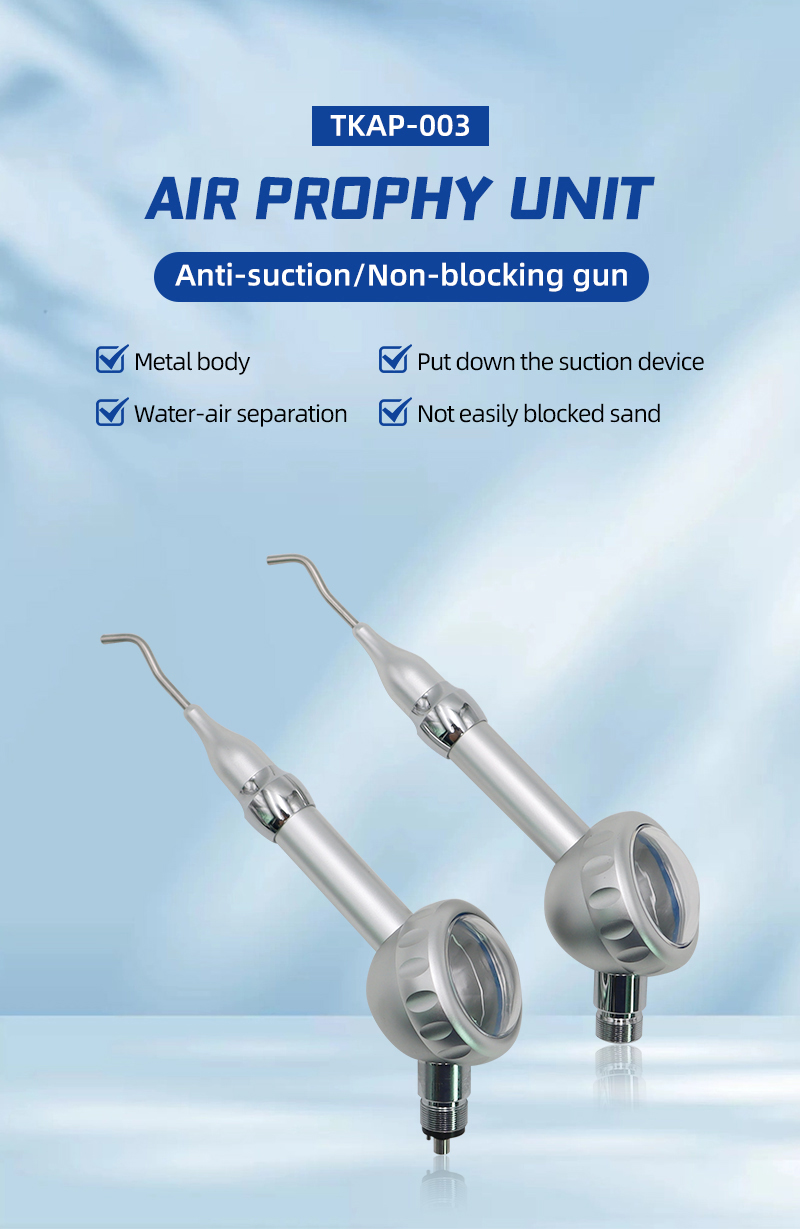

1. TKAP-003
2. AIR PROPHY UNIT
3. Anti-suction/Non-blocking gun
● Metal body
● Water-air separation
● Put down the suction device
● Not easily blocked sand
Six core advantages:
1. Non-destructive gingiva
2. Evenly coated
3. Strong and non-slip
4. Compact and light
5. High temperature sterilization
6. 360° rotation

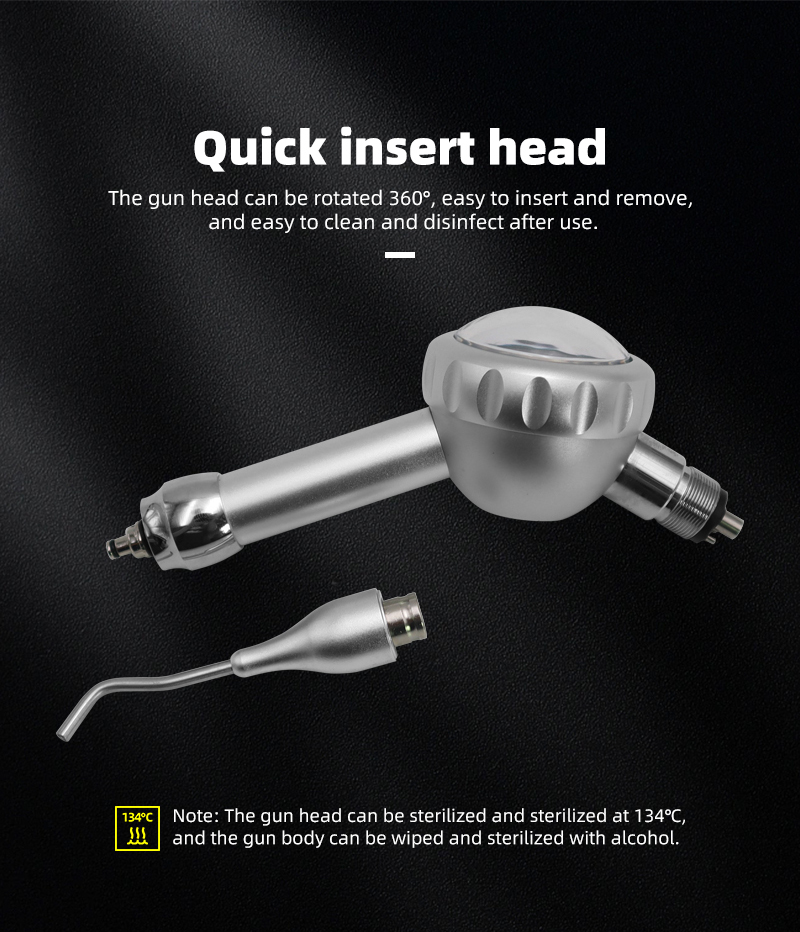

1. Quick insert head
2. The gun head can be rotated 360°, easy to insert and remove, and easy to clean and disinfect after use.
3. Note: The gun head can be sterilized and sterilized at 134℃, and the gun body can be wiped and sterilized with alcohol.

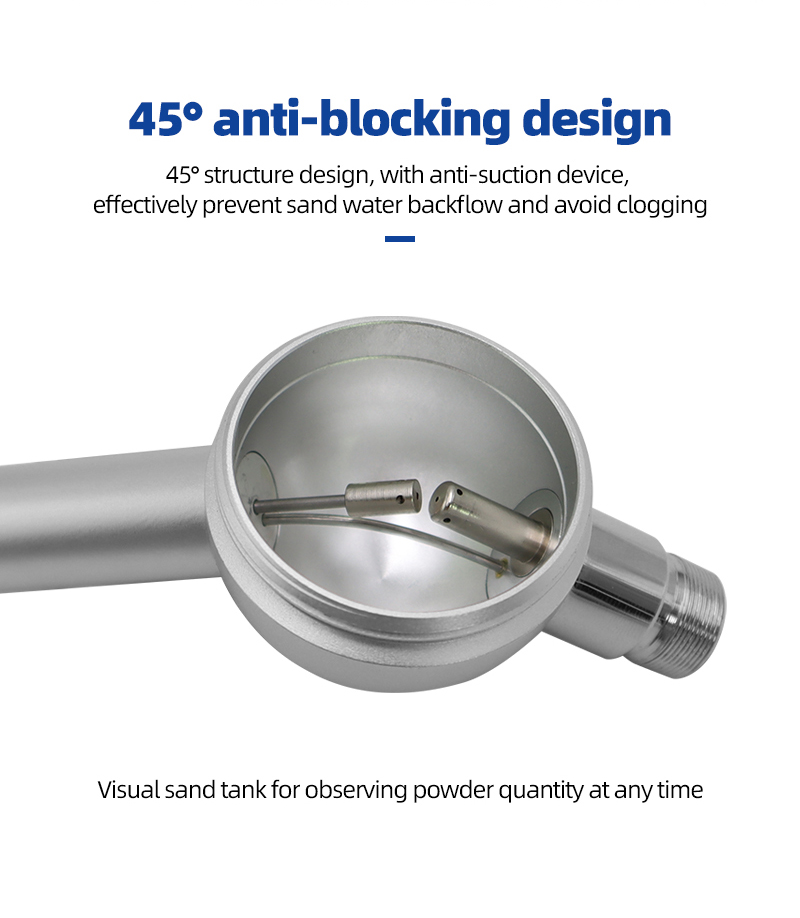

1. 45° anti-blocking design
2. 45° structure design, with anti-suction device, effectively prevent sand water backflow and avoid clogging.
3. Visual sand tank for observing powder quantity at any time.

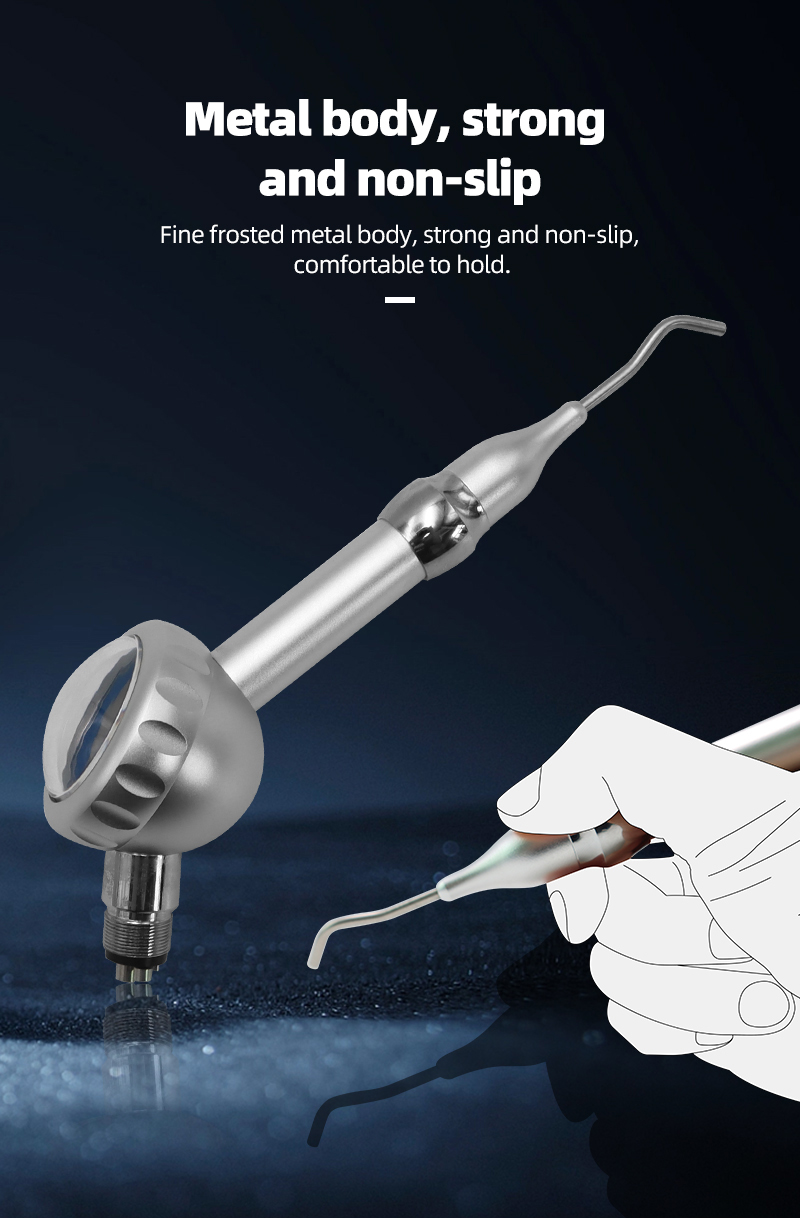

1. Metal body, strong and non-slip
2. Fine frosted metal body, strong and non-slip, comfortable to hold.

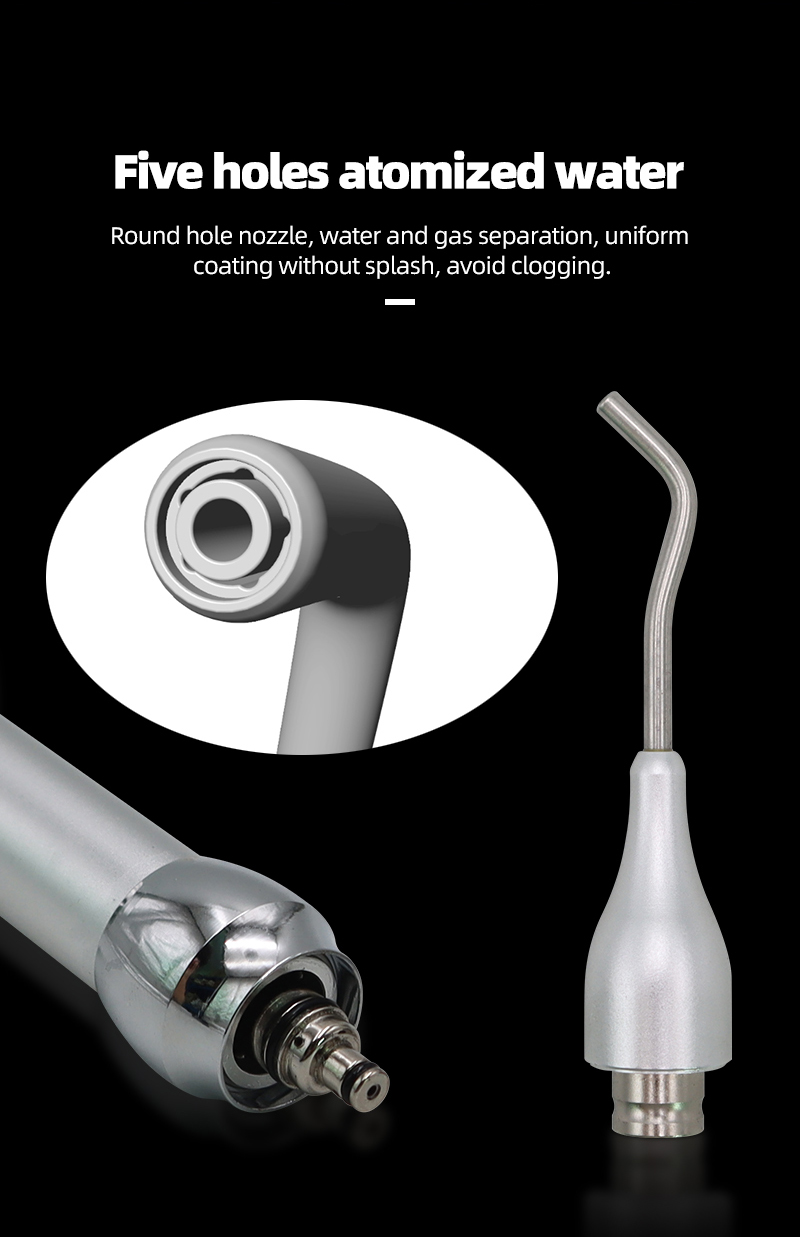

1. Five holes atomized water
2. Round hole nozzle, water and gas separation, uniform coating without splash, avoid clogging.

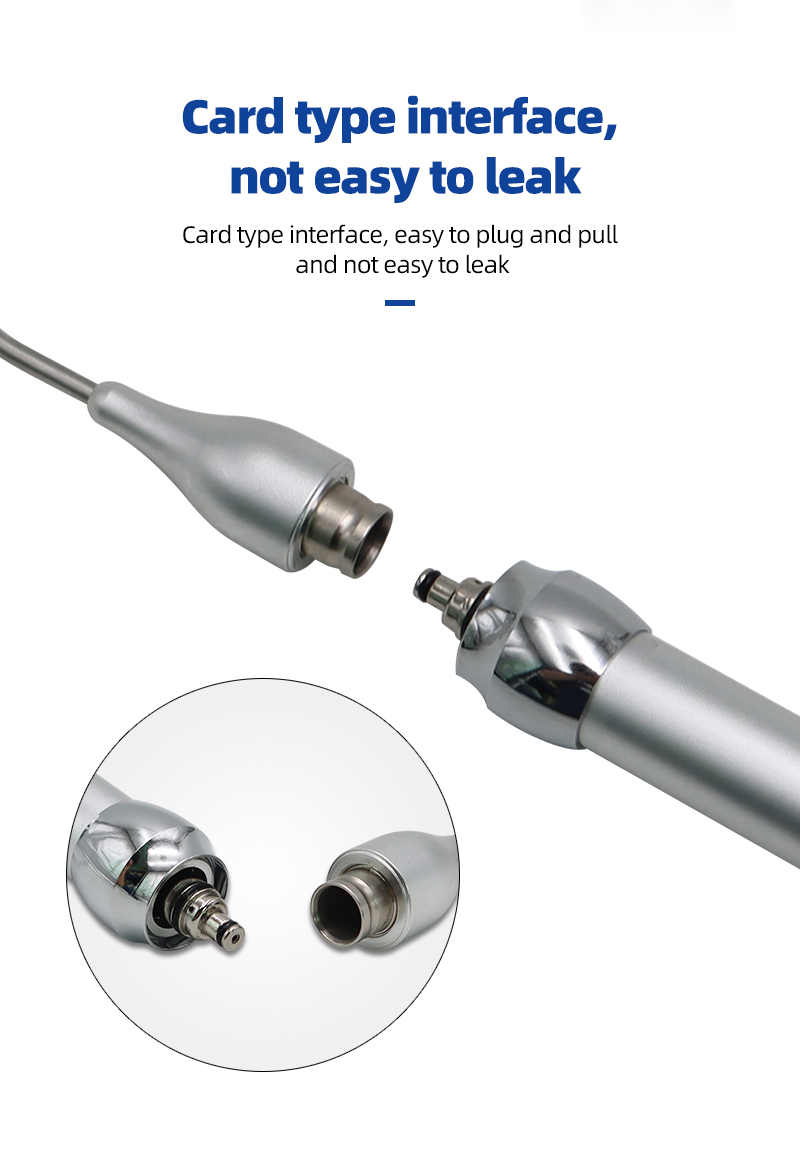

1. Card type interface, not easy to leak
2. Card type interface, easy to plug and pull and not easy to leak.

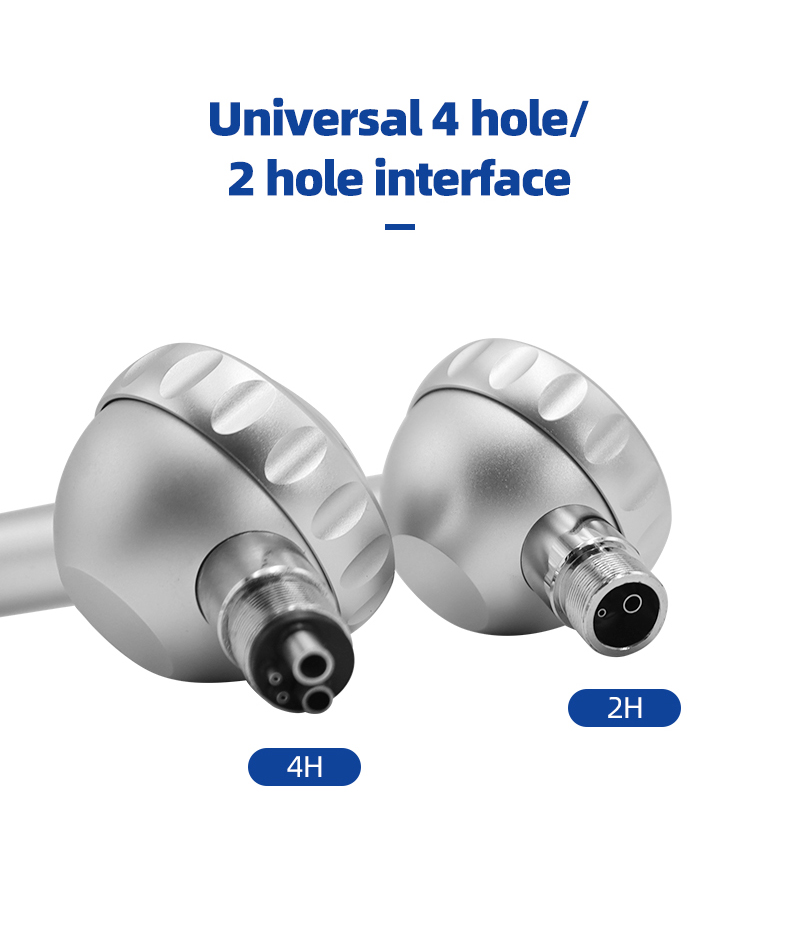

1. Universal 4 hole/2 hole interface
2. 4H/2H

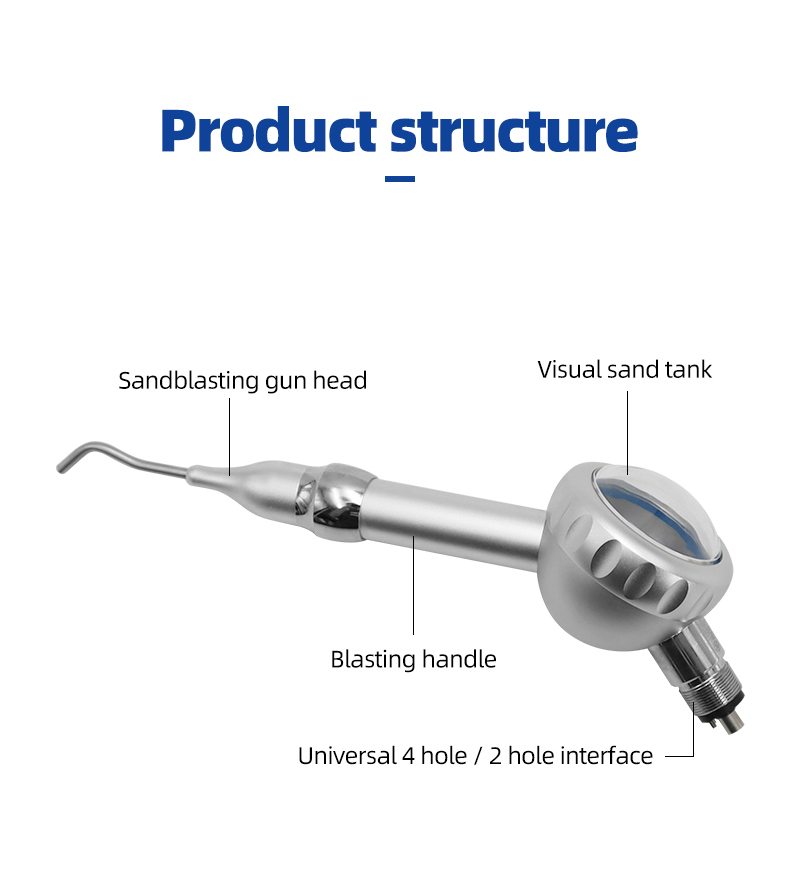

Product structure:
1. Sandblasting gun head
2. Visual sand tank
3. Blasting handle
4. Universal 4 hole / 2 hole interface

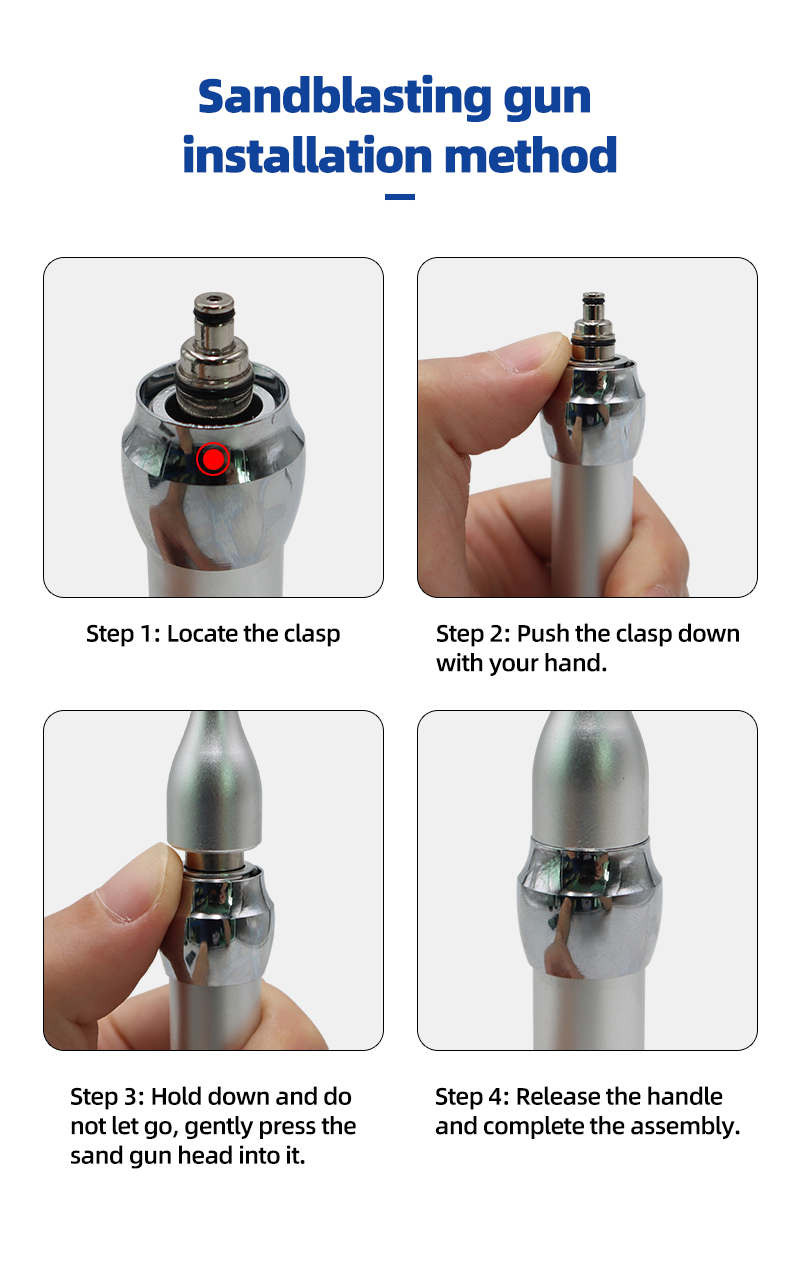

Sandblasting gun installation method:
1. Step 1: Locate the clasp.
2. Step 2: Push the clasp down with your hand.
3. Step 3: Hold down and do not let go, gently press the sand gun head into it.
4. Step 4: Release the handle and complete the assembly.

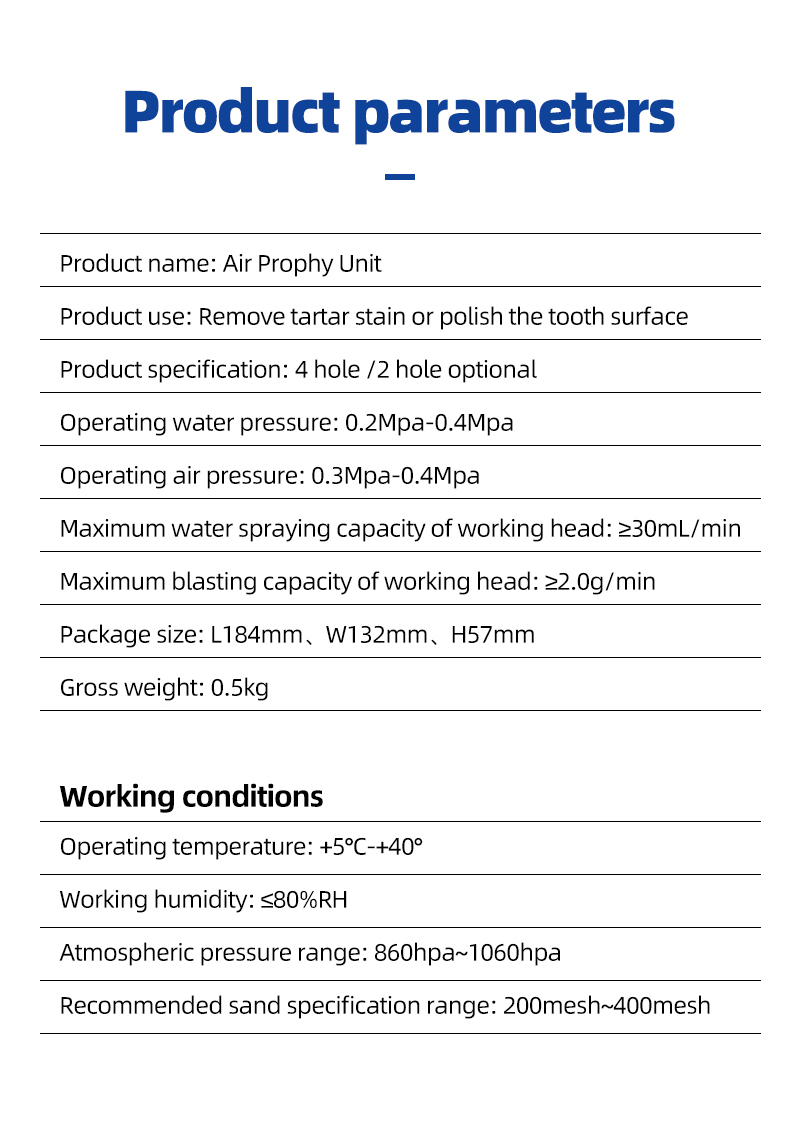

Product parameters:
1. Product name: Air Prophy Unit
2. Product use: Remove tartar stain or polish the tooth surface
3. Product specification: 4 hole /2 hole optional
4. Operating water pressure: 0.2Mpa-0.4Mpa
5. Operating air pressure: 0.3Mpa-0.4Mpa
6. Maximum water spraying capacity of working head: ≥30mL/min
7. Maximum blasting capacity of working head: ≥2.0g/min
8. Package size: L184mm、W132mm、H57mm
9. Gross weight: 0.5kg
Working conditions:
1. Operating temperature: +5℃-+40°
2. Working humidity: ≤80%RH
3. Atmospheric pressure range: 860hpa~1060hpa
4. Recommended sand specification range: 200mesh~400mesh

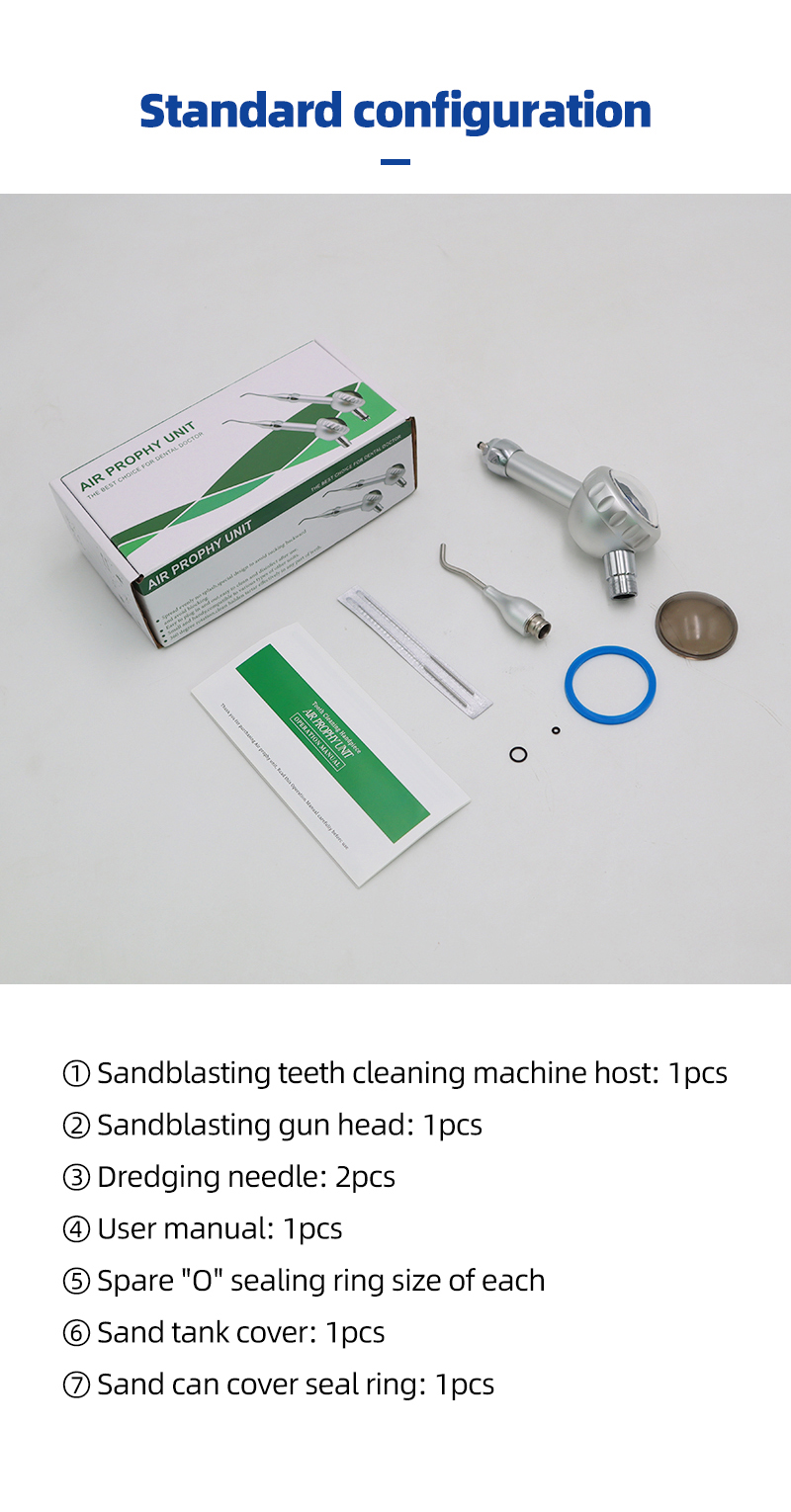

Standard configuration:
1. Sandblasting teeth cleaning machine host: 1pcs
2. Sandblasting gun head: 1pcs
3. Dredging needle: 2pcs
4. User manual: 1pcs
5. Spare "O" sealing ring size of each
6. Sand tank cover: 1pcs
7. Sand can cover seal ring: 1pcs

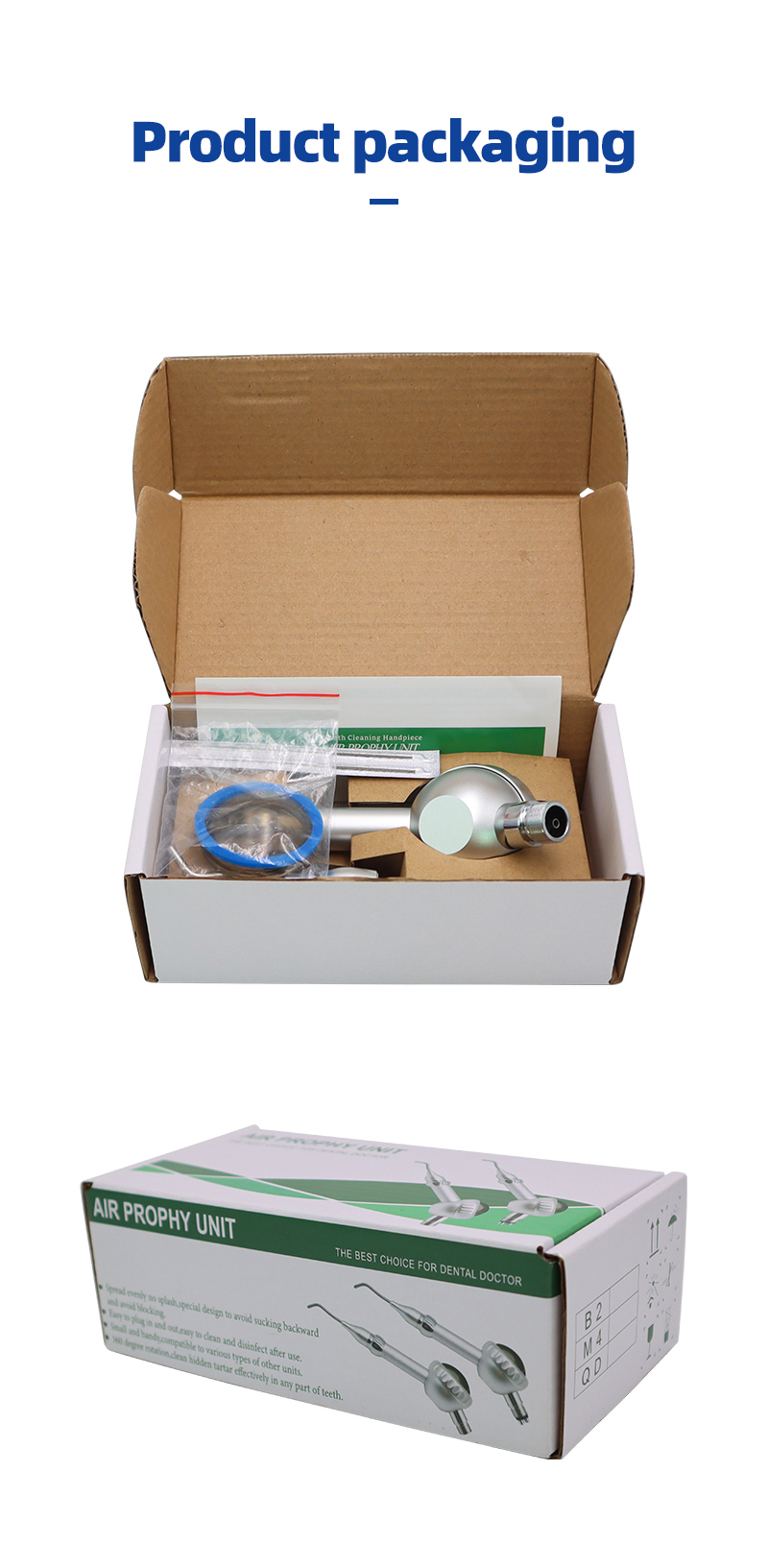

Product packaging

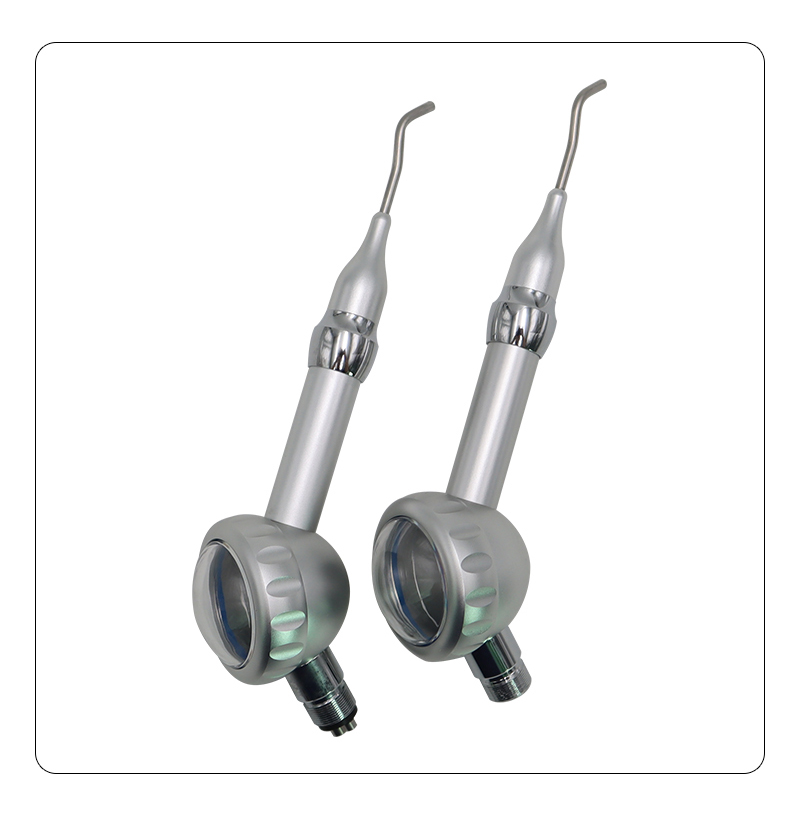

Product display
