Built-in Type Dental LED Curing Light Device Dental Light Curing Lamp Machine
This LED dental curing light is used to restore teeth and solidify material for whitening teeth.
LED.Q adopts the principle of ray radiation to solidify the light-sensitive resin by shooting at it in a short time.
| Power input: | 24V 50Hz/60Hz 0.4A Max |
| Light source： | 3W high power blue LED light |
| Wave length: | 420nm-480nm |
| Light intensity: | 1000mW/c㎡~1200mW/c㎡ |
| Category: | class I |
| Launch limit(AEL): | 3.9*10^(-3) J |
| Radiation during 400nm~515nm(blue light): | ≥250mW/c㎡ |
| Optical active area: | 50m㎡ |
| Environment temperature: | 5℃ to 40℃ |
| Relative humidity: | 30%~75% |
| Atmosphere pressure: | 70KPa to 106KPa |
| Dimensions: | 248mm*26mm*26.5mm |
| Net weight: | 127g |
Feature:
A) Sealed, connect to dental unit.
B) Time setting: 10s, 20s, 30s.
C) Working mode: Full power
Principle and usage：
A) LED.Q adopts the principle of ray radiation to solidify the light-sensitive resin by shooting at it in a short time.
B) This product is used to restore teeth and solidify material for whitening teeth.
Structure and components：

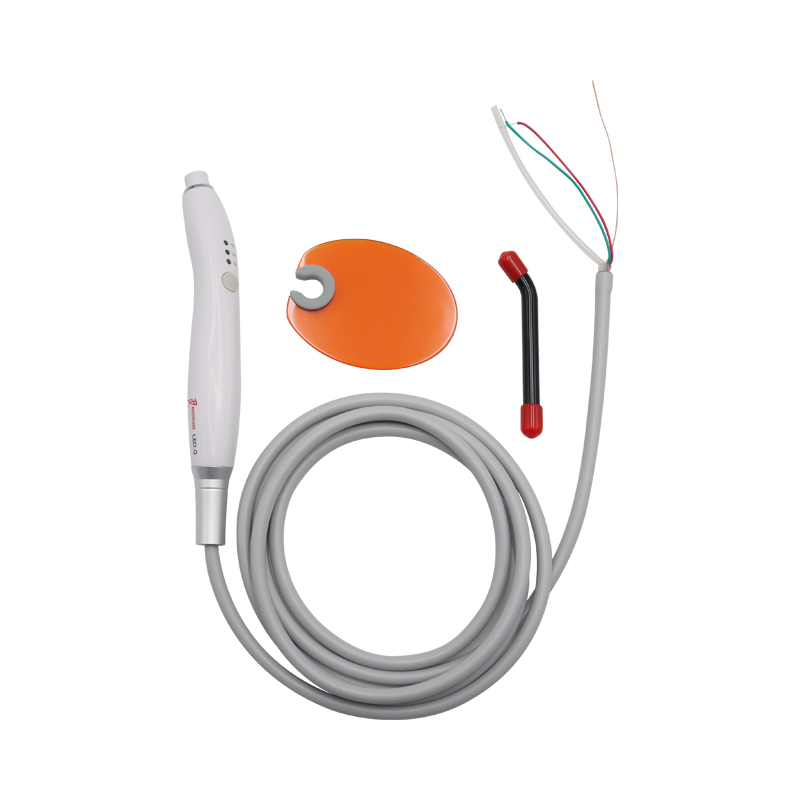

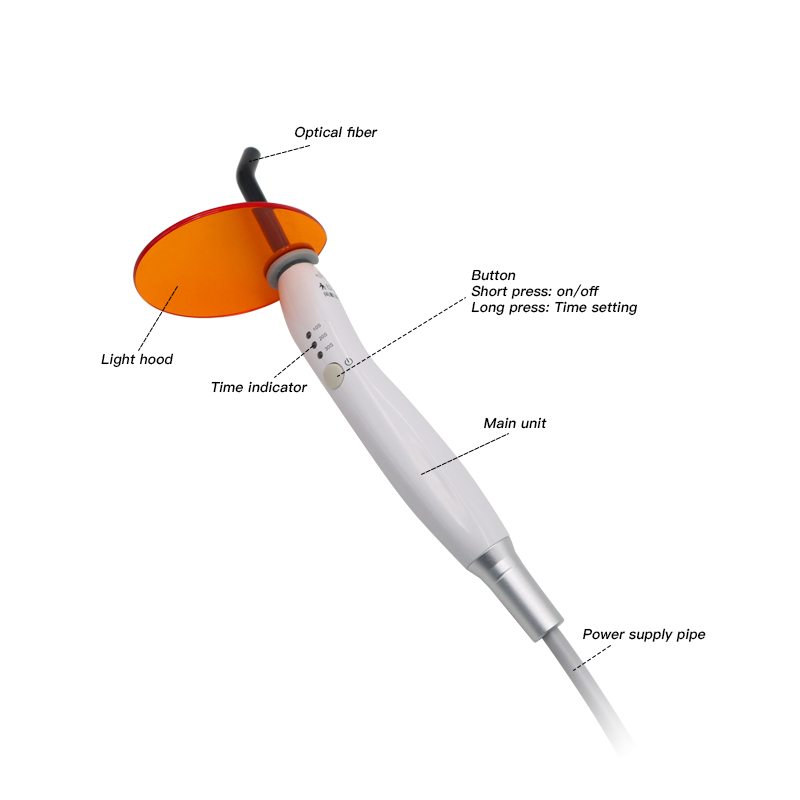

LED.Q is composed mainly of main unit, optical fiber, light hood, high power LED and cable.
Light source：
3W high power blue LED light
Wave length: 420nm-480nm
Light intensity: 1000mW/c㎡~1200mW/c㎡
