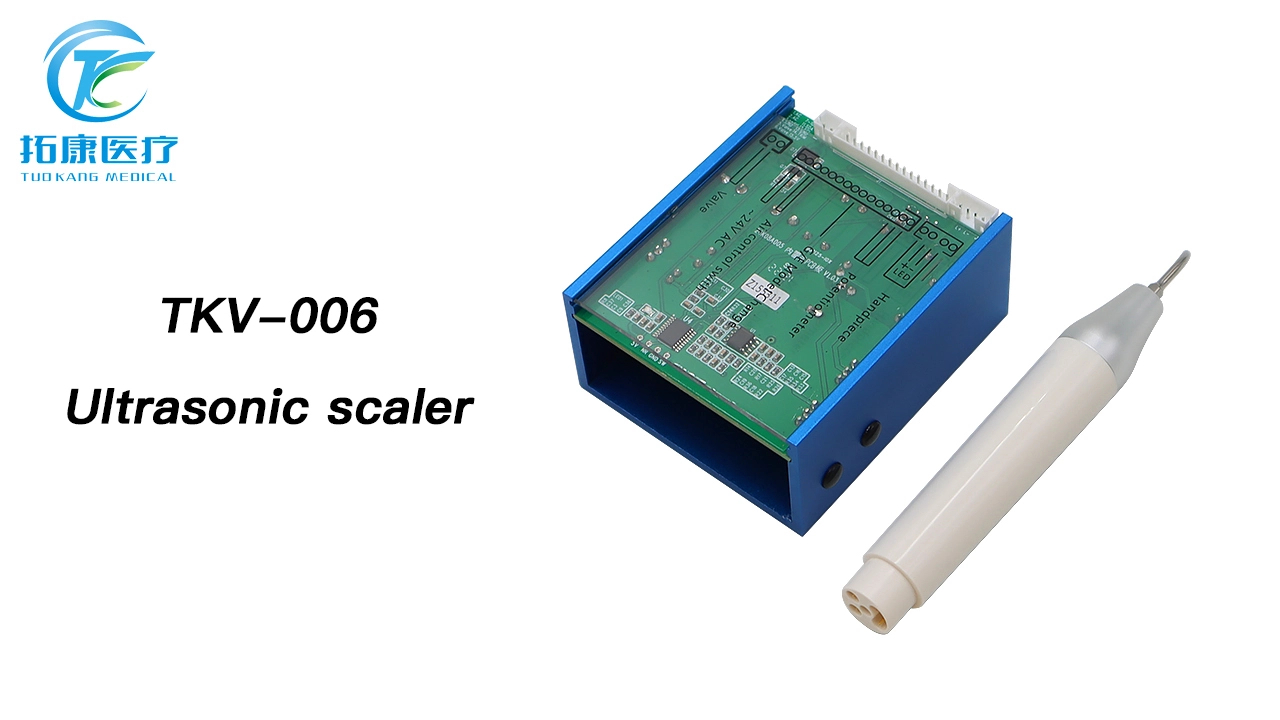

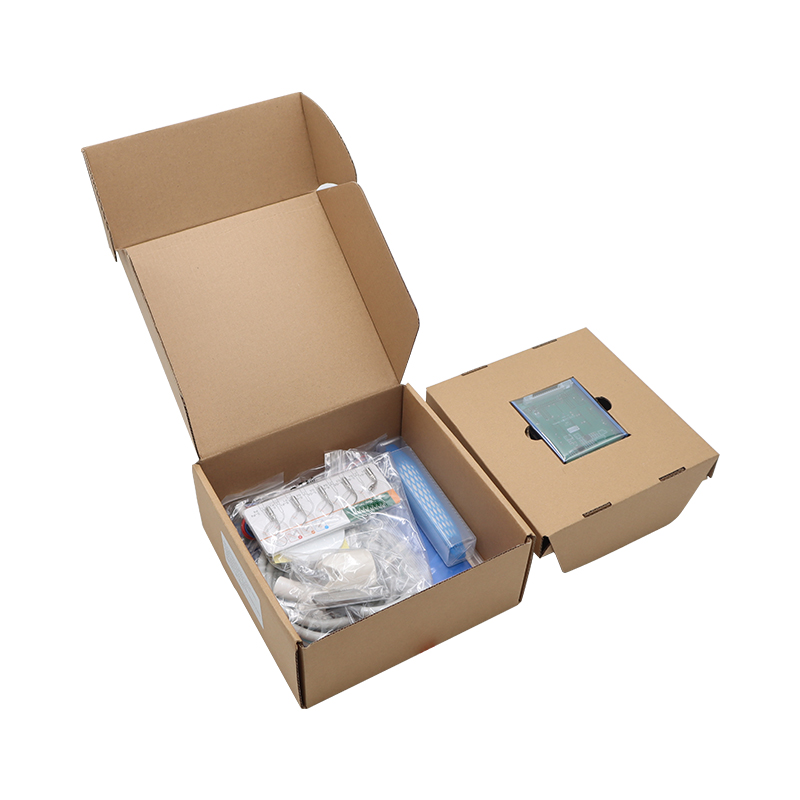

TKV-006 Clinic Used Scaling Machine Built-in Type Ultrasonic Scalers

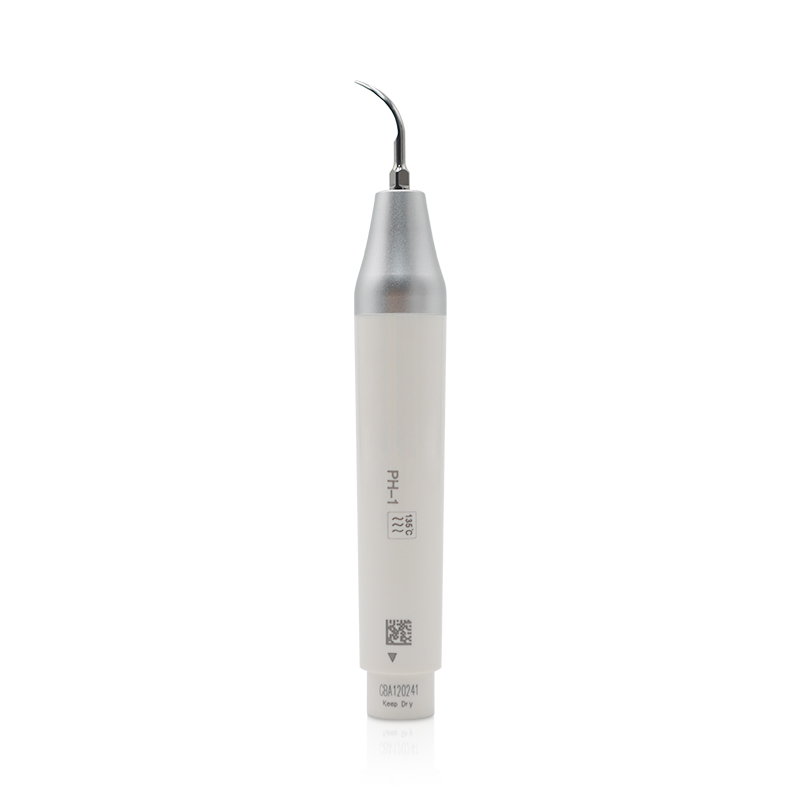

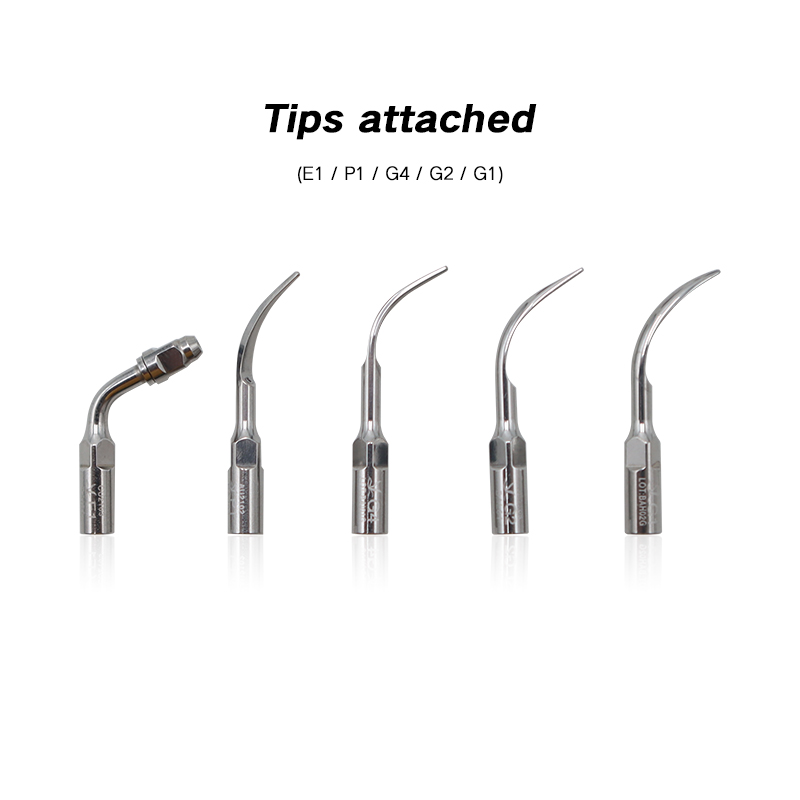

TKV-006 built-in ultrasonic scaler used for removing the calculus and stains on teeth surface along with dental units and endo irrigation. It with a detachable LED handpiece, can be sterilized by high temperature (135℃) and high pressure(0.22 MPa). Scaling tips can be cleaned by the ultrasound cleaner and Sterilized by alcohol cotton or disinfected cloth, and also can be Sterilized by high temperature and high pressure.
TECHNICAL SPECIFICATIONS
● Power Supply: AC 24V(1±10%), 50/60Hz
● Input Power: ≤40VA
● Fuse Protector: T3AL 250V
● Tip Principal Oscillation Offset: 1μm(min), -50% deviation; 100μm(max), +50% deviation
● Half-excursion Force: 0.1N(min), -50% deviation; 2N(max), +50% deviation
● Tip Vibration Frequency: 28KHz ± 3KHz
● Ultrasonic Output Power: 3W~20W
● Weight of Main Unit :0.3kg
● Weight of Adapter: 0.2kg (optional)
● Operating Mode: Continuous operating
● Electric shock Protection Type: Class equipment
● Electric Shock Protection Degree: Type B Applied Part
● Liquids Protection Degree: IPX0
● Safety Degree of Usage in the presence of a Flammable Anaesthetic Mixture with air or with Oxygen or Nitrous Oxide: not suitable for being used in the presence of a flammable anaesthetic mixture with air or with oxygen or nitrous oxide.
●Working Condition: Environment Temp 5℃~40℃, Relative Humidity ≤90°
