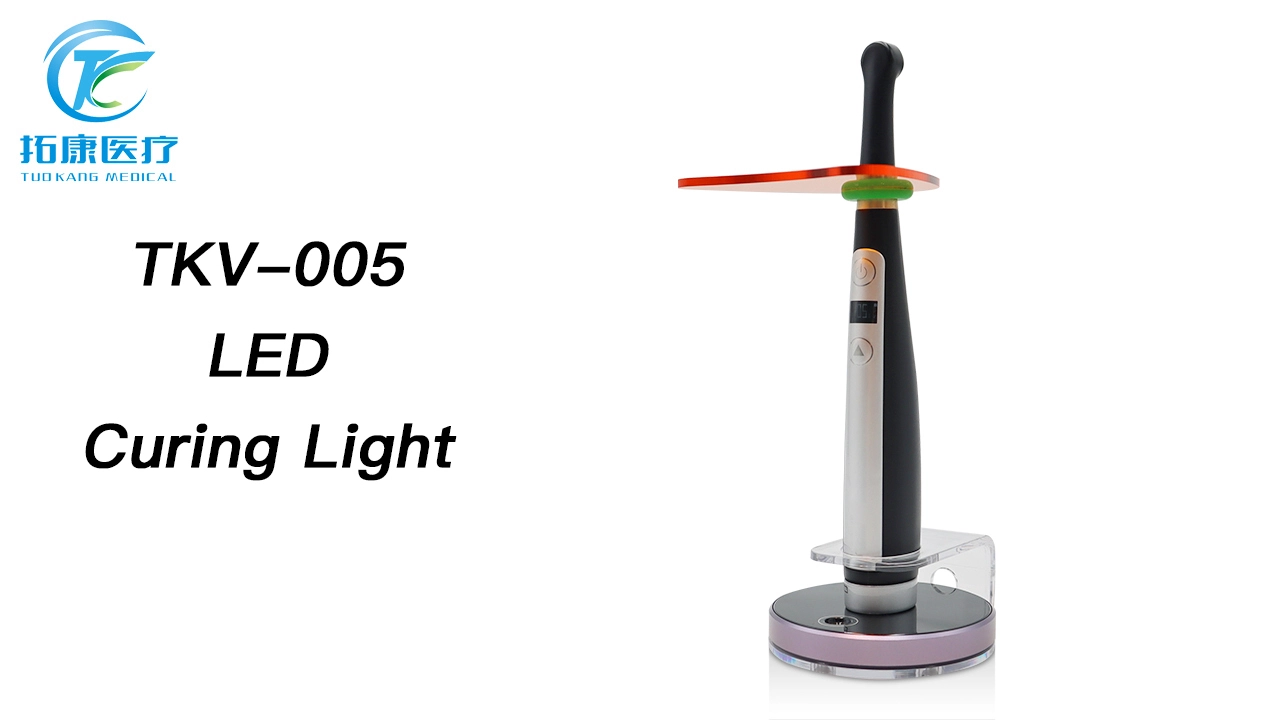

Dental Equipment TKV-005 Wide Spectrum LED Curing Resin Light LED Cure Machine
TKV-005 LED curing light can be effectively reduced chair time due to rapid and deep polymerization on various light cured materials. The powerful Lithium Polymer Battery offers enough storage capacity to perform over 300 ten second cures between charges.
Technical Specifications:
1.Mode: TKV-005
2.Dimensions: 33mm×27mm×206mm
3.Net weight: 160g
4.Power supply:
a) Different power supply.
b) Power supply is rechargeable battery.
c) Rechargeable lithium battery.
d) Standard voltage: 3.7V, capacity: 2200mAh.
e) Battery model: ICR 18650, with protection for overvoltage,
overcurrent and
short-circuits.
5.Power Adapter:
a) Input: AC100-240V 50/60Hz
b) Fuse: T1AL 250V
c) Input power: 5V/1A

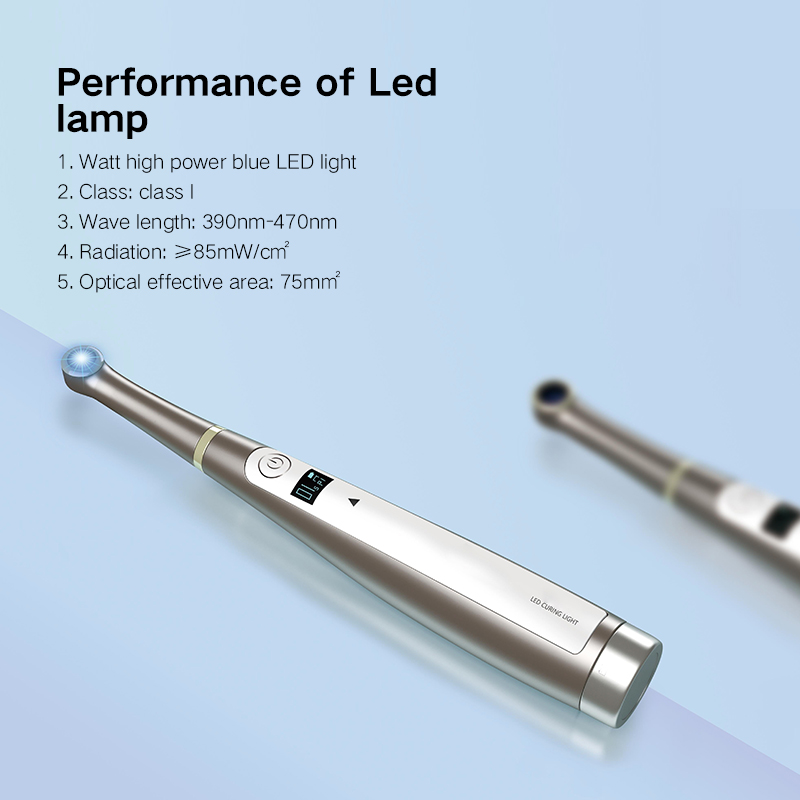

6.Features of LED light:
a) Watt high power blue LED light
b) Class: class l
c) Wave length: 390nm-470nm
d) Checking: LED light works under proper use
e) Radiation: ≥85mW/c㎡
f) Optical effective area: 75m㎡
g) LED Curing Light is applicable to some commonly-used resin based materials in dental clinic, such as 3M, Dentsply etc.
7.Working condition
a) Environment temperature: 5℃~40℃
b) Relative humidity: ≤90%
c) Atmosphere temperature: 75kPa~106kPa

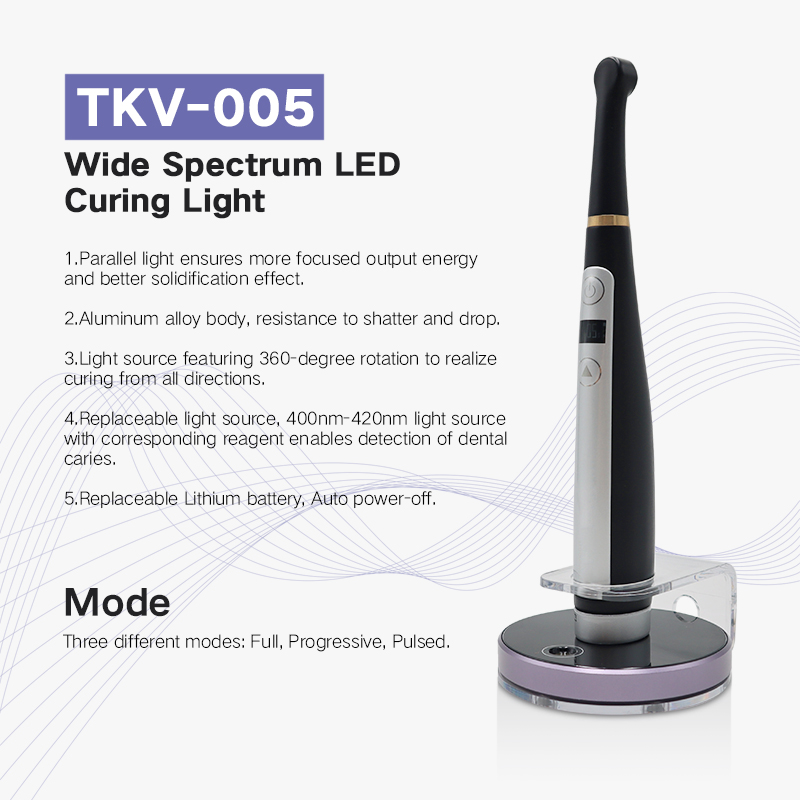

Features：
1. Stable output power guarantees constant light so that the solidification effect is not affected by the consumption of remaining power.
2. Parallel light ensures more focused output energy and better solidification effect.

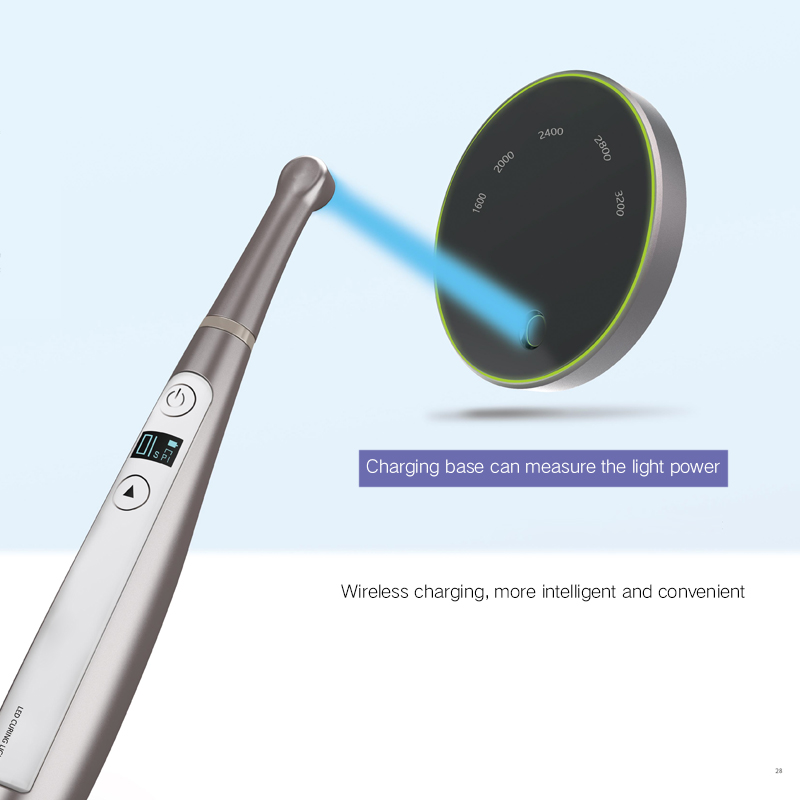

3. Wireless charging corresponding to the standards of wireless charging protocol is available.
4. Super capacity battery. A full charge can be used for more than 500 time continuously under 10s working of P2 mode, from full charge to low-battery alert.
5. Ergonomics design, excellent and comfortable handle feel during the treatment
6. Aluminum alloy body, resistance to shatter and drop.
7. Light source featuring 360-degree rotation to realize curing from all directions.
8. Replaceable light source, 400nm-420nm light source with corresponding reagent enables detection of dental caries.
9. A dedicated whitening roller, shooting teeth whitening gen with blue light to whiten teeth.
10. Charger verifying radiation output of LED light curing device effective or not.
11. Solidified lens fixed on light source, bonded with all-ceramic veneer and adhered to crown and fiber-reinforced composite root canal post to make solidification effect better.
12. Replaceable Lithium battery, Auto power-off.
