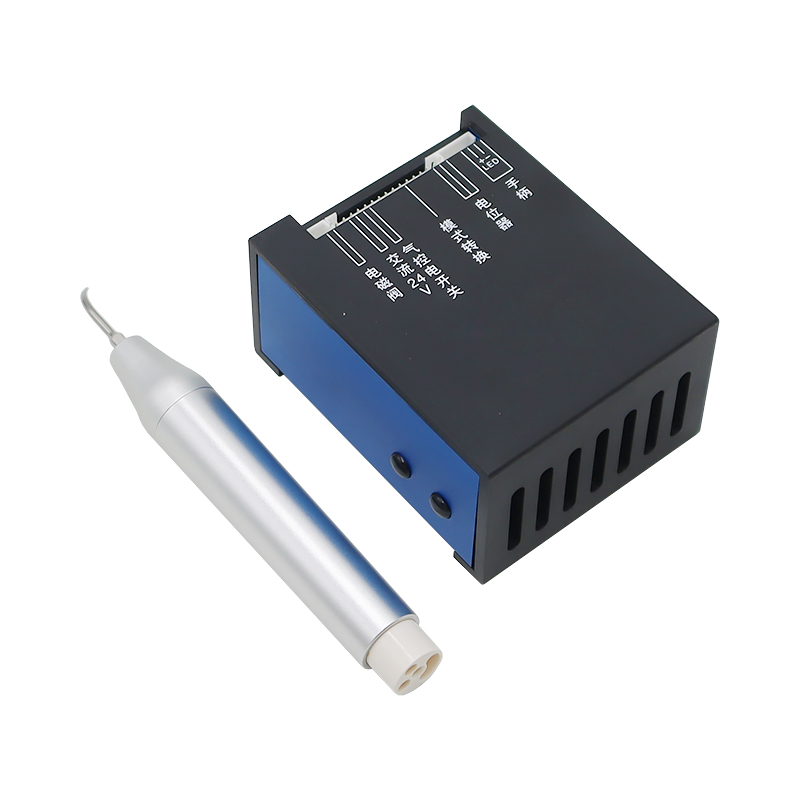

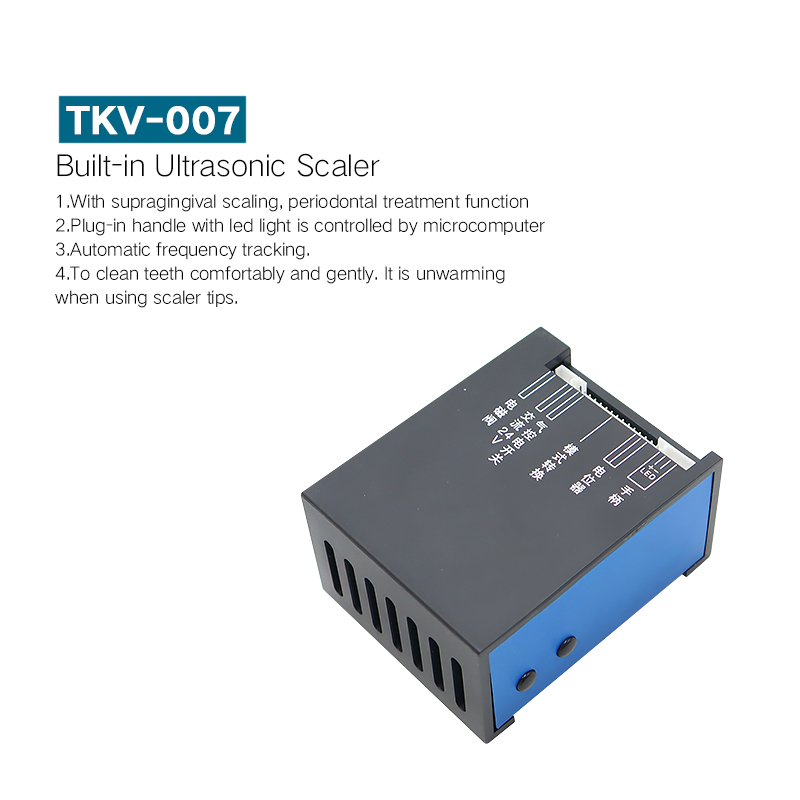

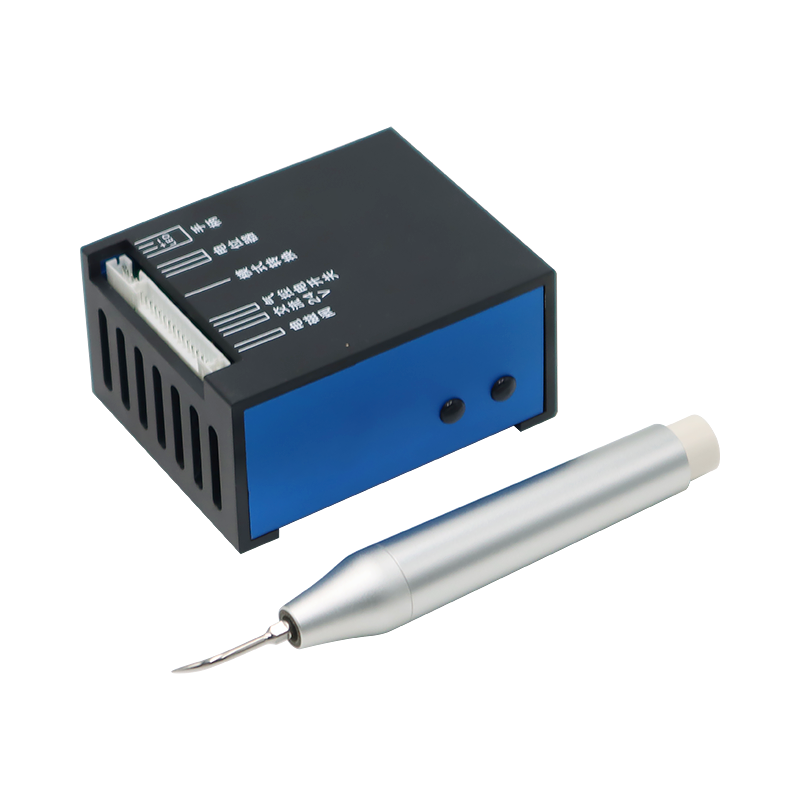

TKV-007 Built-in Type Dental Ultrasonic Handpiece Scaler Dental Tooth Cleaner

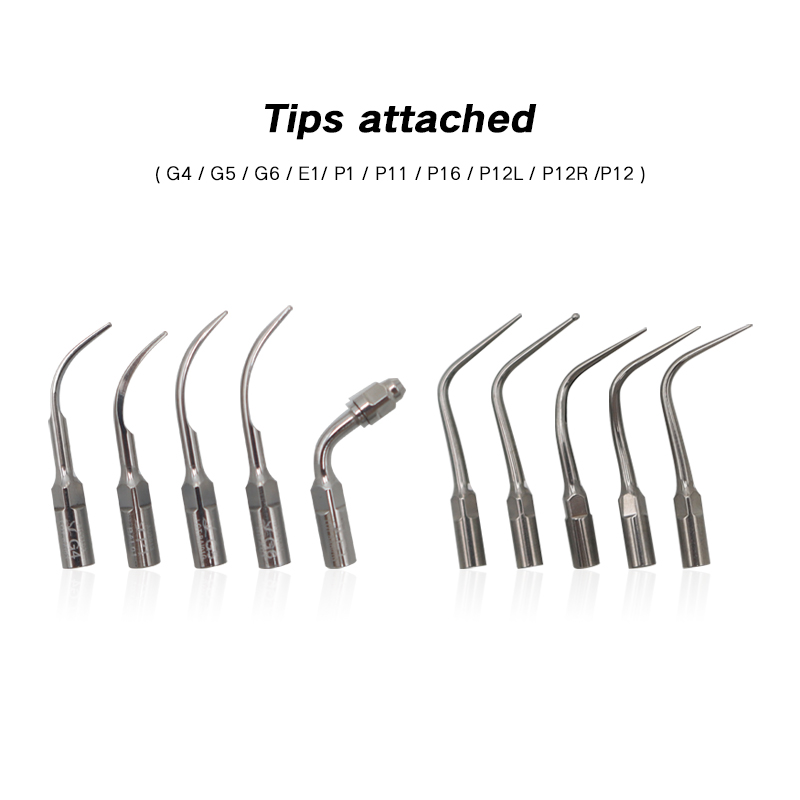

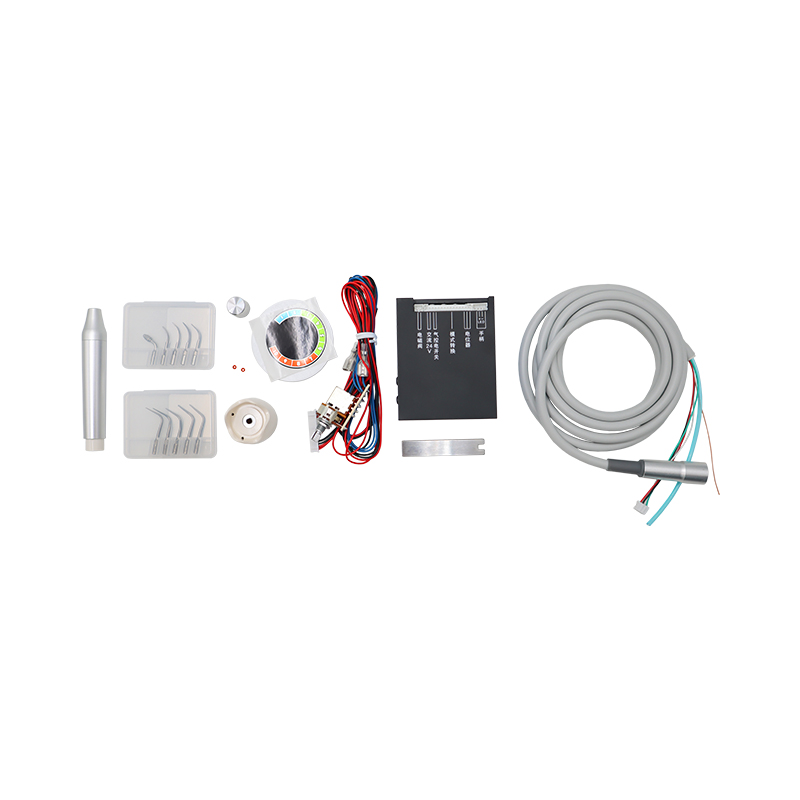

TKV-007 Built-in Ultrasonic Scaler mainly consists of control circuit, handpiece and scaling tips. Its power and water are controlled by the foot switch and the handpiece holder of dental unit. It is mainly used for removing the calculus and stains on teeth surface along with dental units and endo irrigation.
TECHNICAL SPECIFICATIONS
● Power Supply: AC 24V, 50/60Hz
● Input Power: 40VA
● Tip Principal Oscillation Offset: 1μm(min), -50% deviation 100μm(max), +50% deviation
● Half-excursion Force: 0.1N(min), -50% deviation 2N(max), +50% deviation
● Tip Vibration Frequency: 26KHz~33KHz
● Ultrasonic Output Power: 3W~20W
● Weight of Main Unit :0.3kg
● Dimension: 80mm*68mm*36mm
● Operating Mode: Continuous operating
● Electric shock Protection Type: Class II equipment
● Electric Shock Protection Degree: Type B Applied Part
● Liquids Protection Degree: IPX0
● Safety Degree of Usage in the presence of a Flammable Anaesthetic Mixture with air or with Oxygen or Nitrous Oxide: not suitable for being used in the presence of a flammable anaesthetic mixture with air or with oxygen or nitrous oxide
● Working Condition: Environment Temp: 5℃~40℃, Relative Humidity: ≤80%
